Name: Waveshare ESP32-S3 IR Thermal Imaging Camera Module, Type-C Port, 80×62 Pixels, 45° FOV
Brand: WaveShare Electronics
SKU: 30136
Price: 9190.00 INR
Availability: InStock

Waveshare ESP32-S3 IR Thermal Imaging Camera Module, Type-C Port, 80×62 Pixels, 45° FOV

WaveShare Electronics

Waveshare ESP32-S3 IR Thermal Imaging Camera Module, Type-C Port, 80×62 Pixels, 45° FOV

This product qualifies for Free Surface Shipping !

All orders with value above 1999+GST are eligible for free delivery in Surface mode. (Not applicable for B2B offline orders)

Based on 0 reviews. - Write a review

₹9,190.00

₹7,788.14 + 18% GST

All Inclusive, Shipping Calculated at Checkout

Assured Cashback of ₹ 78
B2B GST Credit Available

Price in reward points: 7788

Stock: 5 in Stock
SKU: 30136
Delivery Time
Bulk & B2B RFQ

Add to Cart

Buy Now

Plan to Buy Later ? Add to Wish List

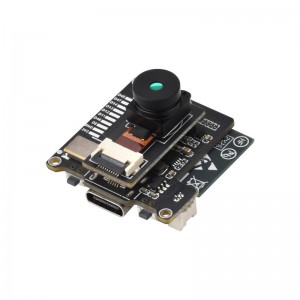

ESP32-S3 IR Thermal Imaging Camera Module, Type-C Port, 80×62 Pixels, 45° FOV

This product is a wireless IR thermal imaging camera based on the ESP32-S3-WROOM-1 chip, adopts the hybrid technology of microbolometer and thermopile pixel, features 80x62 array pixels. It will detect the IR distribution of objects in the field of view, turn the data into the surface temperature of the objects by calculation, and then generate thermal images. It integrates a recharge and discharge circuit, with onboard Lithium battery header for flexible power supply.

User Manual / Datasheet / Example Codes Etc.

Features

Equipped with ESP32-S3-WROOM-1 Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency, offering powerful data processing capabilities
Supports 2.4GHz WiFi (802.11 b/g/n) and Bluetooth 5 (LE), with onboard antenna
Built in 512KB of SRAM and 384KB ROM, with onboard 8MB PSRAM and an external 16MB Flash memory
Type-C connector, enhancing device compatibility and user convenience
Onboard RGB LED indicator for real-time monitoring the operating status of the module
Onboard 3.7V MX1.25 Lithium battery recharge / discharge header for flexible power supply solution, extending device operation time
Onboard 2 × 10 solder pads, including 14 × GPIO, 1 × I2C, and 1 × UART, for external device expansion
Compact size design, more space-saving, making it ideal for embedded applications

Specifications

Operating voltage: 5V
Operating voltage: 127mA@5V
Wavelength range: 8~14μm
Field of View (FOV): 56°(D) × 45°(H) × 34°(V)
Operating temperature: -40℃～85℃
Target Temperature: -40℃～400℃
Detection accuracy: ±2℃
Refresh Rate: 25 FPS(Max)
Due to the influence of WiFi signals, there may be errors in the actual frame rate, subject to the usage environment.
Dimensions: 29.0 × 29.0(mm)

Package Includes

Thermal-90 Camera ESP32 Module x1
USB Type-A to Type-C cable ~1m x1
Screws pack x1

Pin Definition

What's On Board

Dimensions
