Name: ESP32-S3 EC200U 4G LTE Cat-1 WiFi Bluetooth GNSS IoT Smart Modem
Brand: 7Semi
SKU: 07961
Price: 3226.00 INR
Availability: OutOfStock

ESP32-S3 EC200U 4G LTE Cat-1 WiFi Bluetooth GNSS IoT Smart Modem

7Semi

ESP32-S3 EC200U 4G LTE Cat-1 WiFi Bluetooth GNSS IoT Smart Modem

This product qualifies for Free Surface Shipping !

All orders with value above 1999+GST are eligible for free delivery in Surface mode. (Not applicable for B2B offline orders)

Based on 0 reviews. - Write a review

₹3,226.00

₹2,733.90 + 18% GST

All Inclusive, Shipping Calculated at Checkout

Assured Cashback of ₹ 27
B2B GST Credit Available

Price in reward points: 2733

Stock: 0 in Stock
SKU: 07961
Delivery Time
Bulk & B2B RFQ

Buy Now NOTIFY WHEN AVAILABLE

Plan to Buy Later ? Add to Wish List

ESP32-S3 EC200U 4G LTE Cat-1 WiFi Bluetooth GNSS IoT Smart Modem

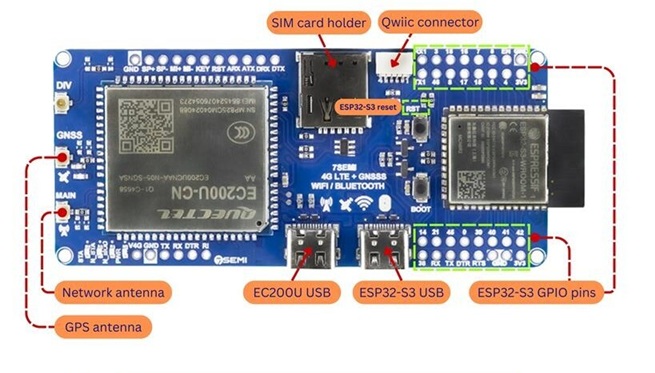

ESP32-S3 EC200U 4G LTE Cat-1 WiFi Bluetooth GNSS IoT Smart Modem is a powerful all-in-one connectivity solution designed for advanced IoT, industrial automation, remote monitoring, asset tracking, and smart city applications. Combining the high-performance ESP32-S3 dual-core processor with the Quectel EC200U-CN 4G LTE Cat-1 modem, this development platform enables seamless cellular, Wi-Fi, Bluetooth, and GNSS communication from a single compact board.

The modem supports 4G LTE Cat-1 connectivity, along with fallback GSM/GPRS networks, ensuring reliable data communication across India and China. Integrated GNSS positioning with support for GPS, GLONASS, BeiDou, Galileo, and QZSS enables accurate location tracking for fleet management, asset monitoring, and telematics applications. The onboard ESP32-S3 provides powerful edge processing capabilities, making it ideal for AIoT, sensor networks, and cloud-connected devices.

User Manual

Key Specifications

ESP32-S3 Dual-Core Xtensa LX7 Processor
Quectel EC200U-CN 4G LTE Cat-1 Modem
2.4GHz Wi-Fi and Bluetooth 5.0 LE
Multi-GNSS Support (GPS, GLONASS, BeiDou, Galileo, QZSS)
LTE-FDD and LTE-TDD Network Support
USB Type-C Interface
Low Power Consumption Modes
MQTT, TCP/IP, HTTP, FTP Protocol Support
UART, SPI, I2C, GPIO Expansion Interfaces
Suitable for IoT, Smart Metering, Asset Tracking, and Industrial Automation Applications

Package Includes

1x 7Semi ESP32-S3 EC200U 4G LTE Cat-1 WiFi Bluetooth GNSS IoT Smart Modem
