Name: EC200U LTE 4G GNSS IoT Smart Modem Onboard STM32 MCU
Brand: 7Semi
SKU: 07968
Price: 2933.00 INR
Availability: OutOfStock

EC200U LTE 4G GNSS IoT Smart Modem Onboard STM32 MCU

7Semi

EC200U LTE 4G GNSS IoT Smart Modem Onboard STM32 MCU

This product qualifies for Free Surface Shipping !

All orders with value above 1999+GST are eligible for free delivery in Surface mode. (Not applicable for B2B offline orders)

Based on 0 reviews. - Write a review

₹2,933.00

₹2,485.59 + 18% GST

All Inclusive, Shipping Calculated at Checkout

Assured Cashback of ₹ 25
B2B GST Credit Available

Price in reward points: 2485

Stock: 0 in Stock
SKU: 07968
Delivery Time
Bulk & B2B RFQ

Buy Now NOTIFY WHEN AVAILABLE

Plan to Buy Later ? Add to Wish List

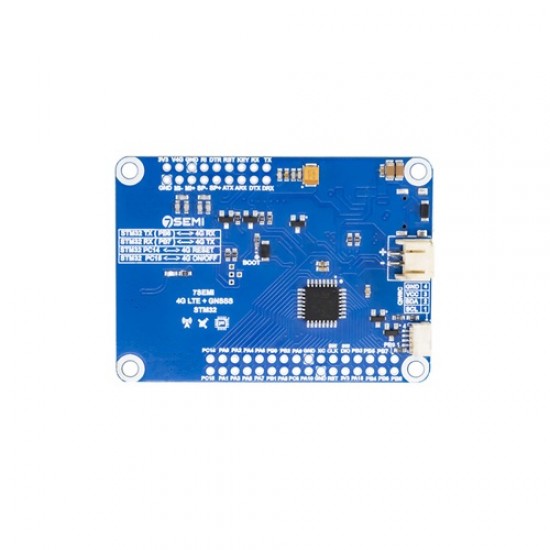

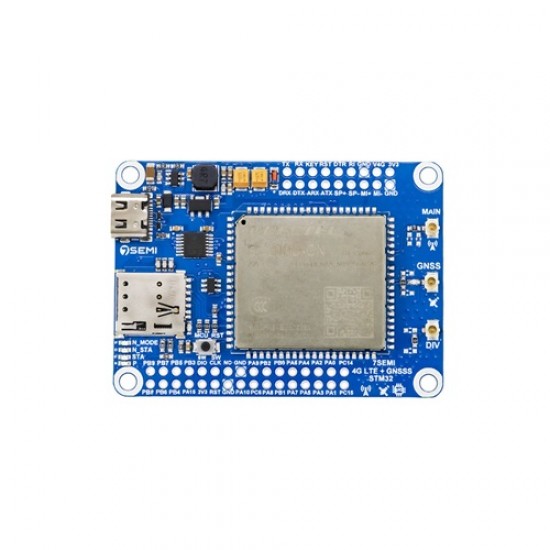

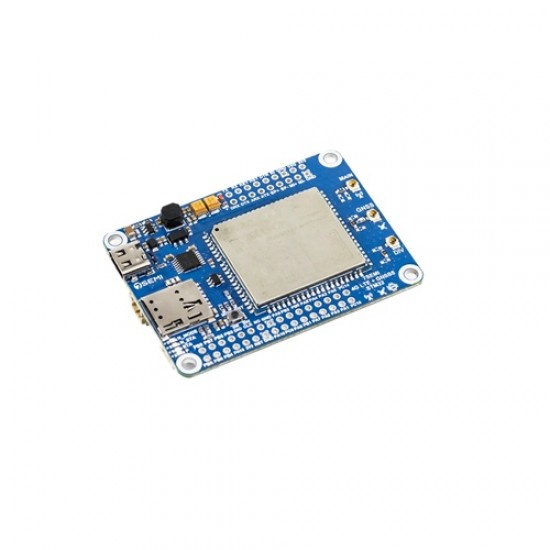

EC200U LTE 4G GNSS IoT Smart Modem Onboard STM32 MCU

The EC200U IoT Smart Modem is a compact and powerful module that gives both internet connectivity and control in one board. It comes with built-in STM32G070KBT6, so you don’t need an extra controller. It supports 4G LTE (with 3G/2G fallback), so you get stable network connection in most areas. The module also supports GNSS like GPS, BeiDou, and GLONASS, so you can get location data easily. It supports USB and UART, making it simple to connect and use. With low power usage and easy setup, it is a good choice for IoT, tracking, automation, and remote monitoring projects.

Datasheet

Features

Built-in STM32G070KBT6: No need for extra controller, saves cost and space.
4G LTE Connectivity: Supports LTE Cat 1 with fallback to 3G and 2G networks.
High-Speed Data: Good speed for IoT and communication applications.
GNSS Support: Works with GPS, BeiDou, and GLONASS for location tracking.
USB & UART Interface: Easy connection for testing and integration.
SIM Card Support: Works with 1.8V / 3V SIM cards.
Low Power Consumption: Suitable for long-running IoT devices.
LED Indicators: Shows power and working status clearly.
Easy to Use: Good for beginners and professionals in IoT projects.

Specifications

Category of product: GNSS Communication Module
Voltage required: 5V Via USB 3.3V Typicaly
LTE-FDD: B1/B3/B5/B8
LTE-TDD: B34/B38/B39/B40/B41
GNSS Support: GPS, GLONASS, BeiDou, Galileo, QZSS
GNSS Band level: L1

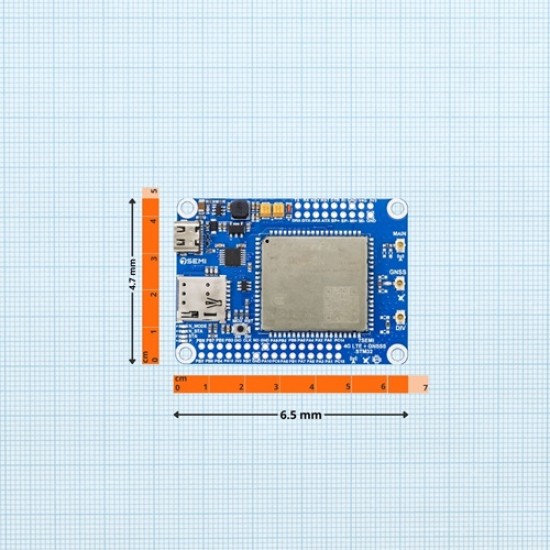

Dimension in mm: L=65mm W=47mm H=10.42mm
Microcontroller used: STM-32 G0

Package Includes

1x 7Semi EC200U LTE 4G GNSS IoT Smart Modem Onboard STM32 MCU
