Name: EC200U QuecPython LTE 4G GNSS Nano Modem, 26V Range
Brand: 7Semi
SKU: 07994
Price: 2715.00 INR
Availability: OutOfStock

EC200U QuecPython LTE 4G GNSS Nano Modem, 26V Range

7Semi

EC200U QuecPython LTE 4G GNSS Nano Modem, 26V Range

This product qualifies for Free Surface Shipping !

All orders with value above 1999+GST are eligible for free delivery in Surface mode. (Not applicable for B2B offline orders)

Based on 0 reviews. - Write a review

₹2,715.00

₹2,300.85 + 18% GST

All Inclusive, Shipping Calculated at Checkout

Assured Cashback of ₹ 23
B2B GST Credit Available

Price in reward points: 2300

Stock: 0 in Stock
SKU: 07994
Delivery Time
Bulk & B2B RFQ

Buy Now NOTIFY WHEN AVAILABLE

Plan to Buy Later ? Add to Wish List

EC200U QuecPython LTE 4G GNSS Nano Modem, 26V Range

The EC200U QuecPython LTE 4G GNSS Nano Modem offers LTE connectivity and GNSS capabilities with a 26V input range, optimized for IoT applications needing reliable data communication and precise positioning. Equipped with QuecPython support, it enables easy programming and integration for advanced IoT solutions, such as asset tracking, environmental monitoring, and smart metering, providing robust connectivity for remote applications.

Datasheet

Features

Ultra-compact Design: Small form factor (35.25x33.5 mm) perfect for space-constrained IoT projects.
QuecPython Support: Integrated runtime environment for MicroPython execution, simplifying IoT development.
Multiple Frequency Bands: Supports LTE-FDD, LTE-TDD, and GSM/GPRS for broad network compatibility.
High Data Rates: Achieves 10Mbps downlink and 5Mbps uplink, ideal for data-heavy applications.
Versatile GNSS Support: GPS, GLONASS, BeiDou, Galileo, QZSS for precise navigation and tracking.
Wide Power Range: Operates with 5V USB or 5-26V external power supply for flexibility in application.
Temperature Tolerance: Reliable performance in harsh environments (-40C to 80C).
Easy Integration: Works standalone with PC/Laptop via micro-USB, no additional hardware required.
Low Power Mode: Supports power management options for energy-efficient applications.

Specifications

VOLTAGE REQUIRED (V): 5V VIA USB TYPE C
LTE BAND SUPPORTED: FDD -: B1/B3/B5/B8 , TDD-: B34/B38/B39/B40/B41
SIM SUPPORT: 4G NETWORK SUPPORTED
GNSS SUPPORT: GPS, GLONASS, BeiDou, Galileo, QZSS
RTK SUPPORT: NA

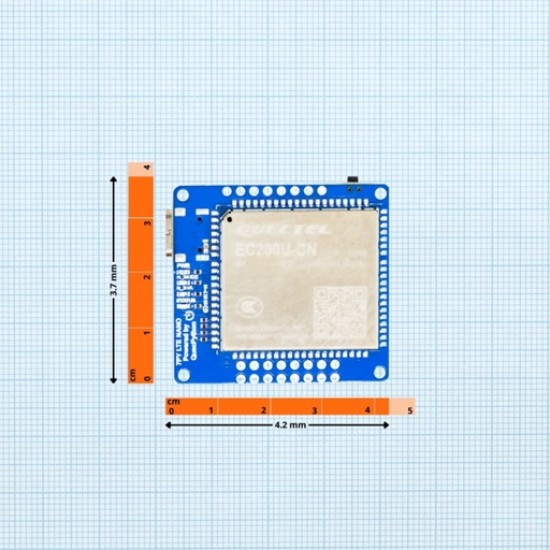

DIMENSION IN mm: 42 x 37 x 8

Package Includes

1x EC200U QuecPython LTE 4G GNSS Nano Modem, 26V Range
