Name: NEO-M9N GPS Breakout, Precision GNSS Positioning
Brand: 7Semi
SKU: 07973
Price: 2167.00 INR
Availability: OutOfStock

NEO-M9N GPS Breakout, Precision GNSS Positioning

7Semi

NEO-M9N GPS Breakout, Precision GNSS Positioning

Based on 0 reviews. - Write a review

₹2,167.00

₹1,836.44 + 18% GST

All Inclusive, Shipping Calculated at Checkout

Assured Cashback of ₹ 18
B2B GST Credit Available

Price in reward points: 1836

Stock: 0 in Stock
SKU: 07973
Delivery Time
Bulk & B2B RFQ

Buy Now NOTIFY WHEN AVAILABLE

Plan to Buy Later ? Add to Wish List

NEO-M9N GPS Breakout, Precision GNSS Positioning

NEO-M9N GPS Breakout is a high-precision GNSS module supporting concurrent reception of up to four GNSS systems: GPS, GLONASS, Galileo, and BeiDou. It offers rapid position updates up to 25 Hz and features a 3.3V power supply with I2C and UART interfaces for seamless integration. Its compact design and low power consumption make it ideal for applications requiring accurate positioning, such as navigation systems and drones.

Datasheet

Features

High-Precision GNSS Receiver: Supports GPS, GLONASS, Galileo, and BeiDou with ~1.5 meter accuracy, ensuring optimal performance in diverse conditions.
Rapid Position Fixes: Onboard rechargeable battery enables a hot start within just 2 seconds, significantly reducing initialization time.
Advanced Security: Detects and reports jamming and spoofing events, providing enhanced protection for critical applications.
Versatile Connectivity: Supports NMEA, UBX, and RTCM protocols over UART or I2C interfaces, offering flexibility in integration.
Software Configurable: Easily customize functions like geofencing, spoofing detection, and more using the Arduino Library or u-center software.
Wide Compatibility: Ideal for use in drones, robotics, and other high-precision positioning applications requiring reliable GNSS data.

Specifications

MODULE:NEO M9N
CONNECTEIVITY:USB TYPE C
OPERATING BAND:GNSS BAND L1/B1/E1
GNSS SUPPORT:GPS, GLONASS, Galileo, BeiDou, QZSS, SBAS
INTERFACE:UART / I2C
OPERATING TEMPRATURE:-40°C to +85°C

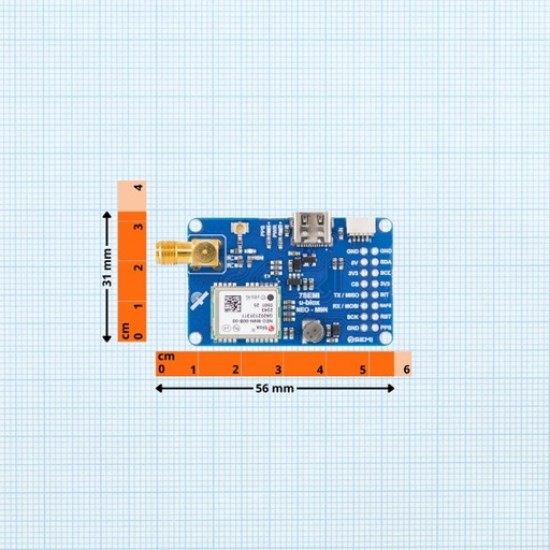

DIMENSION IN MM:L=56mm W=31mm H=13mm
Product Type:GPS

Package Includes

1x 7Semi NEO-M9N GPS Breakout, Precision GNSS Positioning
