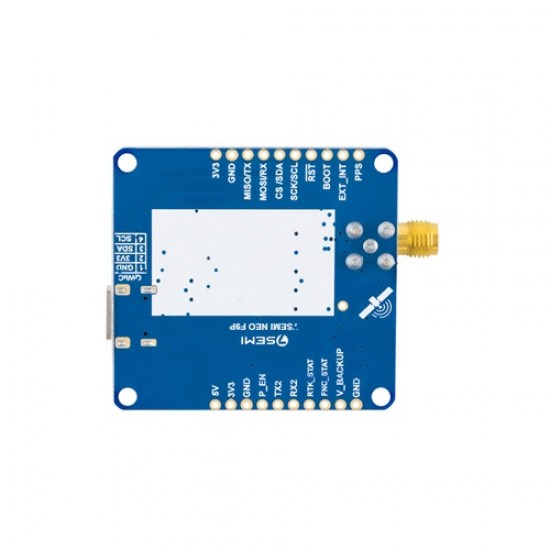

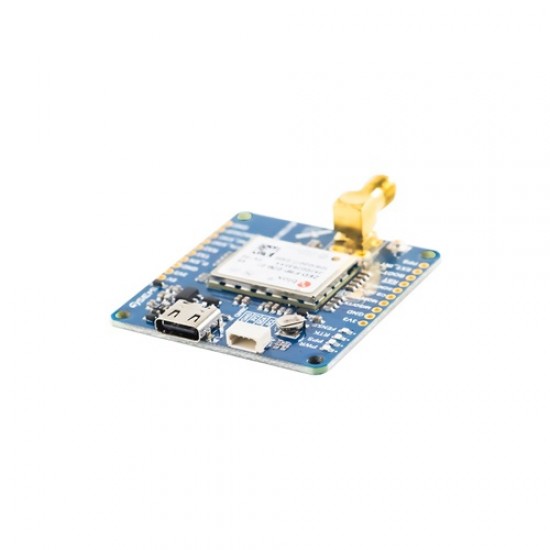

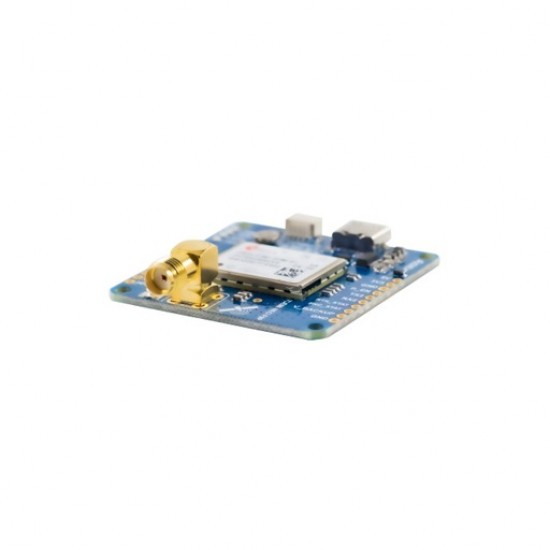

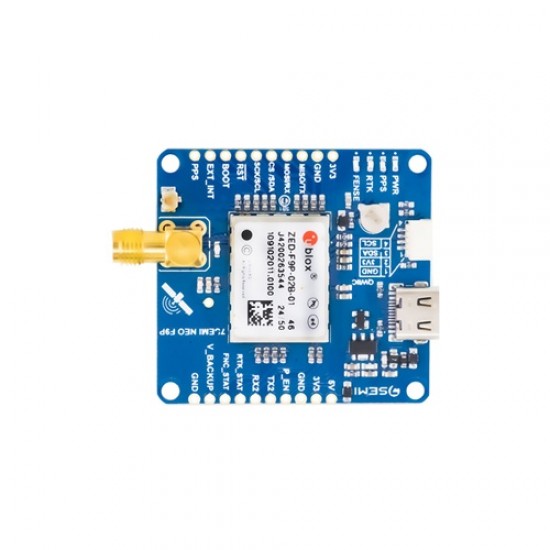

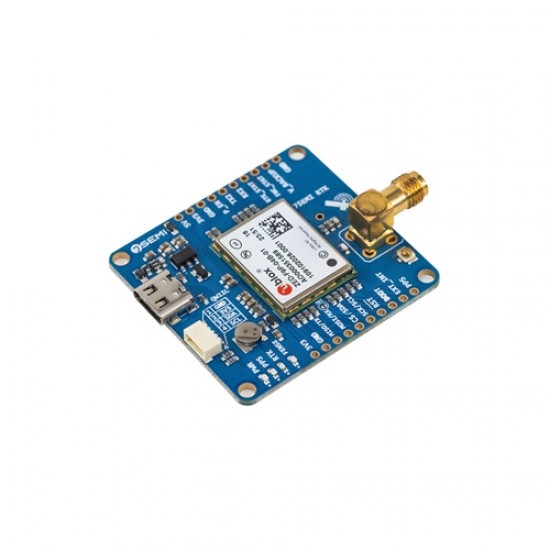

ZED-F9P Dual-band GNSS RTK SMA Modem

ZED-F9P Dual-band GNSS RTK SMA Modem

The 7Semi ZED-F9P Dual-Band GNSS RTK SMA Modem is a state-of-the-art solution designed for applications requiring extreme precision. Built around the u-blox F9 high-accuracy GNSS module, this modem provides centimeter-level positioning, making it ideal for industrial automation, UAV navigation, and real-time kinematics (RTK). With its ability to process multi-band signals from multiple GNSS constellations, it ensures fast, stable, and highly accurate location tracking, even in challenging environments.

Engineered for seamless integration, this modem features PointPerfect technology for enhanced precision and supports moving base functionality, allowing both the base and rover units to remain in motion while maintaining accurate positioning. This makes it particularly suitable for UAVs, automated machinery, and other high-precision applications. Its energy-efficient design and compact form factor enable deployment in various industries, from surveying and robotics to smart agriculture and vehicle tracking.

Datasheet

Features

• Centimeter-Level Accuracy: Dual-band GNSS RTK technology ensures precise real-time positioning for industrial and commercial applications.
• Multi-Constellation Support: Concurrent reception of GPS, GLONASS, Galileo, and BeiDou for enhanced reliability and accuracy.
• Moving Base Functionality: Allows precise navigation and tracking even when both the base and rover are in motion—ideal for UAV and dynamic platform applications.
• Seamless Integration: Equipped with USB-C, UART, I2C, SPI, and Qwiic interfaces for easy connectivity with multiple systems.
• Survey-In Mode: Enables base station functionality with RTCM 3.x correction data generation, ensuring consistent and high-precision measurements.
• Energy-Efficient Design: Low power consumption and compact size make it suitable for embedded and portable applications.
• Customizable Performance: Supports variable update rates up to 20Hz, geofencing, and advanced RTK configurations for maximum flexibility.
• Battery Backup: Integrated coin cell holder retains configurations and satellite data, enabling quick startup and reducing downtime. Enhance Your Precision GNSS Solutions Today: Elevate your industrial and automation projects with the cutting-edge accuracy of the 7Semi ZED-F9P Dual-Band GNSS RTK Modem.

Specifications

• Operating Voltage: 3.3V to 5V
• Communication/Interface: USB/I2C/UART/UART1/SPI
• Dimension: 45.85x42.71 mm
• Weight: 14 Gram
• Accuracy: Accuracy of time pulse signal RMS 99% 30 ns 60 ns
• Dimension in mm: L=53mm W=43mm H=11.55mm

Package Includes

• 1x 7Semi ZED-F9P Dual-band GNSS RTK SMA Modem
