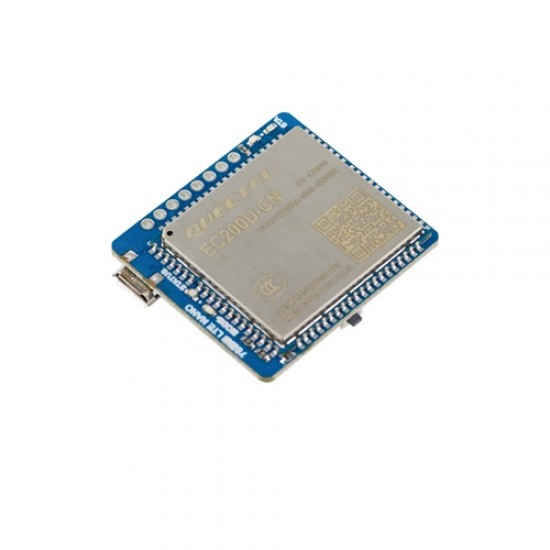

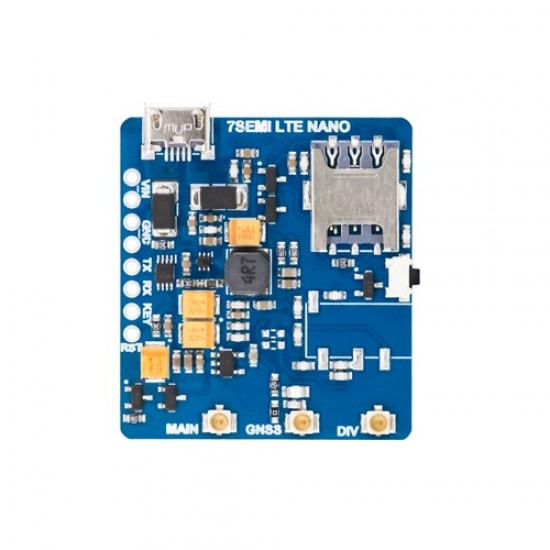

EC200U-CN LTE 4G GNSS Ultra-compact Nano Modem

EC200U-CN LTE 4G GNSS Ultra-compact Nano Modem
EC200U-CN LTE 4G GNSS Ultra-compact Nano Modem
EC200U-CN LTE 4G GNSS Ultra-compact Nano Modem
EC200U-CN LTE 4G GNSS Ultra-compact Nano Modem
EC200U-CN LTE 4G GNSS Ultra-compact Nano Modem
EC200U-CN LTE 4G GNSS Ultra-compact Nano Modem
7Semi
EC200U-CN LTE 4G GNSS Ultra-compact Nano Modem
Based on 0 reviews. - Write a review
₹​2,213.00
₹​1,875.42 + 18% GST
All Inclusive, Shipping Calculated at Checkout
Assured Cashback of ₹ 19
B2B GST Credit Available
Price in reward points: 1875
Buy Now NOTIFY WHEN AVAILABLE
Plan to Buy Later ? Add to Wish List

EC200U-CN LTE 4G GNSS Ultra-compact Nano Modem

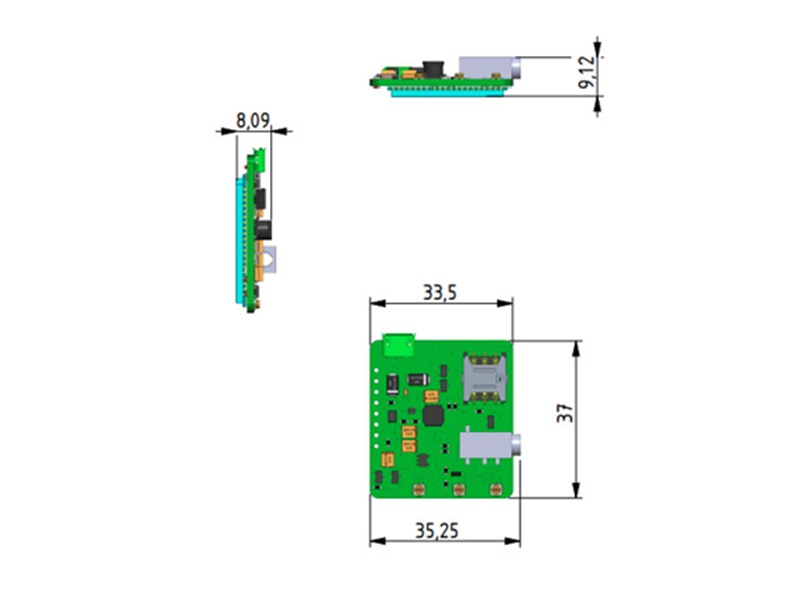

The 7Semis 4G LTE GSM/GPRS GNSS USB Nano Modem stands out as an ultra-compact LTE Modem, measuring just 35.25x33.5 mm. It integrates the EC200U-CN LTE Cat 1 wireless communication module, a product crafted by Quectel. This remarkably compact LTE Modem offers standalone functionality with PC/Laptop connectivity via micro-USB, eliminating the need for any additional attachments. The QuecOpen EC200U series comprises wireless communication modules supporting LTE-FDD, LTE-TDD, and GSM/GPRS network data connections. With versatile applications in automotive, metering, tracking systems, security, routers, wireless POS, mobile computing devices, and more, the EC200U series QuecOpen module caters to a broad spectrum of M2M requirements.

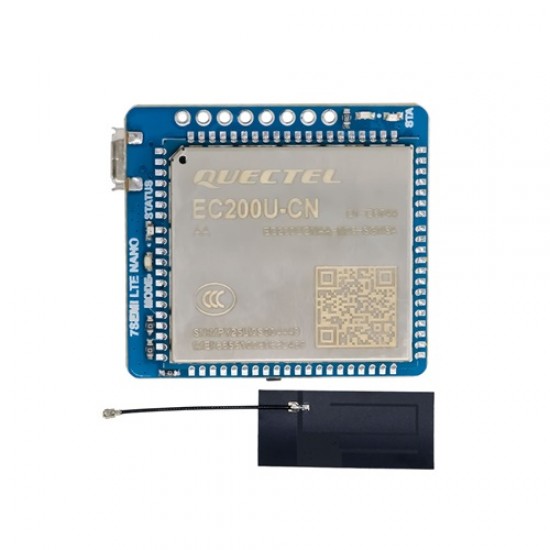

Featuring a broad frequency range of 700-2700MHz, the 4G LTE antenna is suitable for various applications, including BLE & LoRa/RF. Sized at 52mm x 24mm, the antenna comes with a coaxial cable terminating in an IPEX (u.FL equivalent) connector. Its practical design includes a 3M adhesive backing for easy attachment to your project.


Datasheet


Features

  • Power Supply: 5V USB
  • Frequency Bands
    • LTE-FDD B1/B3/B5/B8
    • LTE-TDD B34/B38/B39/B40/B41
    • GSM 900 MHz/1800 MHz
    • GNSS1: GPS, GLONASS, BeiDou, Galileo, QZSS
  • Supports any Nano sim.
  • High-efficiency power regulation.
  • Compatible with worldwide LTE, UMTS/HSPA+ and GSM/GPRS/EDGE coverage with regional or global modules which work with different frequencies & carriers.
  • Delivers 10Mbps downlink and 5Mbps uplink data rates
  • Can be used standalone with PC/Laptop over micro-USB
  • Optional Send/Receive AT commands over Raspberry Pi UART port is available
  • Taking the module into the Airplane Mode, resetting the module or RI and DTR functions can be accessible over GPIO pins.
  • The power of the whole board electronics can be disabled for low-power consumption use cases
  • Working temperature range: -40C ~ 80C.

Antenna Features

    • Frequency range: 700-2700Mhz
    • Gain: 8dBi internal antenna
    • VSWR: <=1.8
    • Input impedance: 50 Ohm
    • Material: Radiator FPC
    • Antenna Size: 52x24mm
    • Cable type: 1.13 coaxial cable
    • Connector style: IPEX (u.FL equivalent)
    • Polarization: Vertical
    • Power: 30w
    • Mounting: 3M sticker


    Package Includes

    • 1x 7Semi EC200U-CN LTE 4G GNSS Ultra-compact Nano Modem
