Texas Instruments TMAG5273EVM 3D Hall-Effect Sensor Evaluation Module

Texas Instruments TMAG5273EVM 3D Hall-Effect Sensor Evaluation Module
Texas Instruments TMAG5273EVM 3D Hall-Effect Sensor Evaluation Module
Texas Instruments TMAG5273EVM 3D Hall-Effect Sensor Evaluation Module
Texas Instruments TMAG5273EVM 3D Hall-Effect Sensor Evaluation Module
Texas Instruments TMAG5273EVM 3D Hall-Effect Sensor Evaluation Module
Texas Instruments TMAG5273EVM 3D Hall-Effect Sensor Evaluation Module
Texas Instruments TMAG5273EVM 3D Hall-Effect Sensor Evaluation Module
Texas Instruments TMAG5273EVM 3D Hall-Effect Sensor Evaluation Module
Texas Instruments
Texas Instruments TMAG5273EVM 3D Hall-Effect Sensor Evaluation Module

This product qualifies for Free Surface Shipping !

All orders with value above 1999+GST are eligible for free delivery in Surface mode. (Not applicable for B2B offline orders)
Based on 0 reviews. - Write a review
₹​9,780.00
₹​8,288.14 + 18% GST
All Inclusive, Shipping Calculated at Checkout
Assured Cashback of ₹ 83
B2B GST Credit Available
Price in reward points: 8288
Buy Now NOTIFY WHEN AVAILABLE
Plan to Buy Later ? Add to Wish List

Texas Instruments TMAG5273EVM 3D Hall-Effect Sensor Evaluation Module

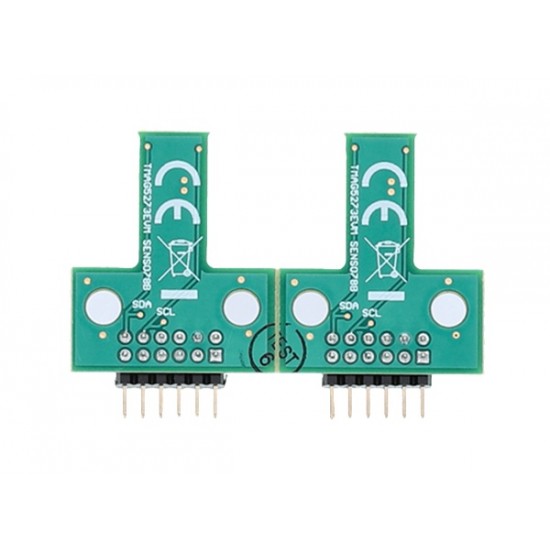

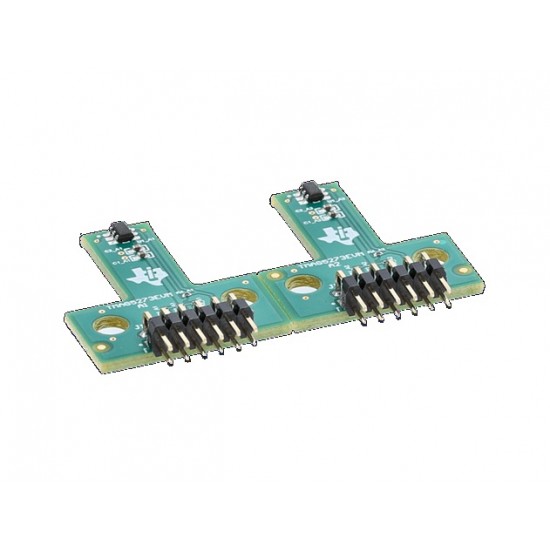

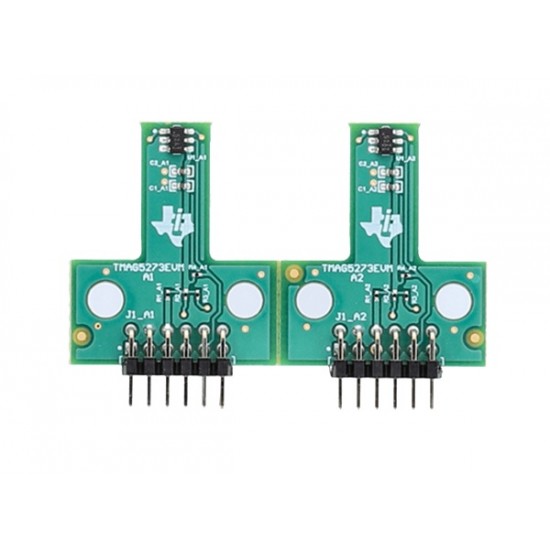

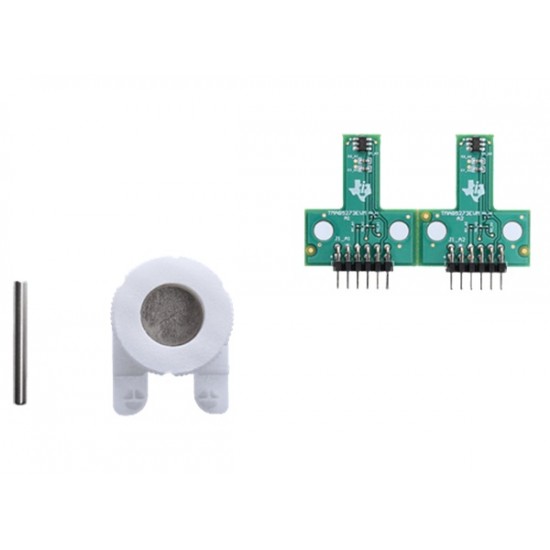

The TMAG5273EVM is an easy-to-use platform to evaluate the main features and performance of the TMAG5273 device, which is a linear 3D Hall-effect sensor. The evaluation module (EVM) includes one magnet and a TMAG5273 daughter board. The EVM works with a sensor controller board (sold separately), TI-SCB, which enables the accompanying graphical user interface (GUI). Also included is a 3D printed rotate-and-push module to test the common functions of angle measurement and push button with a single device.


Datasheet


Features

  • Easy-to-use platform to evaluate the main features and performance of the TMAG5273
  • Includes a GUI to read and write registers, and to view and save measurement results
  • Also includes a 3D-printed rotate-and-push module to test the common functions of angle measurement and push button with a single device


Applications

  • Rotary encoder systems
  • Contactless position sensing
  • Knob and dial position detection
  • Joystick position sensing
  • Linear displacement measurement
  • Push-button detection using magnetic sensing
  • Industrial automation controls
  • Human-machine interfaces (HMI)
  • Robotics motion sensing
  • Appliance control panels
  • Automotive selector knobs and controls
  • Smart home magnetic sensing systems
  • 3D motion tracking
  • Proximity and presence detection
  • Battery-powered sensor applications


Package Includes

  • 1x TMAG5273EVM 3D Hall-Effect Sensor Evaluation Module
