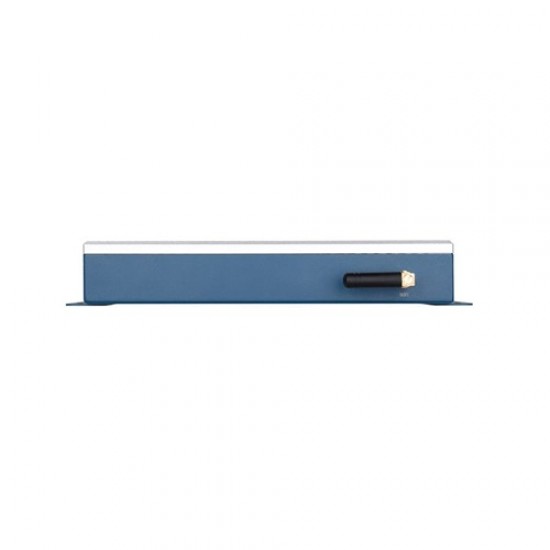

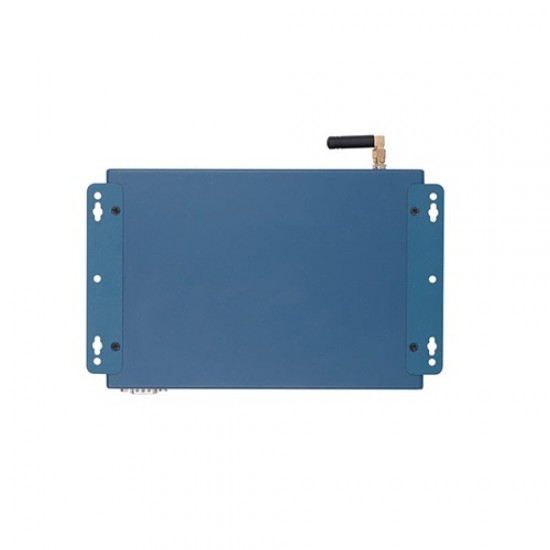

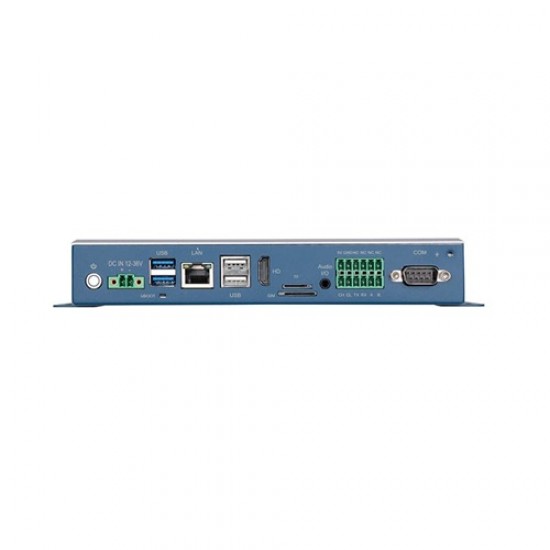

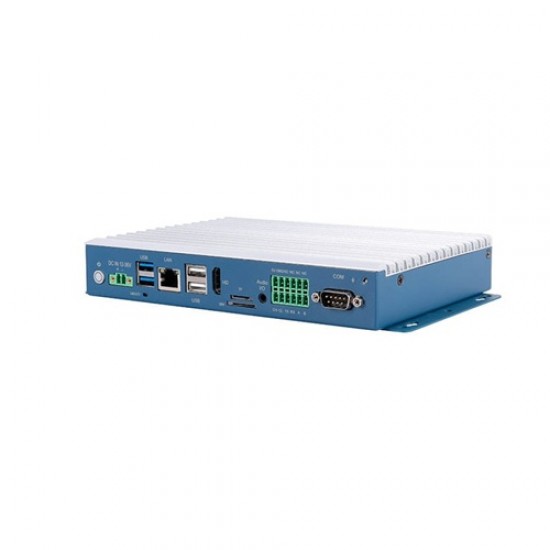

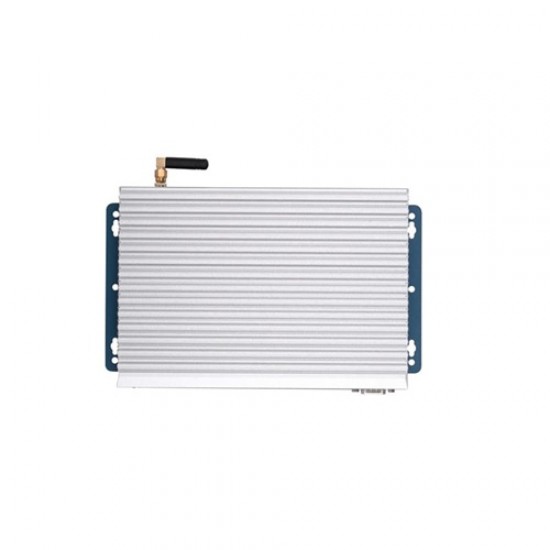

TouchThink TPC08–AIOT 2GB LPDDR4 Ram + 32GB eMMC RK3568 Based Fanless Ultra Thin Industrial Computer 1Tops NPU with 4K HD Visualization Capabilities
The Z series device adopts an all-metal structure with a fanless, fully enclosed design. The whole machine features low power consumption and a compact form, specifically designed as an industrial product for a variety of environments. It ensures stable long-term operation even in harsh environments. In terms of materials used, we focus more on reliability, environmental adaptability, real-time performance, scalability, and EMC compatibility. The configuration uses the high-performance, low-power CX3568-A Android series product with a 22nm advanced process. It features a 4-core 64-bit Cortex-A55 architecture with a clock speed of up to 2.0GHz. It also includes an independent NPU with 1TOPS AI computing power, supporting lightweight applications.
Features
- High-precision full aluminum alloy body, exquisite texture
- ARM architecture industrial-grade motherboard, suitable for various complex application environments.
- RK3568 quad-core 64-bit 2.0GHz CPU with built-in NPU, providing 1TOPS AI computing power.
- Rich interfaces, flexible expansion, easy installation.
- Powerful open-source nature, breaking application limitations, supporting secondary development.
Specifications
- CPU: RK-3568 Quad-core 64bits Cortex-A55 Architecture，Frequency up to 2.0GHz
- GPU: ARM Mali-G52 2EE
- NPU: 1Tops AI computing
- RAM: 2GB LPDDR4(4GB/8GB，8GB at maximum)
- Storage: 32GB EMMC(64GB/128GB/256GB optional)
- WIFI: Wifi6 Built-in 2.4G/5G
- Bluetooth: BT5.3
- OS: Android12/14/Linux5.10/ubuntu20.04/ubuntu22.04/debian11
- Decoding Resolution: 4K/60Hz
- 3G/4G: PCI-E standard interface, supports mobile, China Unicom, and China Telecom (optional).
- Network Support: 4G, Ethernet, supports Wi-Fi/Bluetooth, and wireless peripheral expansion.
- Power Switch: 1 x Power switch
- Power Port: 3.81-2P Phoenix terminal, supports wide voltage power supply from 12V to 36V (optional upgrade to DC 2.0*1).
- Phoenix Terminals: Standard configuration with 3.5-12P Phoenix terminal (2321/4851/CAN1/NC4). 232/485 are interchangeable, and NC*4 supports upgrade to custom interfaces.
- USB: 2USB 3.0 (one supports OTG), 2USB 2.0 (optional upgrade to Gigabit RJ45), optional upgrade to 6 USB 2.0 ports.
- Audio Interface: 1*Audio I/O, supports audio input and output, headphone jack: 3.5mm standard interface.
- SIM Card: 1*SIM, standard SIM card interface, supports various standards (depending on the 3G/4G module).
- TF Card: Supports TF expansion card (1*TF card slot).
- GPS: External GPS (optional).
- Serial Port: Standard configuration with 1DB9 232 serial port (232/TTL interchangeable), optional upgrade to 4232 serial ports.
- Others: Optional upgrade to 3RS485, 2TTL, optional 1*CAN, optional support for 12 GPIOs, and 1 AD input.
- Working Temperature: -20°C ~ 70°C
- Storage Temperature: -30 °C ~ 80 °C
- Relative Humidity: 95% non-condensing
- Power Input: 12V-36V Power Input
- Power Adapter: 12V/2.5A (3.81-2P phoenix terminal)
- Enclosure Material: Aluminum Alloy
- Enclosure Color: Silver + Blue
- Net weight: 1.0Kg
- Gross Weight: 1.37Kg
- Installation Methods: Desktop and Rack Mount
- Warranty Policy: 3 Years(1 year free maintenance)
Package Includes
- 1x TPC08–AIOT 2GB LPDDR4 Ram + 32GB eMMC RK3568 Based Fanless Ultra Thin Industrial Computer 1Tops NPU with 4K HD Visualization Capabilities
