Name: Waveshare USB to RS485 (D) Industrial Grade Isolated Bidirectional Converter, 2m Length, FT232RNL Chip, Onboard Isolated RS485 Transceiver Circuit, Adopts RJ45 Port With T568B Pinout
Brand: WaveShare Electronics
SKU: 35209
Price: 1299.00 INR
Availability: OutOfStock

Waveshare USB to RS485 (D) Industrial Grade Isolated Bidirectional Converter, 2m Length, FT232RNL Chip, Onboard Isolated RS485 Transceiver Circuit, Adopts RJ45 Port With T568B Pinout

New

WaveShare Electronics

Waveshare USB to RS485 (D) Industrial Grade Isolated Bidirectional Converter, 2m Length, FT232RNL Chip, Onboard Isolated RS485 Transceiver Circuit, Adopts RJ45 Port With T568B Pinout

Based on 0 reviews. - Write a review

₹1,299.00

₹1,100.85 + 18% GST

All Inclusive, Shipping Calculated at Checkout

Assured Cashback of ₹ 11
B2B GST Credit Available

Price in reward points: 1100

Stock: 0 in Stock
SKU: 35209
Delivery Time
Bulk & B2B RFQ

Buy Now NOTIFY WHEN AVAILABLE

Plan to Buy Later ? Add to Wish List

Waveshare USB to RS485 (D) Industrial Grade Isolated Bidirectional Converter, 2m Length, FT232RNL Chip, Onboard Isolated RS485 Transceiver Circuit, Adopts RJ45 Port With T568B Pinout

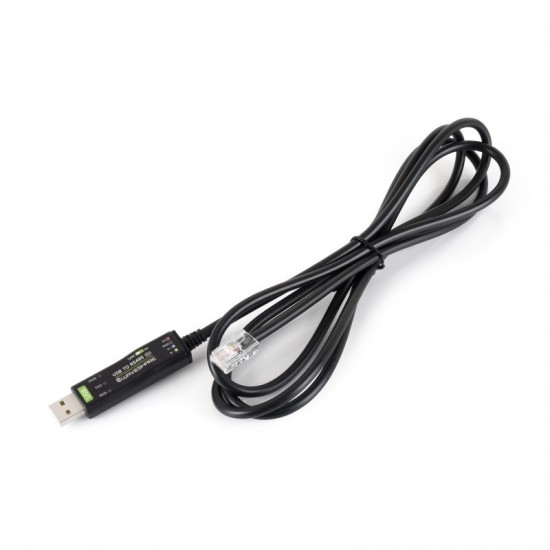

Industrial grade isolated USB to RJ45 single-channel RS485 converter with original FT232RNL chip. Onboard isolated RS485 transceiver circuit, adopts an RJ45 port with T568B pinout, and a 2m cable for stable and reliable communication, suitable for industrial control equipment, instrumentation, access control and security, PLC communication, and other applications.

User Manual / Datasheet / Example Codes Etc.

Features

Supports USB to RJ45 single-channel RS485 bidirectional communication, featuring a plug-and-play USB-A port and an RJ45 port, easy to use
Features original FT232RNL chip, enabling high-speed, stable, and reliable communication with mature drivers and excellent compatibility
Onboard isolated RS485 transceiver, integrated signal isolation and isolated power supply, effectively improving communication stability and anti-interference capabilities in industrial environments
Onboard TVS / ESD protection components, providing transient surge and ESD protection for both the USB and RS485 ports, making it suitable for complex electromagnetic environments
Onboard multiple resettable fuses, protection diodes, and 120R termination resistor, effectively suppressing over-current and over-voltage surges for enhanced bus communication stability

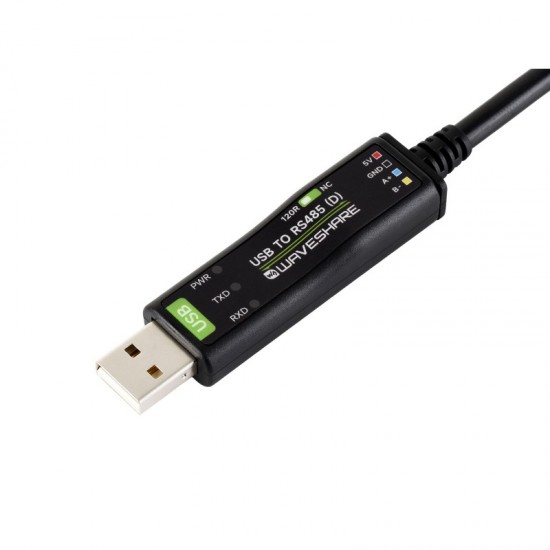

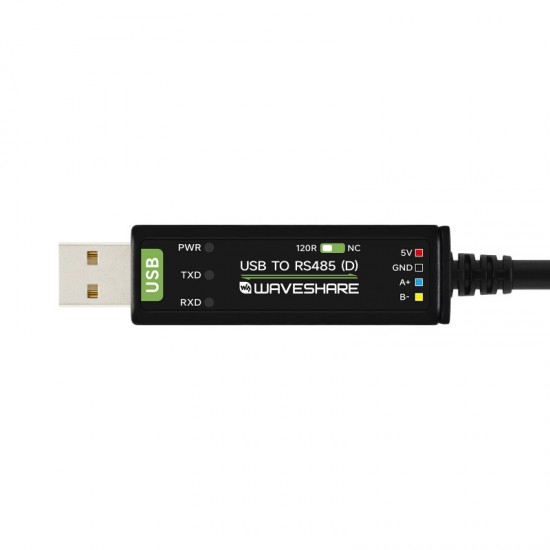

Onboard 3 LEDs for indicating the power and transceiver status

Specifications

PRODUCT TYPE: Industrial grade isolated USB to RJ45 single-channel RS485 converter
Baud rate: 300bps ~ 512000bps
Host port: USB
Device port: RJ45 single-channel RS485
USB
Operating voltage: 5V
Connector: USB-A port
Protection: Over-current protection, ESD protection, and transient surge suppression
Transmission distance: Approx. 5m
RS485
Connector: RJ45 port with T568B pinout
Pins: 1=A1, 2=B1, 3=NC, 4=5V, 5=5V, 6=NC, 7=GND, 8=GND
Direction control: Hardware automatic control
Protection: Surge suppression, ESD protection, over-current/over-voltage protection, reverse surge protection, and bus matching optimization capability
Isolation solution: Isolated RS485 transceiver, integrated signal isolation and isolated power supply
Channel: Single-channel RS485
Transmission distance: Approx. 1.2km (low rate, with ideal cable)
Transmission mode: Point-to-multipoints (up to 32 nodes, it is recommended to use repeaters for 16 nodes or more)
LED indicators
PWR: Red power indicator, lights up when there is USB connection and voltage is detected
TXD: Red TX indicator, lights up when the USB port sends data
RXD: Red RX indicator, lights up when the device port sends data back
Operating environment
Temperature: -40℃ ~ 85℃
Humidity: 5%RH ~ 95%RH
Operating system: Mac, Linux, Android, WinCE, Windows 11 / 10 / 8.1 / 8 / 7 / XP
Cable: Black, PVC jacket, 2m length
