Name: Waveshare USB To RS485 (E) Industrial-grade Isolated Bidirectional Converter, Onboard FT232RNL Chip, Isolated RS485 Transceiver Circuit And RJ45 Port With T568B Pinout
Brand: WaveShare Electronics
SKU: 35226
Price: 1249.00 INR
Availability: OutOfStock

Waveshare USB To RS485 (E) Industrial-grade Isolated Bidirectional Converter, Onboard FT232RNL Chip, Isolated RS485 Transceiver Circuit And RJ45 Port With T568B Pinout

New

WaveShare Electronics

Waveshare USB To RS485 (E) Industrial-grade Isolated Bidirectional Converter, Onboard FT232RNL Chip, Isolated RS485 Transceiver Circuit And RJ45 Port With T568B Pinout

Based on 0 reviews. - Write a review

₹1,249.00

₹1,058.47 + 18% GST

All Inclusive, Shipping Calculated at Checkout

Assured Cashback of ₹ 11
B2B GST Credit Available

Price in reward points: 1058

Stock: 0 in Stock
SKU: 35226
Delivery Time
Bulk & B2B RFQ

Buy Now NOTIFY WHEN AVAILABLE

Plan to Buy Later ? Add to Wish List

Waveshare USB To RS485 (E) Industrial-grade Isolated Bidirectional Converter, Onboard FT232RNL Chip, Isolated RS485 Transceiver Circuit And RJ45 Port With T568B Pinout

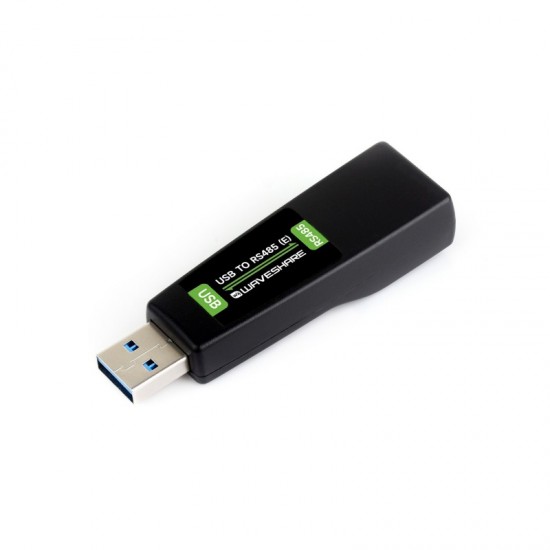

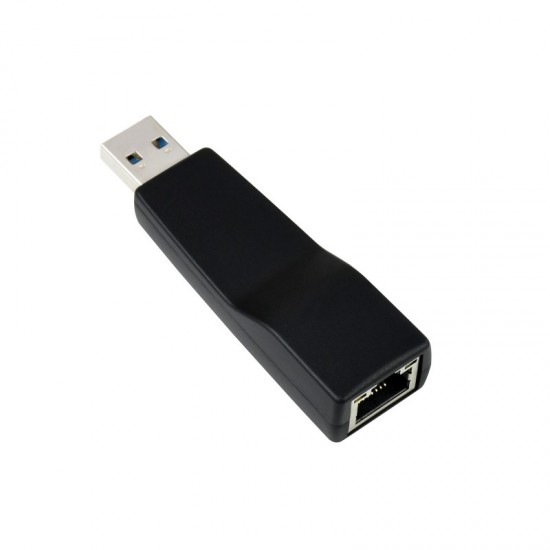

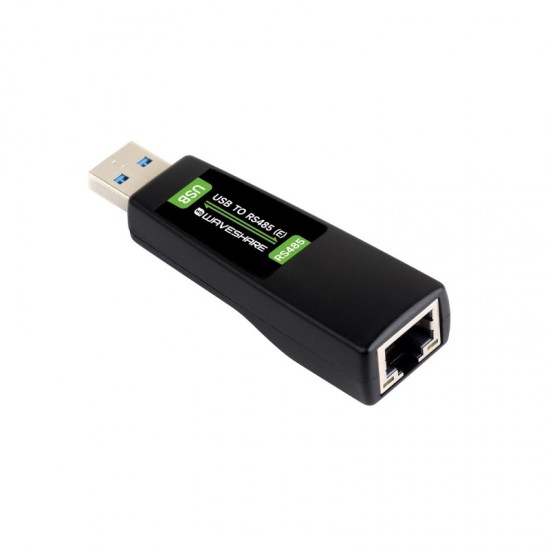

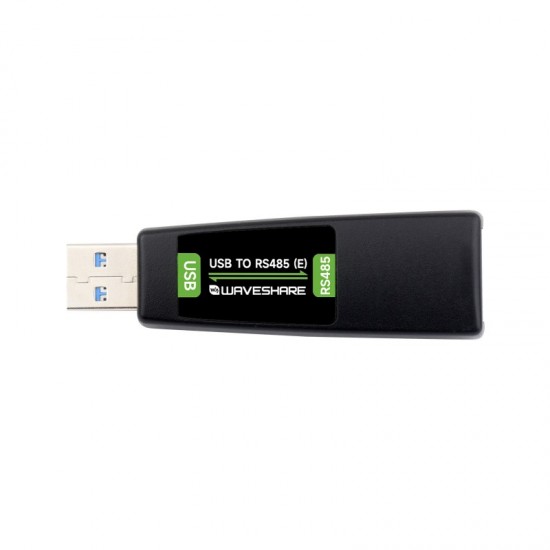

This is an industrial-grade, isolated USB to RJ45 single-channel RS485 converter featuring the original FT232RNL chip. Onboard isolated RS485 transceiver circuit, adopts an RJ45 port with T568B pinout, for stable and reliable communication, suitable for industrial control equipment, instrumentation, access control and security, PLC communication, and other applications.

User Manual / Datasheet / Example Codes Etc.

Features

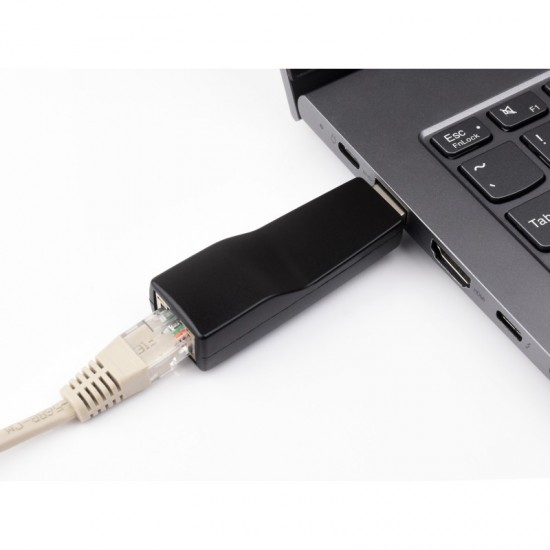

Supports USB-to-RJ45 single-channel RS485 bidirectional communication, featuring a plug-and-play USB-A port and an RJ45 port, easy to use
Features original FT232RNL chip, enabling high-speed, stable, and reliable communication with mature drivers and excellent compatibility

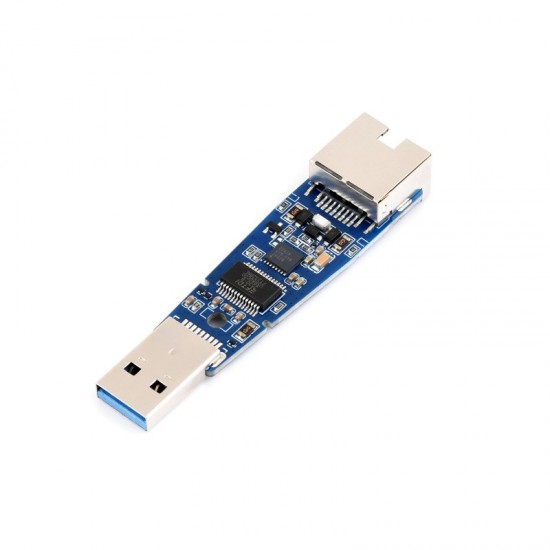

Onboard isolated RS485 transceiver with integrated signal and power supply isolation, effectively improving communication stability and anti-interference capabilities in industrial environments
Onboard TVS / ESD protection components, providing transient surge and ESD protection for both the USB and RS485 ports, making it suitable for complex electromagnetic environments
Onboard multiple resettable fuses, protection diodes, and a 120R terminal resistor, effectively suppressing over-current and over-voltage surges for enhanced bus communication stability
Onboard 2 LEDs for indicating the signal transceiver status

Specifications

PRODUCT TYPE: Industrial grade isolated USB to RJ45 single-channel RS485 converter
Baud rate: 300bps ~ 512,000bps
Host port: USB
Device port: RJ45 single-channel RS485
USB

Operating voltage: 5V
Connector: USB-A port
Interface Protection: Over-current protection, ESD protection, and transient surge suppression
Transmission distance: Approx. 5m

RS485

Connector: RJ45 port with T568B pinout
Pins: 1=A, 2=B, 3=NC, 4=5V, 5=5V, 6=NC, 7=GND, 8=GND
Direction control: Hardware automatic control
Interface Protection: Surge suppression, ESD protection, over-current/over-voltage protection, reverse surge protection, and bus matching optimization capability
Isolation solution: Isolated RS485 transceiver, integrated signal and power supply isolation
Channel: Single-channel RS485
Transmission distance: Approx. 1.2km (low rate, with ideal cables)
Transmission mode: Point-to-multipoints (up to 32 nodes, it is recommended to use repeaters for 16 nodes or more)

LED indicators

TXD TX Indicator: Green LED flashes when the USB port sends data
RXD RX Indicator: Yellow LED flashes when the device port sends data back

Operating environment

Temperature: -40℃ ~ 85℃
Humidity: 5%RH ~ 95%RH

Operating system: Mac, Linux, Android, WinCE, Windows 11 / 10 / 8.1 / 8 / 7 / XP
