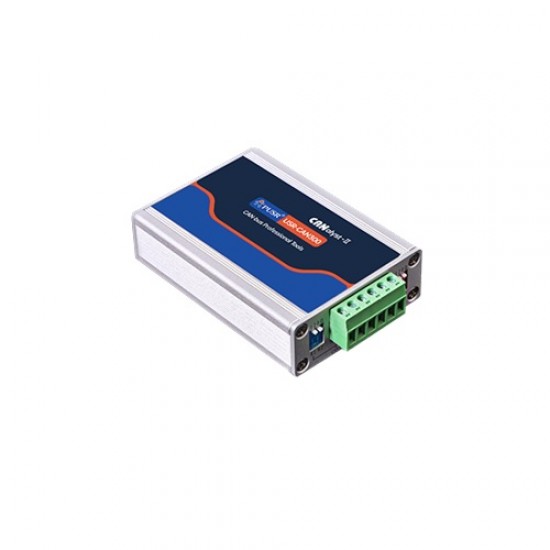

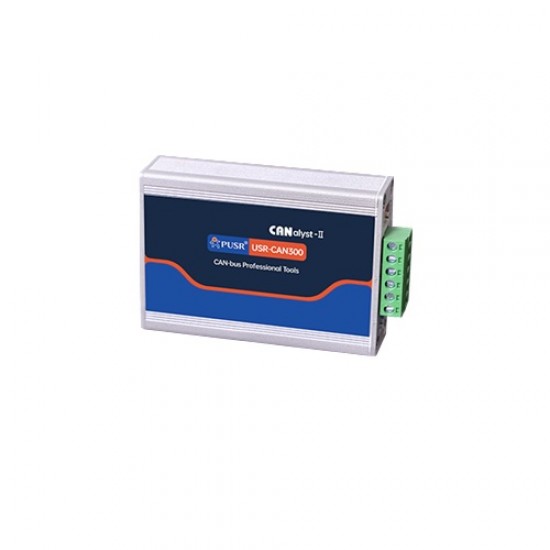

USR CAN300 Industrial Grade 2-CH USB to CAN Adapter - Dual-Channel CAN Analyzer - Supports Windows Systems
The USR CAN300 is an industrial-grade 2-channel USB to CAN adapter designed for reliable CAN bus communication, monitoring, testing, and analysis. It provides two independent CAN channels, allowing users to connect and analyze multiple CAN networks simultaneously from a Windows computer.
Built for industrial applications, the CAN300 offers stable USB-to-CAN communication and supports CAN bus data transmission, reception, monitoring, and debugging. Its dual-channel design makes it suitable for automotive diagnostics, industrial automation, CAN network development, equipment testing, and embedded system applications.
Specifications
- working voltage: The USB bus operates directly without requiring an external power supply。Voltage: 4.5V-5.5V, Current: 100mA-200mA

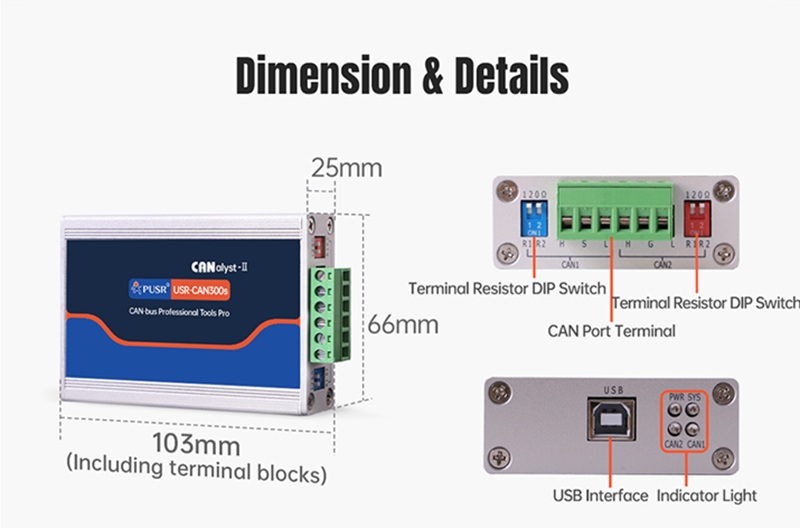

- size: 103*66*25mm
- pilot lamp: PWR、SYS、CAN1、CAN2
- USB port: The USB interface supports USB 3.0 and USB 2.0, and is compatible with USB 1.1 and OTG standards.
- CAN port: Two CAN ports supporting CAN2.0A and CAN2.0B protocols, with compatibility for both standard and extended frames.
- CAN port baud rate: The speed range is 10Kbps to 1Mbps, configurable via software.
- terminal resistance
- Each CAN port is equipped with two CAN bus 120Ω terminal resistors.
- Connect the resistor via dial code control by setting any digit to ON, then connect a 120Ω resistor in parallel.
- Set both dial switches to ON and connect two 120-ohm resistors in parallel.
- working temperature: -20~85℃
- Working humidity: 5%～95% RH (no condensation)
- Isolation performance: The CAN bus interface employs high-speed signal isolation and isolated DC-DC power supply; USB, CAN1, and CAN2 ports are completely isolated from each other.
- Isolation voltage: Insulation voltage of isolation module: 2500VDC
- basic function: Supports protocol conversion between USB and CAN bus, enabling CAN bus data analysis, network data acquisition, error diagnosis, and real-time monitoring.
- Protocol parsing: Supports high-level protocols including CANopen, J1939, DeviceNET, and ISO 15765.
- Secondary development: Supports C++Builder, C#, Visual C++, VB, VB.NET, Delphi, LABVIEW, LabWindows/CVI, and Matlab for developing custom applications.

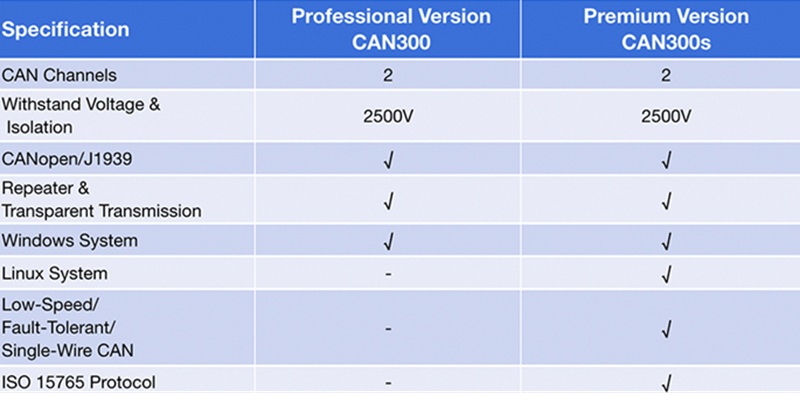

- support system: Professional Edition CAN300: Compatible with Windows systems.
- Other features: CAN relay and transparent transmission; the top-tier version supports fault tolerance and single-wire CAN communication.
Package Includes
- 1x USR CAN300 Industrial Grade 2-CH USB to CAN Adapter - Dual-Channel CAN Analyzer - Supports Windows Systems
