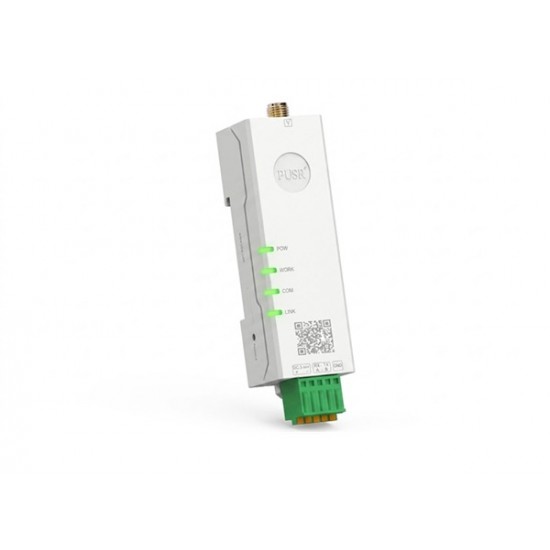

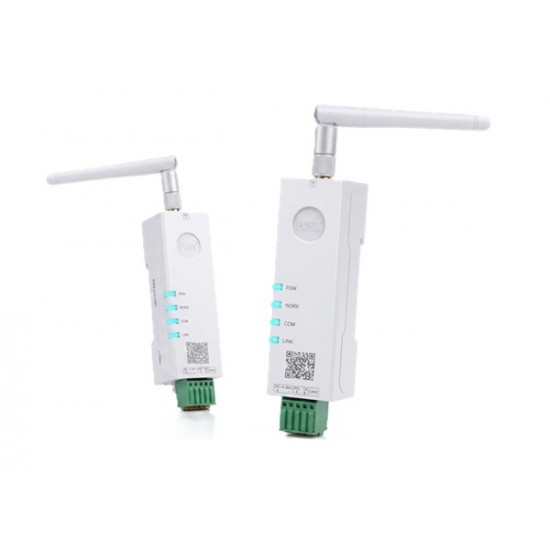

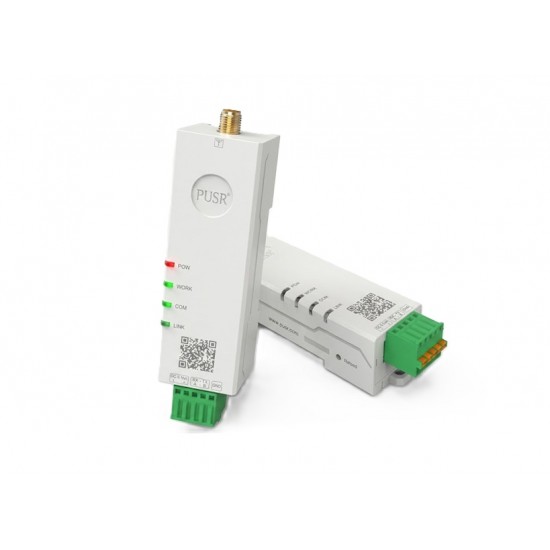

USR-DR162 2.4/5.8GHz Dual Band RS232 to Wi-Fi Converter - Din Rail Mount
The USR-DR162 2.4/5.8GHz Dual Band RS232 to Wi-Fi Converter is an industrial-grade serial device server designed to connect RS232 devices to wireless Wi-Fi networks. With dual-band 2.4GHz and 5.8GHz Wi-Fi support, it enables stable, high-speed wireless communication for industrial automation, smart factories, SCADA systems, PLC communication, remote monitoring, and IoT applications. Its compact DIN rail mount design, wide voltage input range, and industrial protection features make it suitable for harsh industrial environments.
The USR-DR162 supports transparent serial-to-Wi-Fi data transmission and allows legacy RS232 devices to communicate over TCP/IP networks without changing existing hardware. It supports multiple networking protocols including TCP, UDP, HTTP, MQTT, and Modbus RTU to Modbus TCP conversion, making integration with cloud platforms, industrial gateways, and monitoring systems easy and reliable. The device supports AP, STA, and AP+STA Wi-Fi modes, allowing flexible deployment in industrial networks.
Features
- Dual-band Wi-Fi support: 2.4GHz and 5.8GHz
- RS232 to Wi-Fi transparent data transmission
- IEEE 802.11 a/b/g/n wireless standards support
- Supports AP, STA, and AP+STA working modes
- Built-in Modbus RTU to Modbus TCP gateway
- Supports TCP, UDP, HTTP, MQTT, and IGMP protocols
- DIN rail mounting for industrial installations
- Wide DC power input range: 5V to 36V
- Industrial-grade operating temperature: -40°C to +85°C
- ESD, EFT, and over-voltage protection
- Dual watchdog design for stable operation
- Web interface, AT commands, and mobile app configuration
- Compact “lipstick” style enclosure for space-saving installations
- Supports cloud connectivity and remote monitoring
Specifications
- Power Supply: DC: 5-36V, 2-pin push-type connector
- Working Current: 170-350mA@5V
- Serial port
- USR-DR162:1 x RS232,
- 3-pin push-type connector.
- Baud rates: 1200-460800 bps
- Data bits: 5, 6, 7, 8
- Stop bits: 1, 2
- Parity: NONE, ODD, EVEN, Mark, Space
- Packaging Interval: Range: 10 ~ 1000ms, default: 20ms
- Packaging Length: Range: 32 ~ 1400 bytes, default: 1400 bytes
- Pull-up Resistor: 2.2 KΩ(Only USR-DR164)
- Protection: ESD, EFT, over-voltage protection
- Wi-Fi
- Standards & Frequency: IEEE 802.11a/b/g/n
- 2.4G: 2.412GHz-2.484GHz
- 5.8G: 5.17GHz-5.25GHz, 5.725GHz-5.835GHz
- Working Mode: AP/STA/AP+STA
- Tx power
- 2.4G:
- 802.11b: +17±1.5dBm(@11Mbps)
- 802.11g: +14±1.5dBm(@54Mbps)
- 802.11n: +14±1.5dBm(@HT20， MCS7)
- 5.8G:
- 15±1.5dBm (OFDM 6Mbps)
- 13±1.5dBm (OFDM 54Mbps)
- 12±1.5dBm (HT20 MCS7)
- 12±1.5dBm (HT40 MCS7)
- Receive sensitivity
- 2.4G:
- 802.11b:-95 dBm (@1Mbps ,CCK)
- 802.11b:-85 dBm (@11Mbps ,CCK)
- 802.11g:-72 dBm (@54Mbps, OFDM)
- 802.11n:-70dBm (@HT20, MCS7)
- 802.11n:-67dBm (@HT40, MCS7)
- 5.8G:
- -90dBm (@6Mbps ,OFDM)
- -73dBm (@54Mbps ,OFDM)
- -70 dBm (HT20,MCS7)
- -67 dBm (HT40,MCS7)
- Antenna: SMA female connector
- Physical Property
- Casing material: ABS, V0 rating
- Dimensions: 92 * 24 *22mm(including terminal block connector)
- Installation: DIN rail mounting
- Operating temperature: -40℃～+85℃
- Storage temperature: -40℃～+125℃
- Operating humidity: 5% ~ 95% RH, non-condensing
- Storage humidity: 1% ~ 95% RH, non-condensing
- Software Function
- Work mode: TCP Client, TCP server, UDP client, UDP server, HTTP client, MQTT client, IGMP
- Modbus Gateway: Modbus RTU/TCP protocol conversion
- IP: DHCP/StaticIP
- WiFi Encryption: WEP/WPA-PSK/WPA2-PSK
- Encryption Methods: WEP64/WEP128/TKIP/AES
- IOT PLATFORMS: PUSR cloud
- User Configuring: Web console(HTTP), AT command, SmartAPLink
- Others
- Reset: Reset button
- 1>Press and hold for 4~15 to reset to factory settings
- 2>Quickly ouble-tap to enter SmartAPLink for networking
- Indicators: Power, Work, COM, LINK
- APPROVALS
- Regulatory: CE/RED*, RoHS*, WEEE*, FCC*
Package Includes
- 1x DR162 2.4/5.8GHz Dual Band RS232 to Wi-Fi Converter - Din Rail Mount
