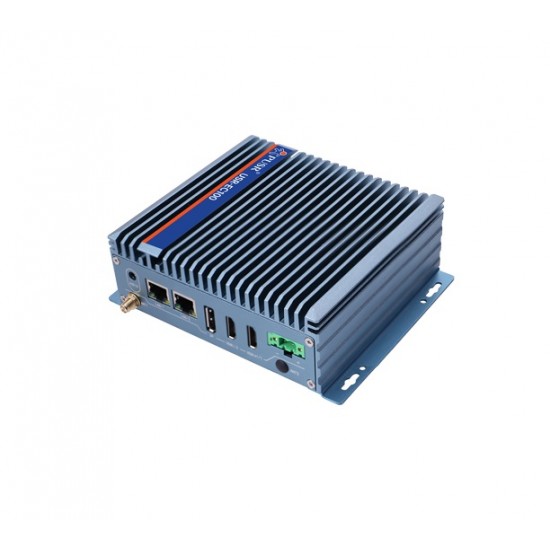

USR-EC100 X86 Industrial Grade Mini Computer - 8GB LPDDR4 RAM + 128GB Storage - Based On Intel J6412 12th Gen Processor - Windows 11 Pro Preinstalled

USR-EC100 X86 Industrial Grade Mini Computer - 8GB LPDDR4 RAM + 128GB Storage - Based On Intel J6412 12th Gen Processor - Multi System Compatibility Windows / Linux / Ubuntu

The USR-EC100 X86 is a powerful and compact industrial mini computer designed for demanding edge applications, automation systems, and embedded environments. Powered by the Intel® Core™ J6412 12th Gen processor, this device delivers reliable x86 performance with low power consumption, making it ideal for continuous 24/7 industrial operation.

Equipped with 8GB LPDDR4 RAM and 128GB onboard storage, the EC100 ensures smooth multitasking, fast application response, and stable system performance. Its fanless, space-efficient design allows it to fit seamlessly into control panels, kiosks, machine cabinets, digital signage setups, and other tight industrial locations.

With multi-system compatibility, including Windows, Linux, and Ubuntu, the EC100 offers excellent flexibility for developers, integrators, and industrial users. This wide OS support ensures seamless integration with existing software platforms, SCADA systems, edge computing frameworks, and custom applications — without the need for code migration or reconfiguration.

Built for real-world industrial use, the USR-EC100 X86 provides stable operation, durable hardware, and high reliability — making it a perfect choice for automation, IoT gateways, HMIs, edge computing nodes, and compact workstation deployments.

Datasheet

Features

• 12th generation J6412 design, Intel core, 4-core 4-thread CPU, 2GHz main frequency
• 8G DDR4 +128G storage, flexible selection of different capacity configuration
• 2*LAN，2*RS232/RS485，4*USB3.0
• 2*HDMI，4K HD Display，Support synchronous/asynchronous dual-screen display content
• Multi - system Compatibility(Windows / Linux / Ubuntu ); Note:Windows system is standard configuration
• Full aluminum alloy , fanless cooling

Specifications

• Processor
• CPU Intel® Celeron J6412 (Atom/Core 12th Gen )
• BIOS: AMI UEFI 64M bit
• Memory
• Architecture: DDR4 SO-DIMM
• Memory: 8GB (Single SO-DIMM Slot, maximum support 16GB)

• Storage
• Storage: 128G
• interface: MiniPcie

• Display
• HDMI: 2*HDMI OUT (4K)
• DP: 1*DP
• VGA: None
• Dual display: Supports synchronous/asynchronous display

• Ethernet: LAN: 2*RJ45,2*RJ45 Realtek 1Gbps

• Audio: Interface: 1*Line-out  1*Mic-in

• I/O

• Serial: 2*RS232/RS485（DB9）
• USB: 4*USB 3.0
• WatchDog: 255-level programmable settings

• Expansion slot
• MiniPCle: 2*MiniPcie（one with 128GB SSD pre-installed）
• SSD: 1*MSATA

• Operating system: Windows

• Power
• Input Voltage: DC 12V
• Minimum Input Power: 12V/3A

• Power consumption
• No-load: 15W
• Full-load: Depends on CPU, total power not exceeding 100W

• Mechanical parameters
• Enclosure: Full aluminum enclosure
• Installation mode: Desktop mounting, DIN rail mounting, embedded mounting

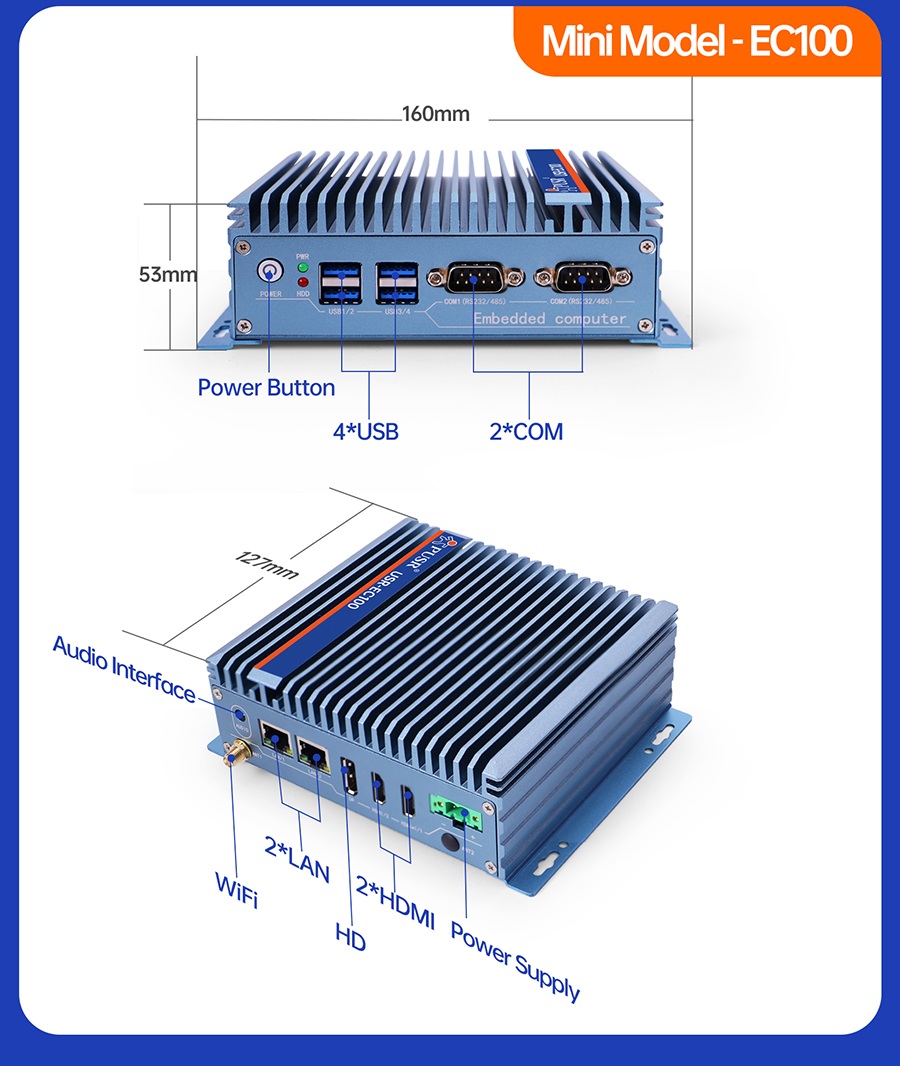

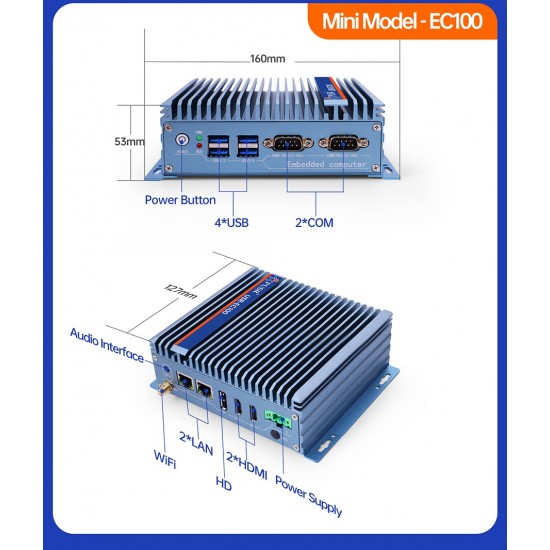

• Dimensions: 159.6mm*127.0mm*53.2mm
• Weight: 1.2kg

• Enviromental parameter
• Operating temperature: -20~60°C(with wide-temperature SSD)
• Storage temperature: -40°C~85°C
• Relative humidity: 5~95%(non-condensing)
• Vibration during operation: SSD:5~500Hz, 2Grms operation
• Shock during operation: Operation:10G@11MS  Non-operation:30G@11ms
• ESD: Contact 6KV, Air 8KV

Package Includes

• 1x USR-EC100
• 1x Power Adapter with Power Terminal
• 1x WiFi Antenna
