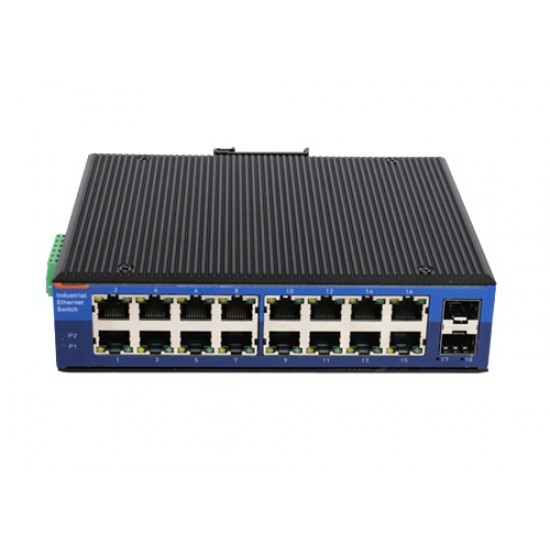

Name: USR-ISF216-SFP Industrial Grade 18-Port Gigabit Ethernet Switch - 16 Copper ETH Ports + 2 SFP ETH Ports - Layer 2 Managed - DC 12-52V
Brand: USR IoT
SKU: 08554
Price: 14714.00 INR
Availability: OutOfStock

USR-ISF216-SFP Industrial Grade 18-Port Gigabit Ethernet Switch - 16 Copper ETH Ports + 2 SFP ETH Ports - Layer 2 Managed - DC 12-52V

New

USR IoT

USR-ISF216-SFP Industrial Grade 18-Port Gigabit Ethernet Switch - 16 Copper ETH Ports + 2 SFP ETH Ports - Layer 2 Managed - DC 12-52V

This product qualifies for Free Surface Shipping !

All orders with value above 1999+GST are eligible for free delivery in Surface mode. (Not applicable for B2B offline orders)

Based on 0 reviews. - Write a review

₹14,714.00

₹12,469.49 + 18% GST

All Inclusive, Shipping Calculated at Checkout

Assured Cashback of ₹ 125
B2B GST Credit Available

Price in reward points: 12469

Stock: 0 in Stock
SKU: 08554
Delivery Time
Bulk & B2B RFQ

Buy Now NOTIFY WHEN AVAILABLE

Plan to Buy Later ? Add to Wish List

USR-ISF216-SFP Industrial Grade 18-Port Gigabit Ethernet Switch - 16 Copper ETH Ports + 2 SFP ETH Ports - Layer 2 Managed - DC 12-52V

USR-ISG216P-SFP an hardened 18-port Industrial PoE Switch, provides non-blocking wire-speed performance in harsh industrial environment. It also provides 16-port 10/100/1000BASE-TX RJ45 PoE +2G SFP delivered in an IP40 rugged, strong case with redundant power system. Its slim case is suitable for such applications as surveillance system deployments, control management and wireless service in climatically demanding environments with wide temperature range from -40℃ to 85℃.

The USR-ISG216P-SFP provides the flexibility to all kinds of 10/100/1000Mbps Ethernet Media on RJ-45 port and performshighly stable fiber performance.

The USR-ISG216P-SFP is packaged in a compact IP40 case with DIN rail installation.It offers dual-redundant, reversible polarity 48V

DC to 57V DC power supply inputs for high availability applications requiring dual or backup power inputs.

Datasheet

Specifications

Model No: USR-ISG216P-SFP
10/100/1000Base-TX Port: 16-Port RJ-45 auto-MDI / MDI-X
PoE

PoE Standard: IEEE802.3af/ IEEE802.3at
PoE ports:1-16 port
Power Output:
Max. 15.4 watts (IEEE 802.3af)
Max. 30 watts (IEEE 802.3at)
PoE port Auto detect af/at devices
Output Voltage: DC48V
1000Base-FX Port: 2G SFP Slot

Performance

Bandwidth: 56Gbps
Packet Buffer Memory: 12Mbit
Packet Forwarding Rate: 41.7Mpps
MAC Address Table: 8K

Installation: DIN rail
Maximum Frame Size: 10240bytes packet size
Flow Control: Back pressure for half duplex, IEEE 802.3x pause frame for full duplex
Enclosure: IP40 Aluminum housing
LED Indicator

Power: Red
Run: Green
Fiber: Green
Ethernet: Yellow
PoE:Green

Power Input: 48 to 57V DC redundant power
Power Consumption: < 15watts (excluded PoE)
Surge protection: ± 4KV
Network Protocols

IEEE802.3 10BASE-T;
IEEE802.3i 10Base-T;
IEEE802.3u;100Base-TX/FX;
IEEE802.3ab 1000Base-T;
IEEE802.3z 1000Base-X;
IEEE802.3x;

Working temperature: -40～85℃ ;
Storage temperature: -40～85℃
Dimensions: (W x D x H) 175.6 x 135 x 45.5 mm
Weight Product
Weight: 1.18KG
Packing Weight: 1.3KG

Package Includes

1x USR-ISF216-SFP Industrial Grade 18-Port Gigabit Ethernet Switch - 16 Copper ETH Ports + 2 SFP ETH Ports - Layer 2 Managed - DC 12-52V
