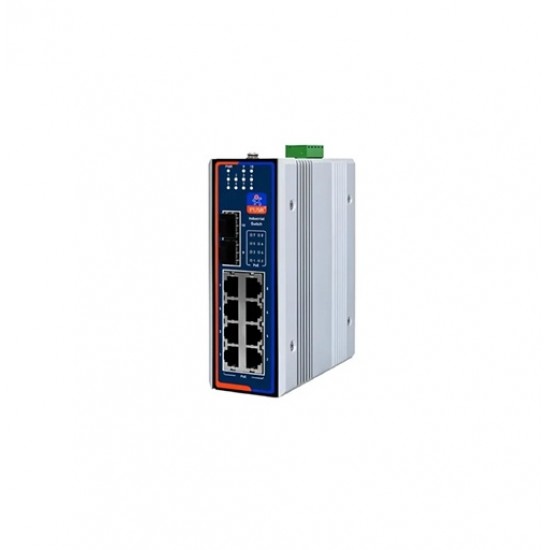

USR-ISG1208s-SFP 10-Port Gigabit Ethernet Switch - 2 SFP ETH Port + 8 Gigabit Coper ETH Port - Layer 2 Managed - DC 12-52V
USR-ISG1208-SFP can at most support 2 100/1000BaseX SFP ports + 8 10/100/1000BaseT ports, which are specially designed for harsh industrial environments, providing economic solutions for industrial Ethernet connections. The working temperature of these switches is40°C~+85°C. USR-ISG1208-SFP adopt redundant dual power inputs, 9.6~60VDC and 18~30VAC, DINRail mounted. With rugged aluminum alloy housing, IP40 protection class, these switches passed the high level tests of EMI/EMC. And all the models have gone through strict aging test, meeting the requirements of security industry.
Features
- Multiple port options
- Back plane bandwidth can be up to 20Gbps
- Wide and varied power supply range
- Non-rust aluminum alloy housing and torx screws
- All ports support wire-speed forwarding and automatic turnover, supporting long-distance transmission
- Lightning protection: power supply ±4KV, RJ45 port ±4KV
- IP40protection class
- Small and easy to install, plug and play without configuring
- Fan less design, wide working temperature and quiet operation
- MTBF≥300,000h
Specifications
- Back plane Bandwidth: 20Gbps (10ports, 2100/1000BaseXSFP+810/100/1000BaseTports)
- Switch Architecture: Store-Forward
- MAC Table Size: 4K
- Buffer Size: 1.5Mbit
- Exchange Rate: 1,488,000pps/1000Mport
- Connection: 5-PINterminalblock
- Input Voltage: 9.6~60VDC&18~30VAC,dual inputs
- Overload Current Protection: Supported
- Reverse Polarity Protection Supported
- Installation: DIN-Rail Mounted
- Housing: Aluminum Alloy Housing
- Protection Class: IP40
- Dimensions(W×H×D) =50mm×140mm×110mm
- Weight: =<0.75kg
- Vibration: IEC60068-2-6
- Shock: IEC60068-2-27
- Free-all: IEC60068-2-31
- Circuit Board: Approved by IPC
Package Includes
- 1x USR-ISG1208s-SFP 10-Port Gigabit Ethernet Switch - 2 SFP ETH Port + 8 Gigabit Coper ETH Port - Layer 2 Managed - DC 12-52V
