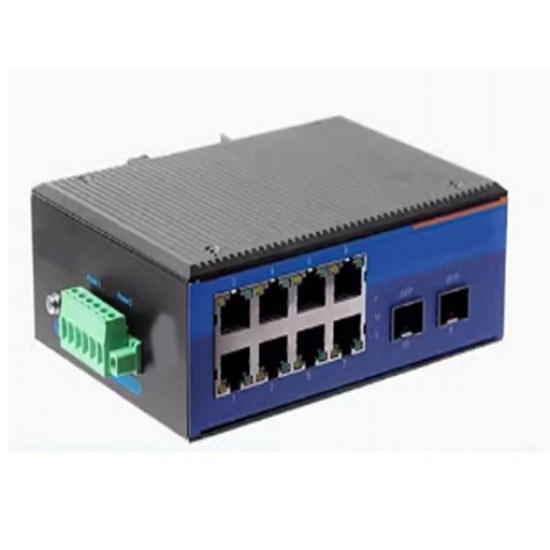

Name: USR-ISG208S-SFP Industrial Grade 10-Port Gigabit Ethernet Switch - 8 Gigabit ETH Ports + 2 SFP ETH Ports - Layer 2 Managed - DC 12-52V
Brand: USR IoT
SKU: 08555
Price: 15227.00 INR
Availability: OutOfStock

USR-ISG208S-SFP Industrial Grade 10-Port Gigabit Ethernet Switch - 8 Gigabit ETH Ports + 2 SFP ETH Ports - Layer 2 Managed - DC 12-52V

New

USR IoT

USR-ISG208S-SFP Industrial Grade 10-Port Gigabit Ethernet Switch - 8 Gigabit ETH Ports + 2 SFP ETH Ports - Layer 2 Managed - DC 12-52V

This product qualifies for Free Surface Shipping !

All orders with value above 1999+GST are eligible for free delivery in Surface mode. (Not applicable for B2B offline orders)

Based on 0 reviews. - Write a review

₹15,227.00

₹12,904.24 + 18% GST

All Inclusive, Shipping Calculated at Checkout

Assured Cashback of ₹ 129
B2B GST Credit Available

Price in reward points: 12904

Stock: 0 in Stock
SKU: 08555
Delivery Time
Bulk & B2B RFQ

Buy Now NOTIFY WHEN AVAILABLE

Plan to Buy Later ? Add to Wish List

USR-ISG208S-SFP Industrial Grade 10-Port Gigabit Ethernet Switch - 8 Gigabit ETH Ports + 2 SFP ETH Ports - Layer 2 Managed - DC 12-52V

USR-ISG208S-SFP an hardened 10-port Industrial Ethernet Switch, provides non-blocking wire-speed performance in harsh industrial environment. It also provides 8-port 10/100/1000BASE-TX RJ45 +2G SFP delivered in anIP40rugged,strong case with redundant power system. Its slim case is suitable for such applications as surveillance system deployments, control management and wireless service in climatically demanding environments with wide temperature range from -40℃ to 80℃. The USR-ISG208S-SFP provides the flexibility to all kinds of 10/1000Mbps Ethernet Media on RJ-45 port and performs highly stable fiber performance.

The USR-ISG208S-SFP is packaged in a compact IP40 case with DIN-rai installation. It offers dual-redundant, reversible polarity 12V DC to 52V DC power supply inputs for high availability applications requiring dual or backup power inputs.

Datasheet

Features

12V to 52V DC, redundant power input
-40℃ to 80℃ operating temperature
IP40 aluminum housing
Supports 12KV DC Ethernet ESD protection
Supports 2KV DC EFT protection for powerline
Free Fall, Shock and Vibration Stability

Specifications

Model: USR-ISG208S-SFP
1000Base-TX Port: 8 port RJ-45 auto-MDI / MDI-X
1000Base-FX Port: 2G SFP Slot
Performance

Bandwidth: 20Gbps
Packet Buffer Memory: 4.1Mbit
Packet Forwarding Rate: 14.9Mpps
MAC Address Table: 8K

Installation: DIN rail
Maximum Frame Size: 10240bytes packet size
Flow Control: Back pressure for half duplex, IEEE 802.3x pause frame for full duplex
Enclosure: IP40 aluminum housing
LED Indicator

Power: P1、P2，Green
RUN:Green
Link/ACT:1-10 Green

Power Input: 12 to 52V DC redundant power
Power Consumption: < 10W
Network Protocols

IEEE802.3 10BASE-T;
IEEE802.3i 10Base-T;
IEEE802.3u;100Base-TX/FX;
IEEE802.3ab 1000Base-T;
IEEE802.3z 1000Base-X;

Working temperature: -40～80℃ ;
Storage temperature: -40～85℃
Dimensions: (W x D x H) 143.7*125*47.7mm
Product Weight: 0.7KG
Packing Weight: 0.8KG

Package Includes

1x USR-ISG208S-SFP Industrial Grade 10-Port Gigabit Ethernet Switch - 8 Gigabit ETH Ports + 2 SFP ETH Ports - Layer 2 Managed - DC 12-52V
