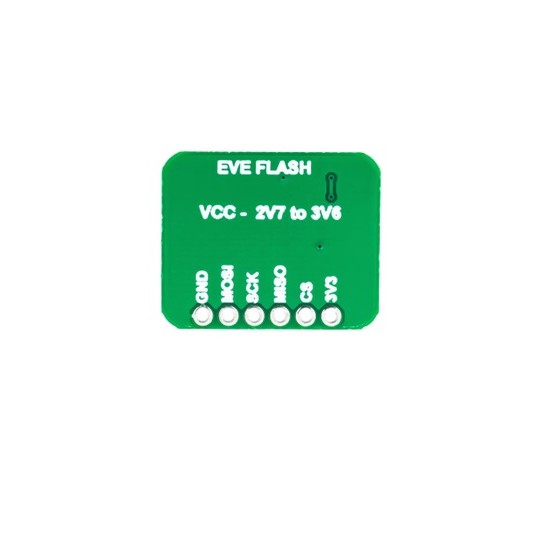

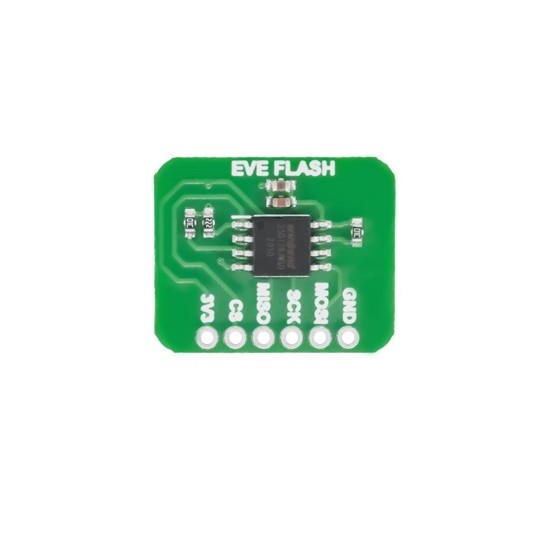

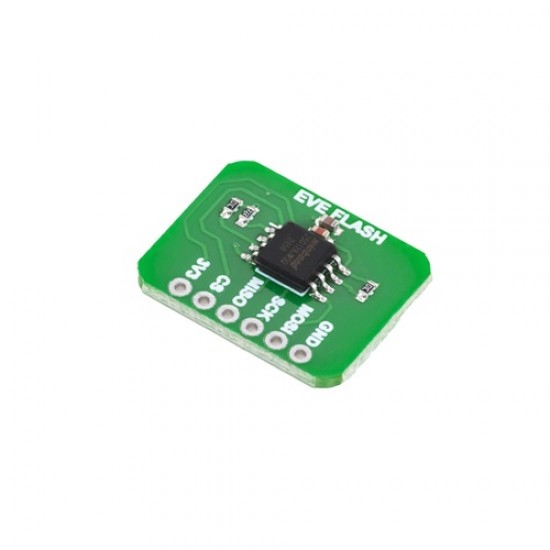

128Mbit Serial Flash Memory SPI Breakout - W25Q128JWSIQ
The 128Mbit Serial Flash Memory SPI Breakout - W25Q128JWSIQ is a highly efficient, solder-free memory solution tailored for developers working on embedded systems, portable electronics, and industrial automation. Designed around the Winbond W25Q128JWSIQ IC, this breakout board (BO-10114) offers exceptional performance with its SPI-based data interface, enabling fast, flexible, and space-saving integration without the need to solder chips directly onto a PCB.
With support for Dual/Quad SPI I/O, standard SPI commands, and clock speeds of up to 133MHz, this breakout module ensures rapid data transfers and low latency read/write operations. The memory is structured into 65,536 pages of 256 bytes each, allowing precise control over programming and erasure processes, which include 4KB sectors, 32KB and 64KB blocks, and full-chip erase options. This modularity makes the breakout an ideal solution for prototyping, development, and even small-scale production where board space and power efficiency are critical concerns.
Features
- Solder-Free Operation
- Allows direct access to the flash memory chip without soldering, streamlining development and testing workflows.
- High-Capacity Storage
- Offers 128Mbit (16MB) of non-volatile storage, suitable for firmware, data logging, or configuration storage in compact systems.
- SPI and Quad SPI Interface
- Supports standard SPI as well as Dual/Quad output and I/O for fast read/write operations with clock speeds up to 133MHz.
- Flexible Erase Options
- Perform selective erasures using 4KB sectors, 32KB or 64KB blocks, or full-chip erase for efficient memory management.
- Wide Compatibility
- Easily interfaces with various microcontrollers and embedded platforms via SPI, ensuring seamless system integration.
- Power-Efficient Design
- Ideal for portable and low-power devices due to its minimal power requirements and compact footprint.
- Rapid Data Access
- Achieves effective data transfer rates up to 532MHz in Quad SPI mode, outperforming many traditional Flash memory modules.
Specifications
- Memory Type: Serial NOR Flash
- Memory Capacity: 128Mbit (16MB)
- Memory Organization: 65,536 pages x 256 bytes
- Erase Options: 4KB (sector), 32KB (block), 64KB (block), Full Chip Erase
- Interface: SPI, Dual SPI, Quad SPI
- Operating Voltage Range: 1.7V – 1.95V
Package Includes
- 1x 128Mbit Serial Flash Memory SPI Breakout - W25Q128JWSIQ
