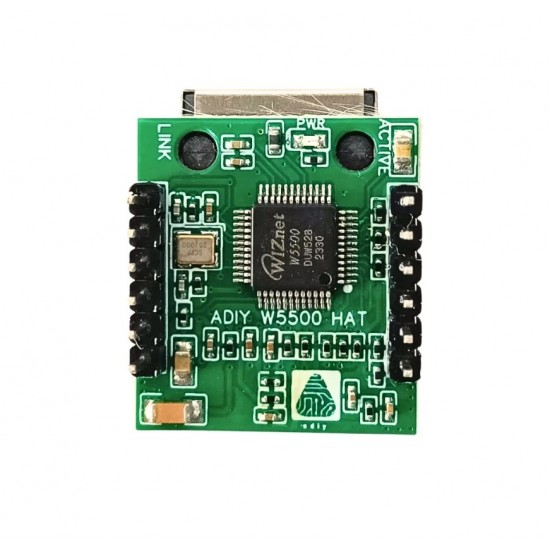

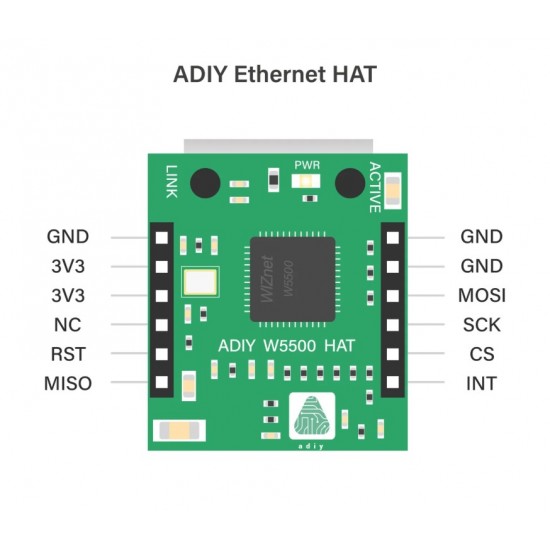

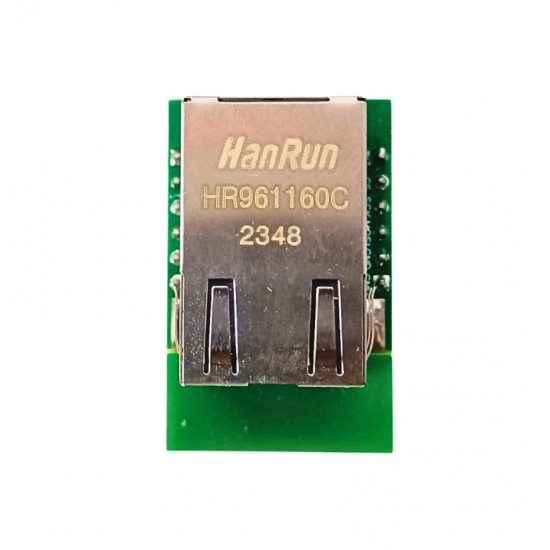

W5500 TCP / IP SPI to LAN Ethernet Interface SPI to LAN / Ethernet Converter

W5500 is a powerful TCP/IP embedded Ethernet controller designed to simplify Internet connectivity for embedded systems. It offloads the transport and network layer processing of the TCP/IP protocol stack (including TCP, UDP, ICMP, IPv4, ARP, IGMP, PPPoE, and more) using dedicated hardware logic gates. This controller also integrates the data link layer, physical layer, and 32KB of on-chip RAM for efficient data transmission and reception.

With the W5500, the main control chip of the host system only needs to handle the TCP/IP application layer, significantly reducing the workload related to data copying, protocol handling, and interrupt processing. This enhancement leads to improved system utilization and reliability, making the W5500 an ideal choice for your Internet-connected projects.

Features

• 80MHz high-speed SPI interface
• Built-in hardware TCPIP protocol stack, users need almost no knowledge of complex network protocols
• Support up to 8 Socket connections
• Support TCP, UDP, ICMP, IPv4, ARP, IGMP, PPPoE protocol
• Integrated data link layer, physical layer
• Support power-down wake-up
• Support high-speed serial peripheral interface (SPI mode 0~3)
• Internal 32K byte send and receive buffer
• Embedded 10BaseT/100BaseTX Ethernet Physical Layer (PHY)
• Support auto-negotiation (10/100-Based full/half-duplex)
• IP fragmentation is not supported
• 3.3V working voltage, I/O signal port 5V withstand voltage
• LED status display (full-duplex / half-duplex, network connection, network speed, active status)
• Ultra-small pin package for easily embedded applications
• Provide C application routines

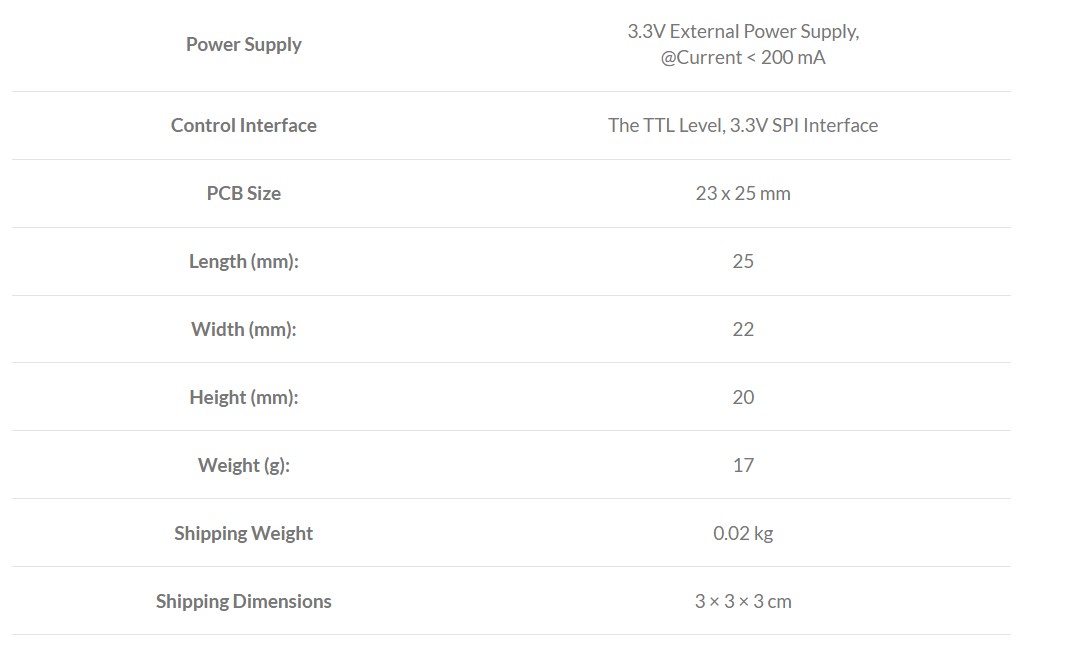

Specifications
