Seeed Studio Wio-SX1262 Wireless Module, SX1262 embedded, supports LoRa & LoRaWAN on EU868 & US915 (Tape Reel)

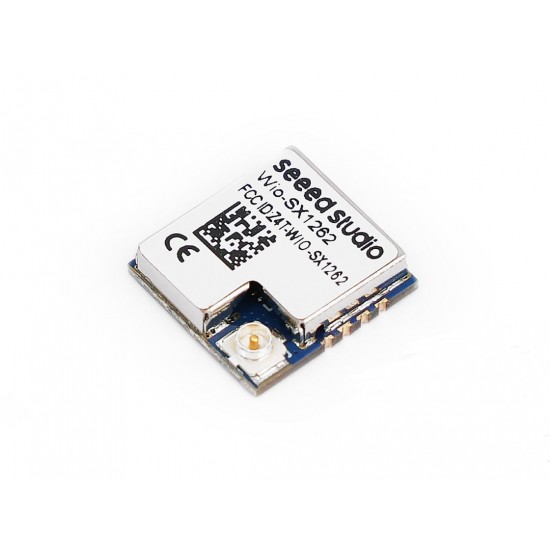

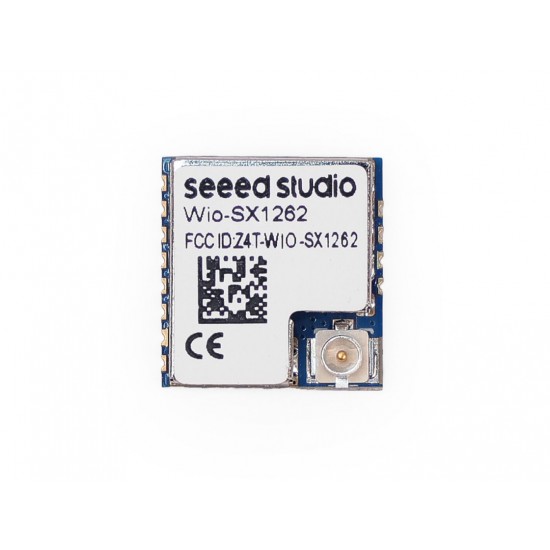

The Wio-SX1262 is a low-cost, ultra-low-power, and ultra-compact LoRa® Pure RF module based on the high-performance Semtech SX1262 LoRa® wireless communication IC, supporting LoRa & LoRaWAN frequency from 868 to 915 MHz and up tp +22 dBm highly efficient transmitted power. Equipped with an onboard IPEX antenna connector and high-quality oscillator of the TCXO(Temperature Compensate Crystal Oscillator), it ensures stable operation at the high and low temperature environment of industry. It is designed for wireless sensor networks and other IoT devices, especially those requiring battery-powered, low-power consumption, and long-range connectivity. Ideal for applications such as wireless meter reading, agriculture sensor, LoRaWAN single channel gateway etc.

User Manual / Datasheet / Example Codes Etc.

Features

Wio SX1262 is based on SX1262 which is sub-GHz radio transceivers designed by Semtech Corporation
Wio SX1262 can transmit up to +22 dBm with highly efficient integrated power amplifiers
Wio SX1262 support LoRa® modulation for LPWAN use cases and (G)FSK modulation for legacy use cases.
Frequency coverage from 868 MHz to 960 MHz.
With SPI interface.
Wio SX1272-N has SMT-packaged RF pins for easy PCB design, which is means it does not contain IPEX connector.

Specification

Main Chip: SX1262

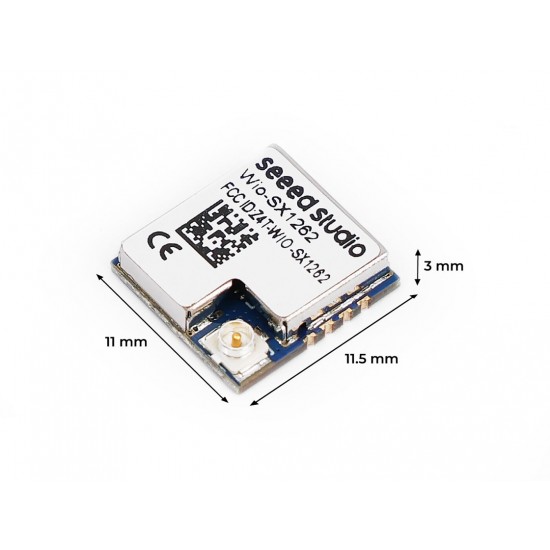

Size: 11.6(W)*11(L)*2.95(H) mm
Package: 12 pins, SMT
Frequency: supports 862-930MHz
Power Supply: 3.3V @typical
Sleep Current: 1.62 μA
SX1262 Power Distribution Mode: DC-DC Mode
TCXO Supply Mode: By SX1262 DIO3
TCXO Supply Voltage: 1.7~3.3 V
Maximum Operation Current (Transmitter): 125mA @22dBm in 862-930MHz typical
Main Chip: SX1262
Size: 11.6(W)*11(L)*2.95(H) mm
Package: 12 pins, SMT
Frequency: supports 862-930MHz
Power Supply: 3.3V @typical
Sleep Current: 1.62 μA
SX1262 Power Distribution Mode: DC-DC Mode
TCXO Supply Mode: By SX1262 DIO3
TCXO Supply Voltage: 1.7~3.3 V
Maximum Operation Current (Transmitter): 125mA @22dBm in 862-930MHz typical
Maximum Operation Current (Receiver): 7.6mA @BW125kHz, 862-930MHz typical
Output Power: 22dBm max @862-930MHz
Receiver Sensitivity: -136.73dBm @SF12, BW125kHz typical
Harmonics: ≤-45dBm above 1GHz
Antenna: IPEX port or SMT pin, default IPEX @50-ohm impedance

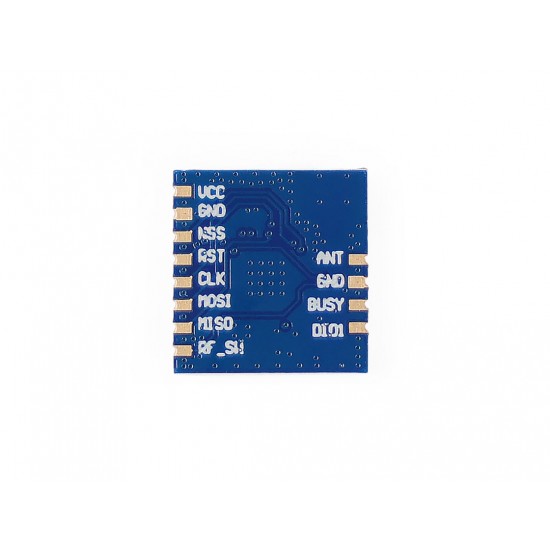

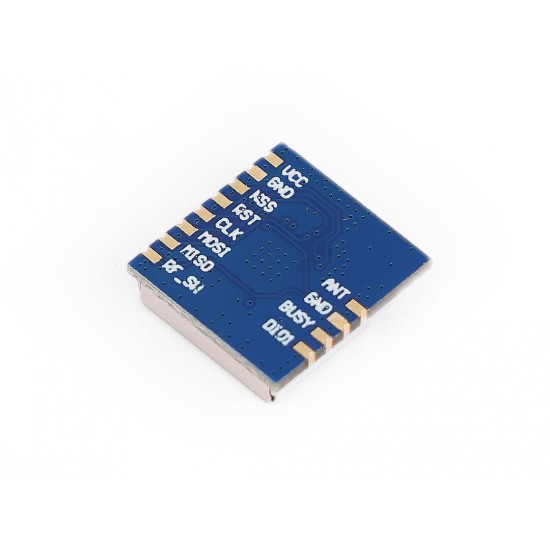

Interface

1 x SPI
DIO1: Multi-purpose digital IO
Busy: Busy signal indicator
DIO2: Multi-purpose digital IO, internally connected to RF switch
DIO3: TCXO voltage power supply configure through software

Working Temperature: -40°C ~ 85°C

Package Includes

1x Wio-SX1262 Module

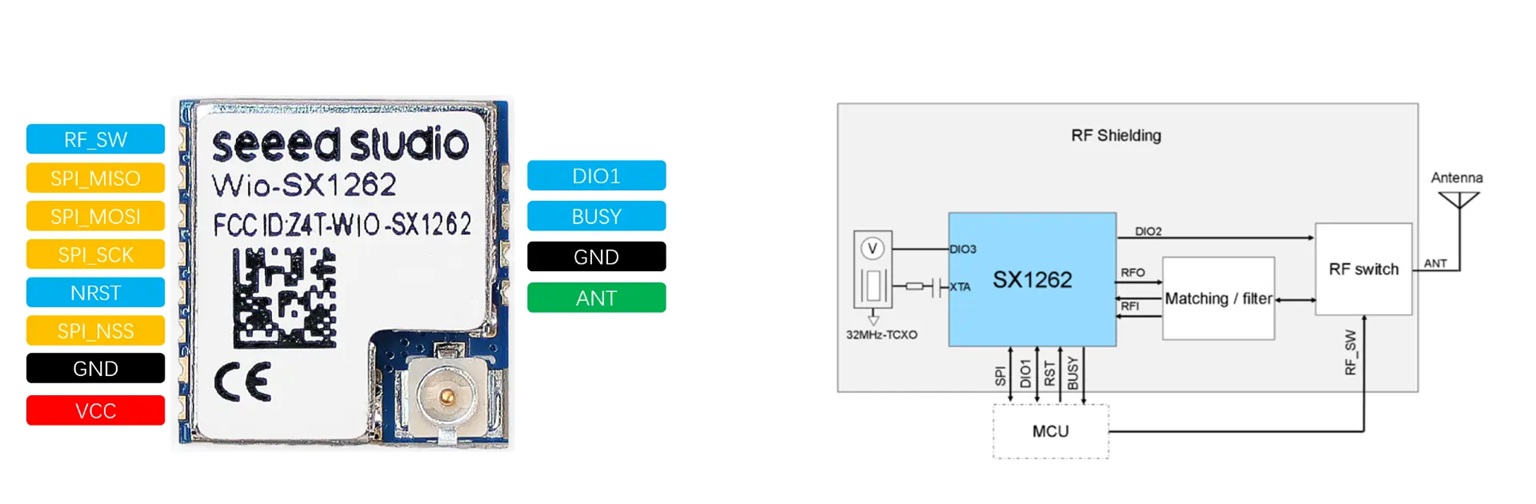

Hardware Overview
