Seeed Studio Wio Tracker L2 Pro for Meshtastic (MPN:100029766)
This product qualifies for Free Surface Shipping !
All orders with value above 1999+GST are eligible for free delivery in Surface mode. (Not applicable for B2B offline orders)
₹9,816.00
All Inclusive, Shipping Calculated at Checkout
Assured Cashback of ₹ 83
B2B GST Credit Available
Price in reward points: 8318
- Stock: 0 in Stock
- SKU: 08987
- Delivery Time
- Bulk & B2B RFQ

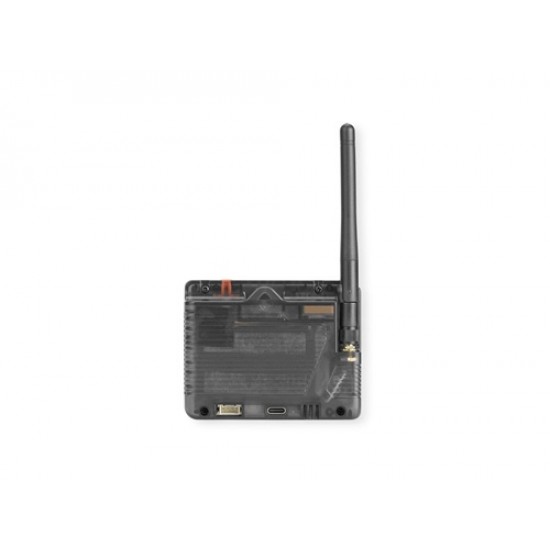

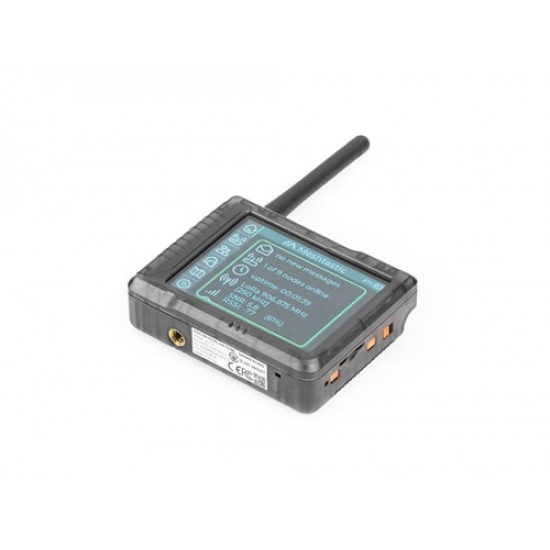

Seeed Studio Wio Tracker L2 Pro for Meshtastic
An open-source Meshtastic device with a 3.2-inch touchscreen for standalone on-device communication and hands-on customization. Powered by the Wio-S3 module, it combines LoRa (863–928 MHz), GNSS positioning, offline maps, Wi-Fi and BLE in one portable device—ready for everyday Mesh communication and custom connected projects.
User Manual / Datasheet / Example Codes Etc.
Specifications
- Processor: Wio-S3 (ESP32S3 + SX1262 Module)
- LoRa
- 863-928 MHz
- MAX TX Power: 20dBm
- GNSS: L76K (GPS, BeiDou, GLONASS, QZSS)
- On-chip Memory: 16MB Flash / 8MB PSRAM
- Antenna

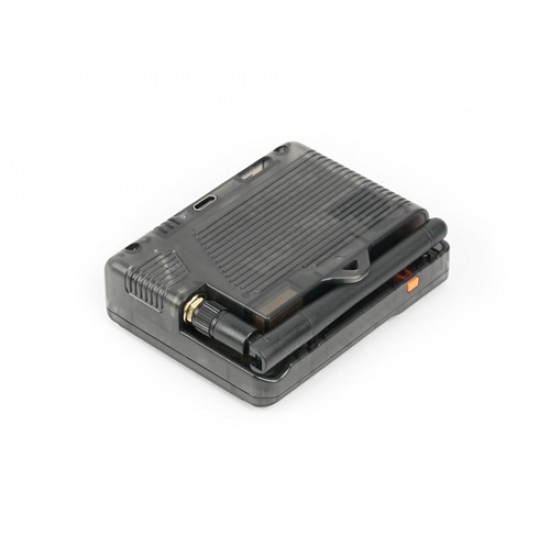

- Foldable LoRa Antenna
- Wifi/BLE 5.0: FPC antenna
- GPS: ceramic antenna
- Interface
- Grove * 1
- MicroSD Card Slot
- Quarter-inch threaded hole
- QSPI Interface: Compatible with IPS Screen & E-INK Screen
- Power Input

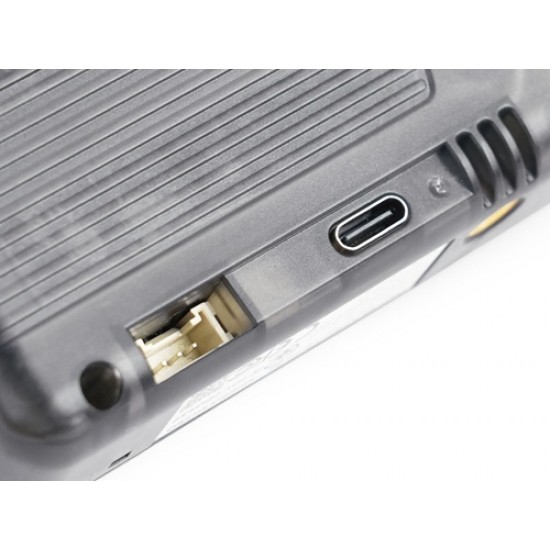

- USB Type-C: 5V — 1A
- Solar:JST-PH 2P-2.0mm, 5V ~ 13V
- Li-ion Battery (3P-1.25mm): 3.7V

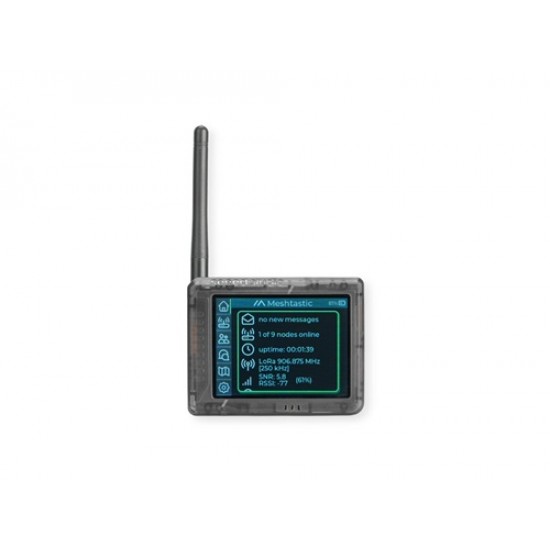

- IPS Touch Screen
- Size: 3.2 inch
- Resolution: 240 × 320 pixels
- LED
- Mesh LED * 1
- Charging LED * 1

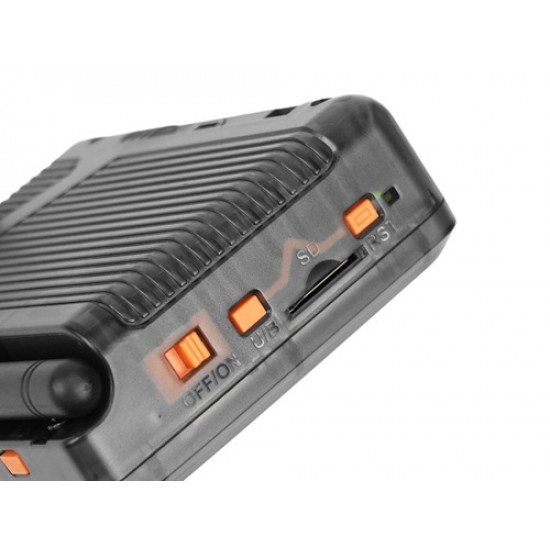

- Button
- WAKE-UP * 1
- User/Boot * 1
- RST * 1
- Power Switch * 1
- Audio
- I2S Codec: ES8311
- MIC: Pin Reserved
- Speaker: 6Ω 0.8W
- Communication Distance: Up to 5.8 km

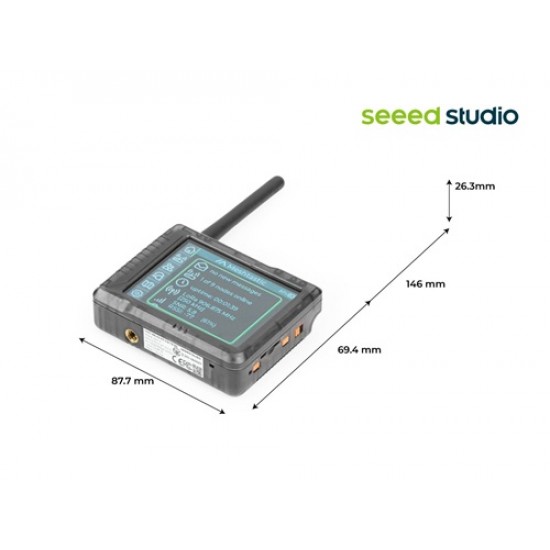

- Dimension: (Antenna folded) L: 87.5 cm, W: 69 cm, H: 26.6 cm
- Device Weight: 171.5g
- OperationTemperature: -10℃ to +55℃
- Certification: FCC,CE,RoHS,TELEC
- Battery
- Battery Capacity: Rechargeable Li-ion battery, 3000mAh
- Battery Life Monitoring: Periodic uplink battery level
- Charging Protocol: USB Type-C (Supports charging, flashing, data transfer and OTG)
- Device Power Input: 5V, 1A
- Fully-charged cut-off voltage: 4.2V
- Charging Temperature Limit: 0 to +45℃
Applications
From outdoor adventures and crowded festivals to open-source prototyping and indoor mesh hub, L2 Pro combines standalone Mesh communication with a flexible hardware platform you can explore, customize, and build on.
- Outdoor Adventures
- Indoor Mesh Hub
- Festivals & Large Events
- Maker & Developer Projects

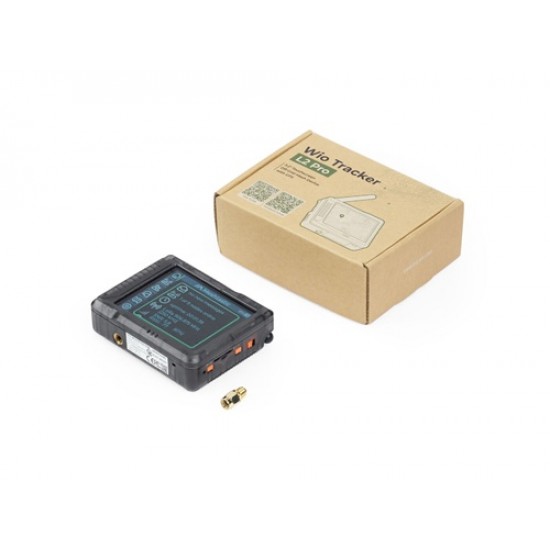

Package Includes
- Wio Tracker L2 Pro (Built-in Battery)
- RP‑SMA to SMA RF adapter metal
