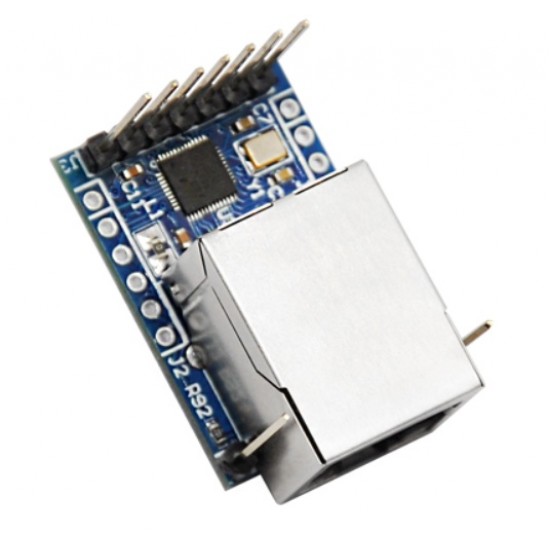

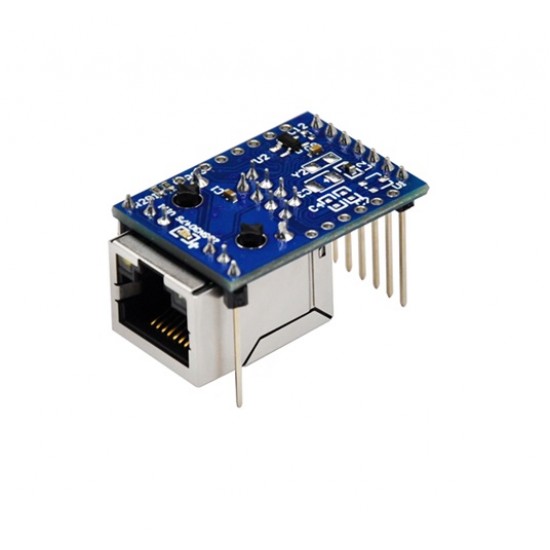

ZLAN ZLSN3007S Serial to Ethernet Communication Module

ZLSN3007S (hereinafter referred to as 3007S) is the TTL level serial port to Ethernet "super network port", the product has its own network transformer and RJ45 network port, which can be convenient to realize the network of MCU, all kinds of TTL level serial port equipment.

3007S adopts Shanghai ZLAN 7th generation product technology, with strong product software function, software stability and reliability inherit ZLSN3007S; The hardware has low power consumption, industrial temperature range and other excellent characteristics, and has a higher cost performance.

The 3007S adopts "seamless fitting design". When the 3007S is welded to the user's PCB, it can seamlessly fit with the PCB. As shown in the figure below, the 3007S (right) makes the RJ45 fit to the PCB while the 3007S (left) does not when the pin row is inserted into the user board. This helps to design the position of the network port on the shell.

Datasheet

Features

Communication is stable and reliable, supporting full duplex, high rate and long time data forwarding, without packet loss. Users can continuously send large amounts of data through serial ports and network ports at the same time, without stopping or losing data.
RJ45 port and PCB seamless fit design
Ultra low power consumption: operating current 45mA.
Serial port: supports 2 stop bits, less than 8 data bits, and 921600bsp baud rate.
Working mode：Supports the coexistence of TCPServer, TCP Client, UDP mode, UDP multicast, and TCPServer/Client. 6 destination IP addresses are connected as clients and 10 client connections are supported as servers.
Baud rate: 1200 to 921600bps, and you can customize special baud rate. The data bit can be 5 to 9 bits. The parity bit can be None, Odd, Even, Mark, or Space. The data bit can be CTS/RTS, DSR/DTR, XON/XOFF flow control, and 1 to 2 stop bits.
Support for fast bit 9 switching, suitable for use in multi-machine communication where bit 9 is the address.
Supports virtual serial ports and is equipped with Windows virtual serial port and device management tool ZLVircom.
When virtual serial ports are used, the on-the-fly technology supports serial port parameter customization.
The virtual serial port driver supports Windows 10 and 64-bit operating systems.

Specifications

Interface: TTL level serial port; RJ45 LAN port
Size: 30.6×21.7mm
Serial port: TTL×1：RXD，TXD，GND，CTS，RTS, RS485_TEN
Baud rate: 1200~921600bps
Check bits: None, Odd, Even, Mark, Space
Digit bits: 5～9
Flow control: RTS/CTS ， DSR/DTR ， XON/XOFF，NONE
Protocol
ETHERNET、IP、TCP、UDP、HTTP、ARP、ICMP、
DHCP、DNS、 MQTT、Modbus TCP、DLT/645
Configuration mode: ZLVirCOM tool、serial port、Web
Communication mode: Socket、virtual port、MQTT、HTTP
Working mode: TCP server, TCP client, UDP, UDP multicast, TCP server/client coexistence, MQTT
Power supply: 3.3V DC or 5V，<25mA
operation temperature: -40~85℃ 5~95%RH
Storage temperature: 40~105℃ 5~95%RH

Package Includes

1x ZLAN ZLSN3007S Serial to Ethernet Communication Module
