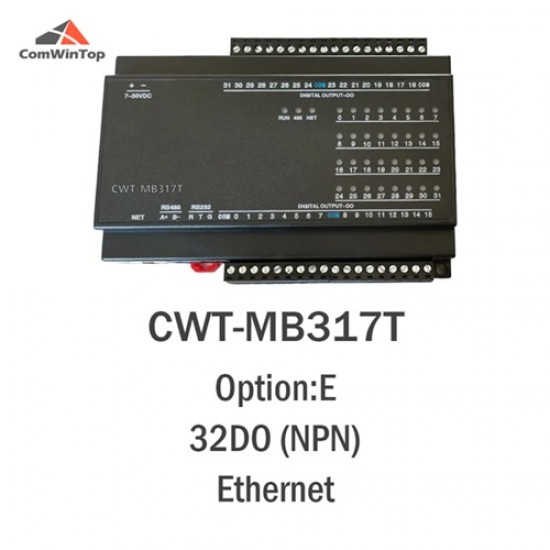

ComWinTop WT-MB317T 32-Channel Digital Output Industrial Modbus Digital Output Controller - Ethernet Interface
The ComWinTop WT-MB317T is a high-performance industrial Modbus digital output controller designed for reliable remote switching, automation control, and industrial I/O expansion. Featuring 32 isolated NPN transistor digital output channels and Ethernet communication, this controller enables stable and efficient integration into PLC, SCADA, HMI, and industrial monitoring systems through Modbus TCP/UDP protocols.
Built for demanding industrial environments, the WT-MB317T combines a 32-bit ARM processor, industrial-grade protection features, and flexible mounting options to deliver dependable operation across factory automation, process control, smart equipment, and distributed control applications. The Ethernet interface provides fast remote access and seamless network connectivity for centralized monitoring and control.
Features
- 32-channel digital output (NPN transistor type)
- Ethernet communication via RJ45
- Supports Modbus TCP and Modbus UDP protocols
- Optocoupler isolated outputs for improved reliability
- Industrial-grade ARM processor architecture
- Wide operating voltage input
- DIN rail or screw mounting installation
- Wide temperature operation for harsh environments
- Built-in protection against ESD, overvoltage, and reverse connection
Specifications
- Digital Output Channels: 32 Channels
- Output Type: NPN Transistor Output
- Output Isolation: Optocoupler Isolation
- Load Voltage: 5–30V DC
- Load Current: 100mA per channel
- Processor: 32-bit ATMEL ARM, 72MHz
- Operating System: GCOS with 10ms scheduling mechanism
- Power Supply: 7–35V DC @ 2W
- Power Protection: Reverse polarity protection, isolation design
- Communication Interface: Ethernet (RJ45)
- Ethernet Protocols: Modbus TCP, Modbus UDP
- Ethernet Speed: 10M / 100Mbps
- Communication Rate: Up to 1000 times/sec
- Default IP Address: 192.168.1.75
- Default Port: 502
- Serial Support: Optional RS485 + RS232 variants available
- Serial Protocol: Modbus RTU
- Baud Rate: 1200–115200bps (Default: 9600)
- Data Format: 8 Data Bits, 1 Start Bit, 1–2 Stop Bits
- Parity: None / Even / Odd
- Default Serial Setting: 9600.N.8.1, Slave ID: 1
- Protection Features: DCDC isolation, 2500V lightning protection, ESD, overvoltage, overcurrent protection
- Installation Method: DIN Rail Mounting / Screw Fixing
- Operating Temperature: -40°C to +85°C
- Humidity Range: 5%–95% RH (Non-condensing)
- Ingress Protection: IP20
- Watchdog: 1.5m Guard
Applications
- Industrial automation systems
- PLC and SCADA integration
- Remote relay and device switching
- Process control systems
- Factory monitoring and I/O expansion
- Ethernet-based Modbus control networks
Package Includes
- 1x ComWinTop WT-MB317T 32-Channel Digital Output Industrial Modbus Digital Output Controller - Ethernet Interface
