Waveshare 1.46inch Touch LCD Display Module, 412 × 412 Resolution, 16.7M Color, QSPI And I2C Communication Interfaces, Built-in SPD2010 Driver Chip

The Waveshare 1.46-inch Touch LCD Display Module is a compact, high-performance circular IPS display designed for embedded systems, smart wearables, industrial control panels, and IoT applications. Featuring a crisp 412 × 412 resolution, 16.7 million colors, and responsive capacitive touch, it delivers smooth, vibrant graphics with excellent viewing angles.

Powered by the SPD2010 display driver chip, the module supports QSPI for high-speed display data transfer and I2C for touch communication, making it ideal for microcontroller and SBC-based projects requiring efficient, low-pin-count connectivity. Its round display design is perfect for smart watches, instrumentation, HMI interfaces, dashboards, and portable devices.


User Manual / Datasheet / Example Codes Etc.


Features

  • 412 × 412 resolution, 16.7M colors, clear and colorful displaying effect
  • High touch screen transmittance, fast response and long lifetime
  • Built-in SPD2010 display and touch controller chip, using QSPI and I2C communication respectively, minimizes required IO pins, supports controller boards like Raspberry Pi / Raspberry Pi Pico / ESP32-S3 / Arduino / STM32
  • Comes with online development resources and manual (examples for Raspberry Pi / ESP32 / Raspberry Pi Pico / Arduino / STM32)


Specifications

  • Driver IC: SPD2010
  • Operating voltage: 3.3V / 5V
  • Display Interface: QSPI
  • DISPLAY PANEL: IPS
  • Display size: 36.96 × 36.96 (mm)
  • Module size: 44.77 × 44.77 (mm)
  • Resolution: 412 × 412 pixels
  • Touch Interface: I2C
  • Touch Type: Capacitive touch
  • Brightness: 450 cd/㎡

Package Includes

  • 1.46inch Touch LCD Module
  • GH1.25 15PIN cable
  • FFC 18PIN 0.5mm pitch cable 200mm (same direction)

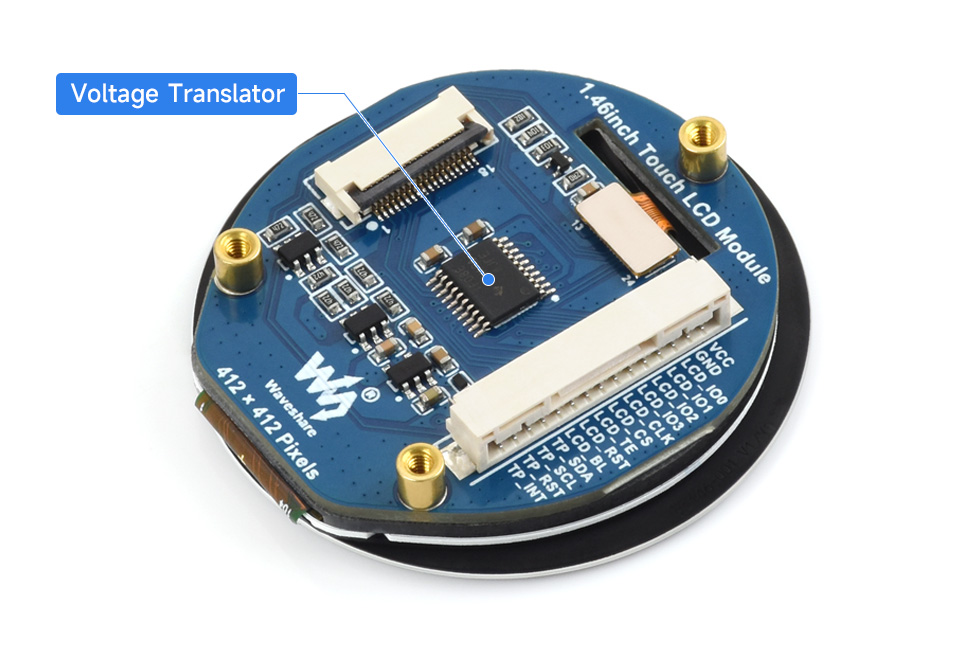

Onboard Voltage Translator

Compatible With 3.3V / 5V Power Input


QSPI and I2C Control Interfaces

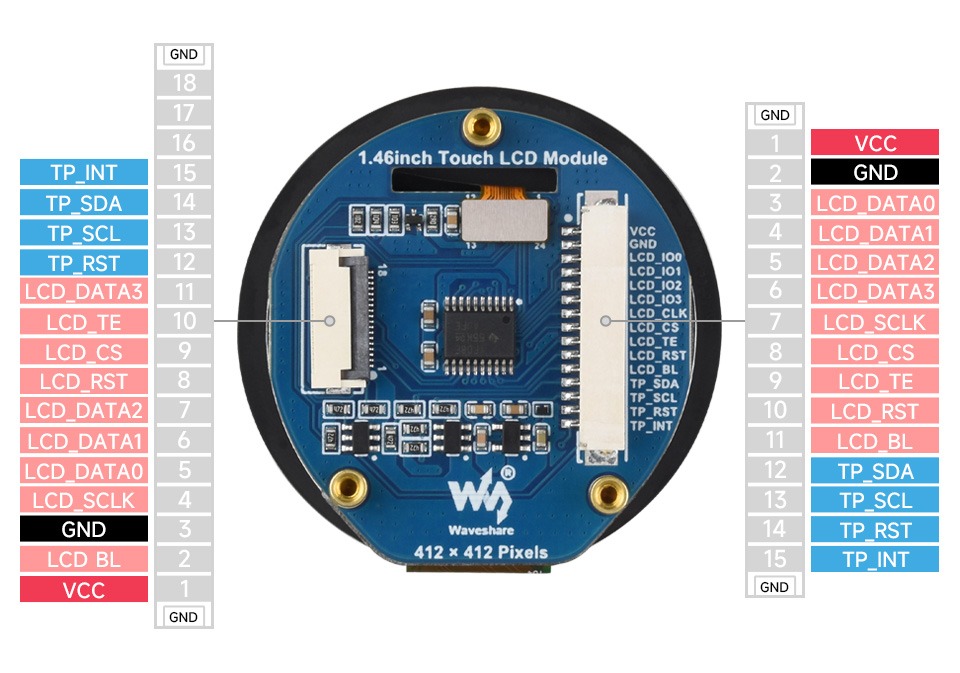

Options For 15PIN Connector Or 18PIN FPC Slot For Connecting

The LCD To The Host Board

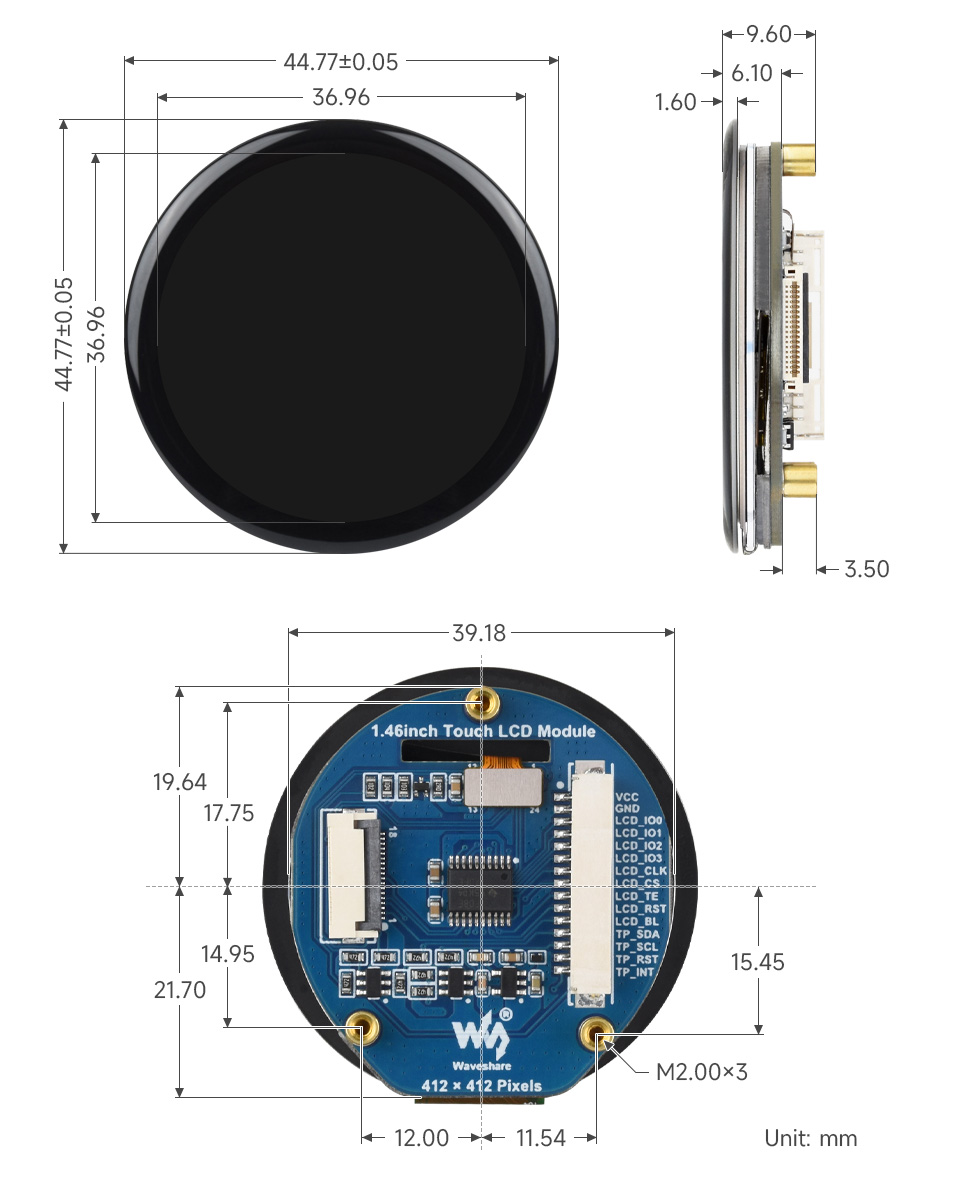

Dimensions
