Waveshare 15.6inch 10-Point Capacitive Touch Monitor (C), 1920 × 1080 Full HD, IPS screen, Optical Bonding Toughened Glass Panel, Type-C / mini HDMI Display Interface
This product is a universal 15.6-inch ultra-thin portable touch display, supporting Type-C and HDMI display interfaces, with a high-definition resolution of 1920×1080 and a high color gamut of 62% NTSC.
It features a tempered glass panel with optical bonding, supports 10-point capacitive touch, and has a built-in 10,000mAh large-capacity battery.
It supports Raspberry Pi and can be used as a computer monitor, or as an extension screen for a smartphone or game console.
User Manual / Datasheet / Example Codes Etc.
Features
- Display: 15.6 inches, 1920×1080 resolution, IPS panel (horizontal/vertical viewing angle 178°)
- Touch screen: capacitive touch, tempered glass panel, hardness up to 6H, optical bonding process
- Display interface: Type-C/HDMI
- Display color gamut: 62% NTSC
- Touch interface: Type-C (the main control terminal can be connected to Type-C/USB)
- When used with Raspberry Pi, it supports Raspberry Pi OS/Ubuntu/Kali and Retropie
- When used as a computer monitor, it supports Windows 11/10/8.1/8/7
- Supports brand laptops from Apple, Huawei, Lenovo, HP, and Dell, enabling multi-screen display for both work and entertainment
- Supports smartphones from brands like Huawei, Nubia, OPPO, and Samsung, featuring a single Type C cable for screen mirroring, a great companion for business trips and travel
- Supports popular consoles such as Microsoft XBOX360, Sony PS5 and Nintendo Switch
- Supports OSD menu (can be used for power control, brightness/contrast adjustment, etc.)
- Supports Type-C/HDMI audio input, with 3.5mm audio and speaker interface
- Built-in ferrite Hi-Fi speaker (no external speaker required)
- Built in 10000mAh battery, can be used even when going out (normal use for 3~4 hours)
Specifications
- Display Size: 15.6 inch
- Resolution: 1920 × 1080 (Full HD)
- Panel Type: IPS LCD
- Touch Technology: 10-Point Capacitive Touch
- Screen Protection: Optical Bonding Toughened Glass Panel
- Display Interface: Type-C / Mini HDMI
- Viewing Angle: Wide Viewing Angle (IPS)
- Touch Interface: USB / Type-C (device dependent)
- Brightness: High brightness display
- Aspect Ratio: 16:9
- Compatible Devices: Raspberry Pi, Jetson Nano, mini PCs, laptops, gaming consoles
- Mounting Support: Desktop / VESA compatible (if applicable)
- Panel Surface: Scratch-resistant glass
- Application: Embedded systems, industrial display, secondary monitor, portable workstation
Package Includes
- 15.6inch FHD Monitor (C)
- Mini HDMI to HDMI cable ~1.5m
- Type-A to Type-C cable ~1m
- Dual-plug Type-C cable ~1m
- HDMI to Micro HDMI Adapter

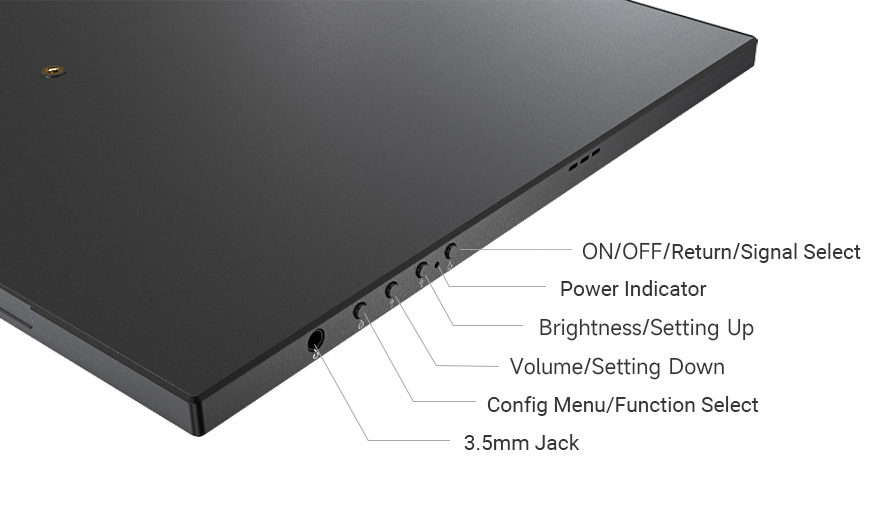

Interface Introduction

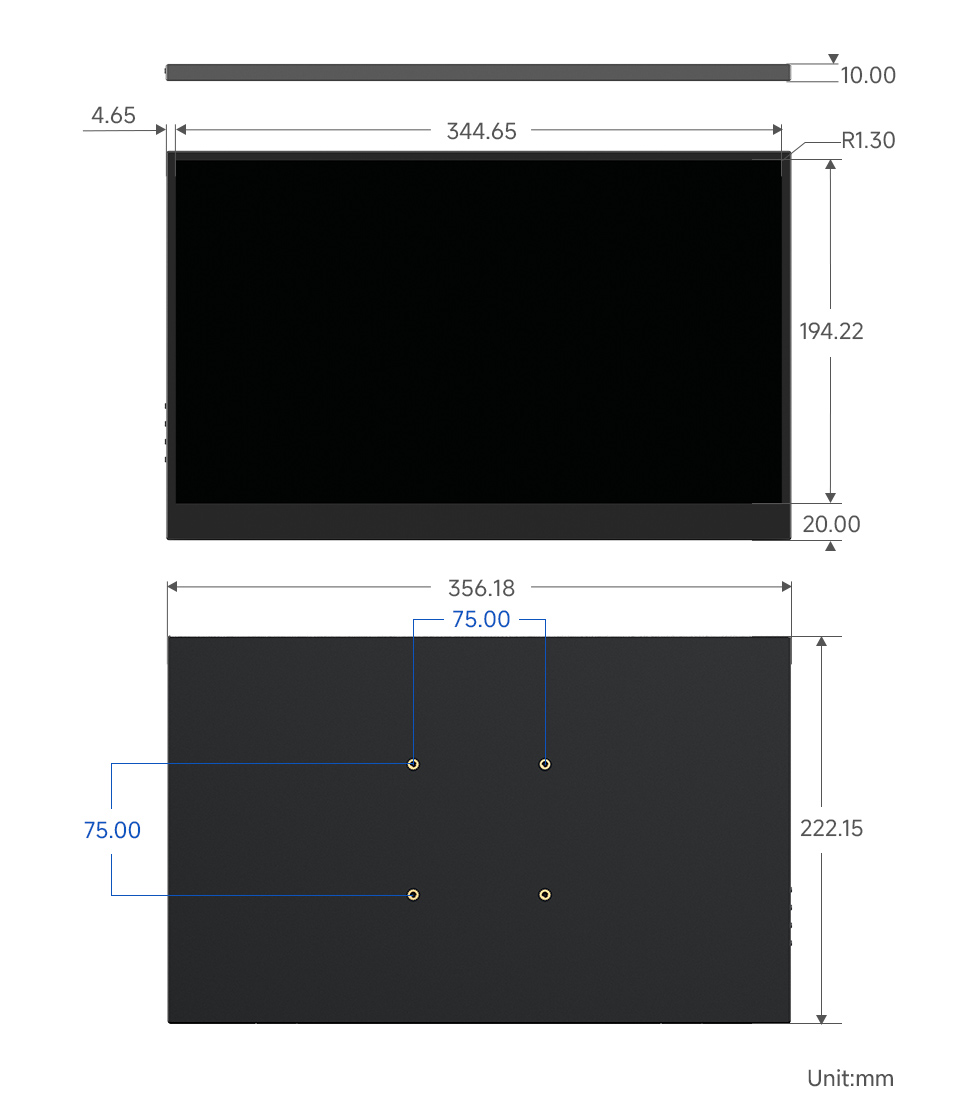

Dimensions
