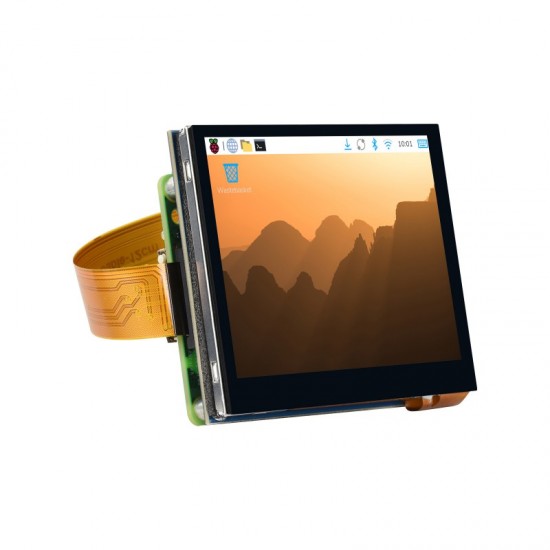

Waveshare 3.5inch DSI Capacitive Touch Display, 5-Point Touch, 480 × 800 Pixels, IPS Display Panel, Supports Raspberry Pi Series Boards

The Waveshare 3.5inch DSI Capacitive Touch Display is a compact, high-performance touchscreen designed specifically for Raspberry Pi projects. Featuring a 480 × 800 resolution IPS panel with a 170° wide viewing angle, it delivers vibrant colors and sharp image quality for embedded interfaces, smart home control panels, portable devices, and industrial applications. The display connects through the DSI interface, providing high refresh rates while keeping the Raspberry Pi's 40-pin GPIO header free for additional HATs and peripherals.

Its 5-point capacitive touch panel supports smooth multi-touch gestures and is protected by 6H toughened glass for enhanced durability. The display works seamlessly with Raspberry Pi OS and is compatible with a wide range of Raspberry Pi boards, including Raspberry Pi 5, CM5, CM4, Raspberry Pi 4B, 3B+, 3A+, 3B, 2B, B+, and A+. The default portrait orientation can be easily configured for landscape mode through software settings, making it suitable for various display applications.


User Manual / Datasheet / Example Codes Etc.


Features

  • 3.5inch IPS screen, 480 x 800 hardware resolution
  • Capacitive touch panel, supports 5-point touch control
  • Toughened glass touch panel, hardness up to 6H
  • Compatible with Pi5 / CM5 / 4B / CM4 / 3B+ / 3A+ / 3B / CM3 / CM3+ / 2B / B+ / A+
  • Directly drive the LCD by the DSI interface on the Raspberry Pi, with up to 60Hz refreshing rate


Specifications

  • Display Size: 3.5 inch
  • Display Type: PS LCD
  • Resolution: 480 × 800 pixels
  • Display Interface: DSI (Display Serial Interface)
  • Touch Type: Capacitive Touch
  • Multi-Touch Support5: -Point Touch
  • Touch Interface: I2C
  • Viewing Angle: 170° (Typical)
  • Panel Protection: 6H Toughened Glass
  • Display Orientation: Portrait (Default), Software-Supported Landscape
  • Refresh Rate: Up to 60Hz (Platform Dependent)
  • Compatible Boards: Raspberry Pi 5, CM5, CM4, Raspberry Pi 4B, 3B+, 3A+, 3B, 2B, B+, A+
  • Operating System: Raspberry Pi OS
  • GPIO Access: GPIO Header Remains Available
  • Applications: HMI, IoT, Embedded Systems, Industrial Control, Smart Home Panels, Portable Projects


Package Includes

  • 3.5inch DSI LCD (H) x1
  • FPC 15PIN 1.0 pitch cable 50mm (opposite sides) x1
  • DSI-Cable-12cm x1
  • FPC 15PIN 1.0 pitch cable 160mm (opposite sides) x1
  • Standoffs x1

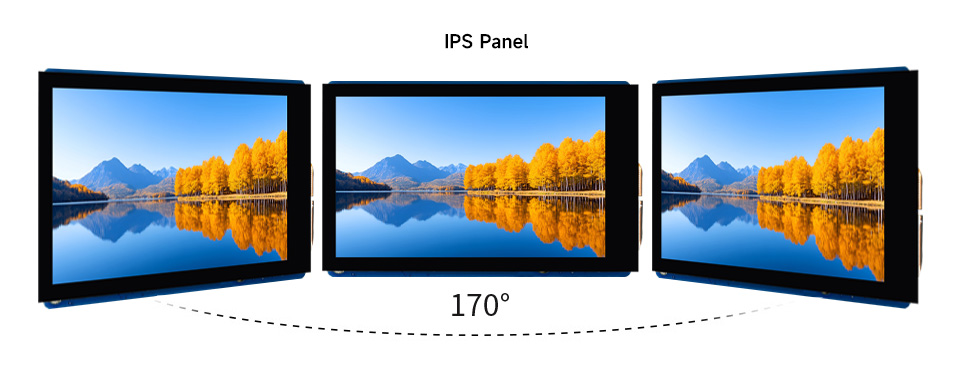

IPS display panel

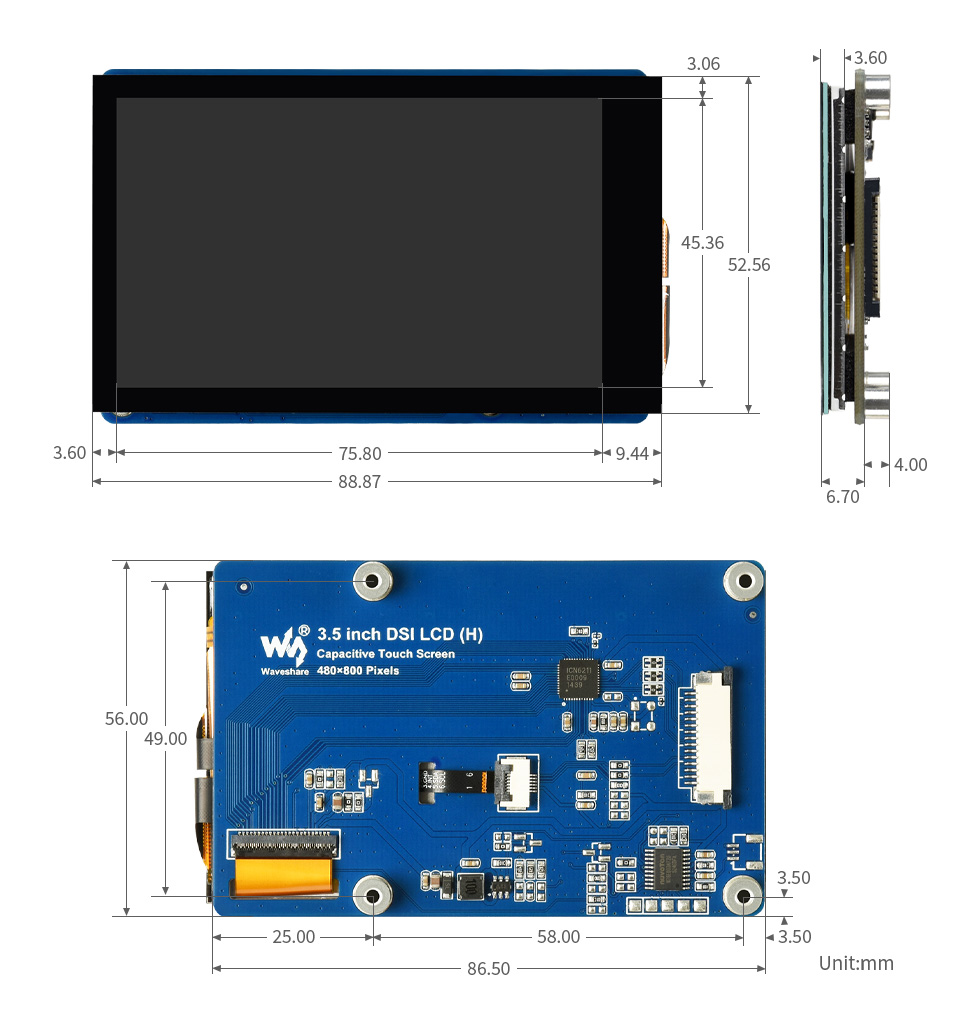

Dimensions
