4.26inch E-Paper Display Module (G), 800 × 480 Resolution, Red/Yellow/Black/White, SPI Communication Interface, Standard Raspberry Pi 40PIN GPIO Header

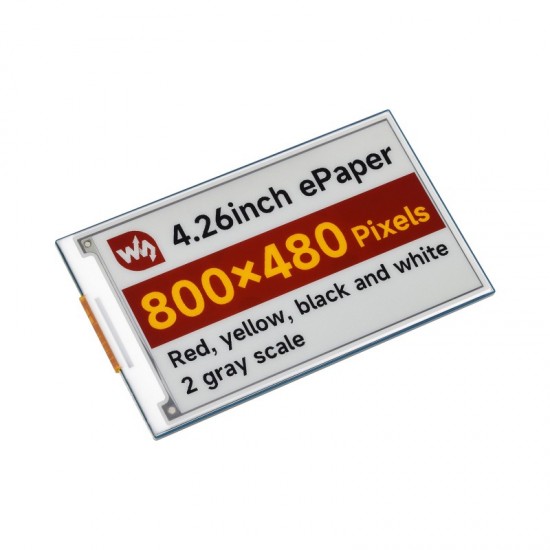

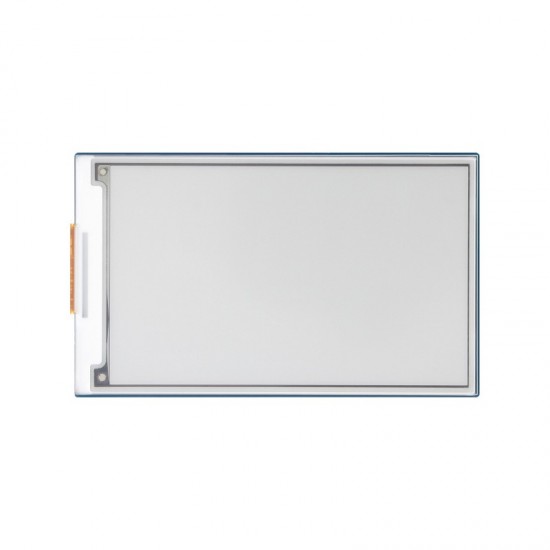

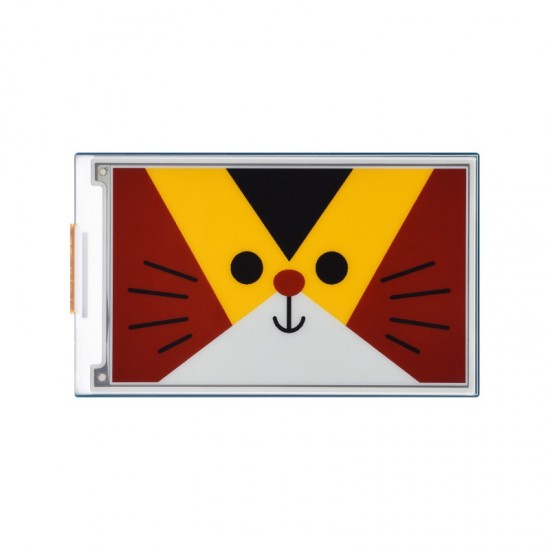

The 4.26-inch E-Paper Display Module (G) is a versatile and energy-efficient display solution featuring a high resolution of 800 × 480 pixels. Utilizing advanced e-ink technology, it supports four distinct colors—red, yellow, black, and white—delivering sharp text and vivid visuals without the need for a backlight. This makes it ideal for applications such as electronic shelf labels, smart home displays, industrial instruments, and low-power IoT projects.

With its SPI communication interface, the module ensures stable and fast data transmission, making it easy to integrate with various microcontrollers and development platforms. The standard Raspberry Pi 40PIN GPIO header allows seamless compatibility with Raspberry Pi boards, simplifying setup and development.

The display retains the last image even when powered off, consuming ultra-low power, which significantly enhances battery life in portable and embedded systems. Its wide viewing angle and paper-like display effect provide excellent readability under ambient light, including direct sunlight.

User Manual / Datasheet / Example Codes Etc.

Features

No backlight, keeps displaying last content for a long time even when power down
Ultra low power consumption, basically power is only required for refreshing
Comes with online development resources and manual (driver board schematic diagram and examples for Raspberry Pi / Jetson Nano / Arduino / STM32 / ESP32, etc.)
Optional for e-Paper driver board

Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi and Jetson Nano series boards
Adopts Raspberry Pi HAT+ standard to improve interoperability, helping the users to design and develop faster, easy to use with other peripherals and extend more functions for Raspberry Pi
Adapting SPI interface for connecting with controller boards like Raspberry Pi / Jetson Nano / Arduino / STM32 / ESP32, etc.
Onboard voltage translator, compatible with 3.3V / 5V MCUs

Specifications

operating voltage: with driver board: 3.3V / 5V
interface: 3-wire SPI, 4-wire SPI
outline dimensions: with driver board: 107.00 × 64.00 (mm)
display size: 92.80 × 55.68 (mm)
DOT PITCH: 0.116 × 0.116 (mm)
RESOLUTION: 800 × 480 pixels
display color: Red/Yellow/Black/White
grey scale: 2
full refresh time: 20s
refresh power: <90mW
standby current: <0.01uA (almost none)
viewing angle: >170°

Package Includes

4.26inch e-Paper HAT+ (G) x1
MX1.25 9PIN cable x1
Screws pack x1

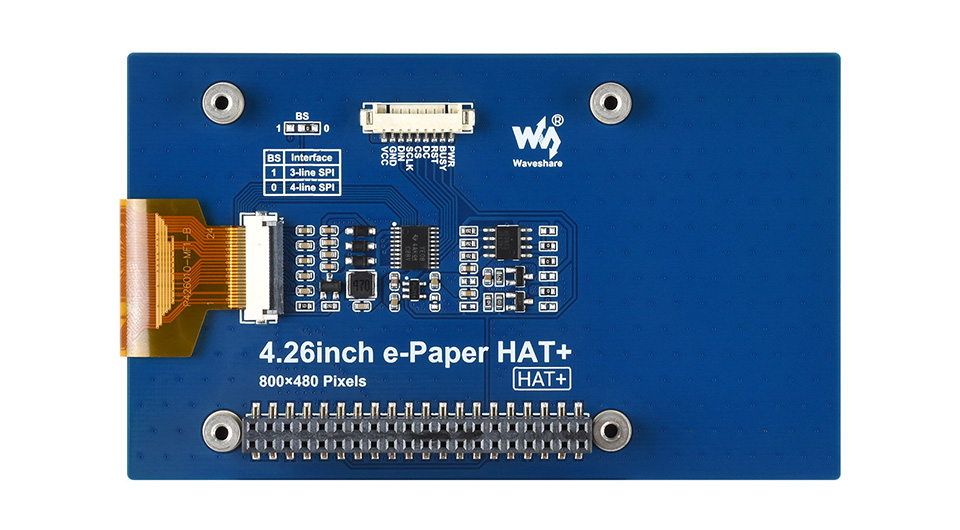

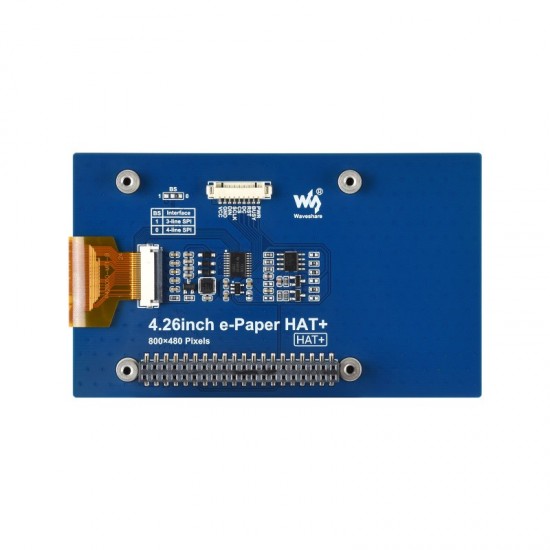

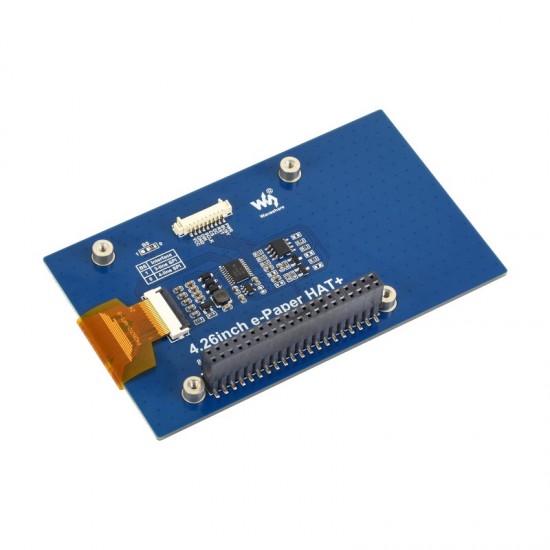

Onboard SPI control interface

for use with controller boards like Raspberry Pi / Jetson Nano / Arduino / STM32 / ESP32

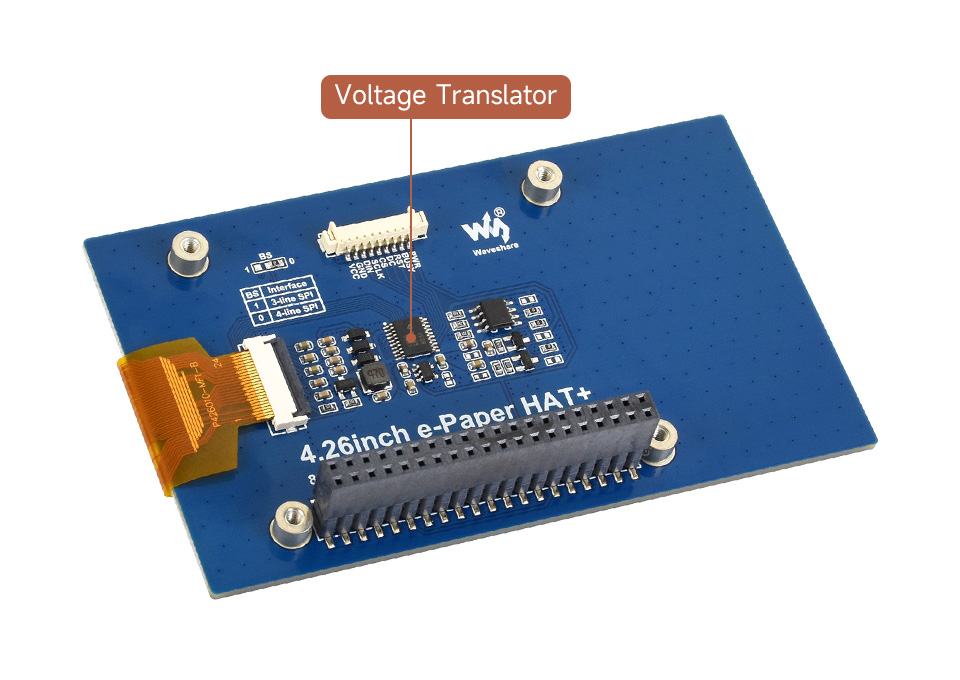

Onboard Voltage Translator

Compatible With 3.3V / 5V MCUs

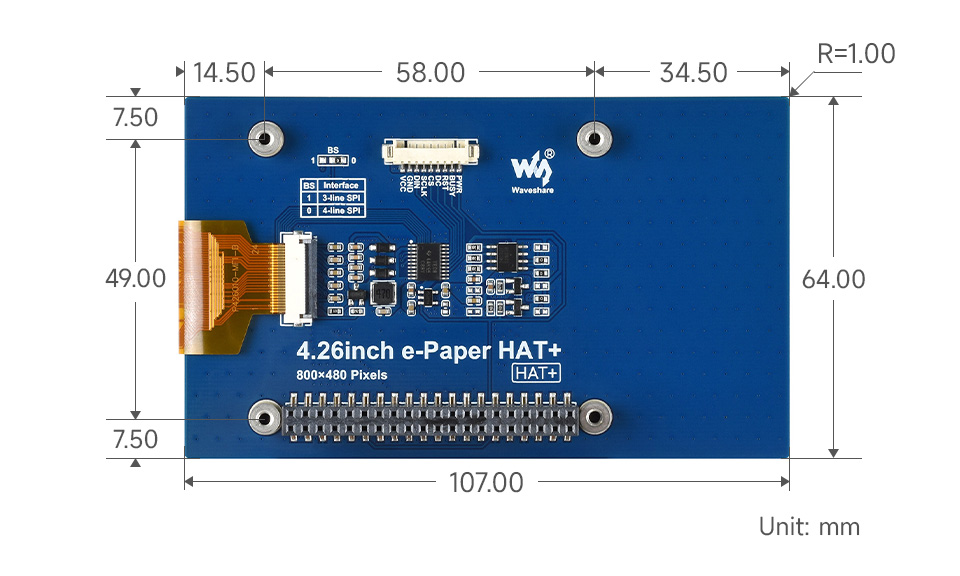

Dimensions
