Waveshare Industrial Computer For Raspberry Pi Compute Module 5 (NOT included), 1000M Ethernet RJ45 port, Supports RS485 And 4G/5G Communication - 4 Ports RS485
The Waveshare Industrial Computer for Raspberry Pi Compute Module 5 is a robust industrial computing and communication platform designed for applications requiring reliable networking, serial communication, and cellular connectivity. Raspberry Pi Compute Module 5 (CM5) is NOT included and must be purchased separately.
Equipped with a 1000M Ethernet RJ45 port, the industrial computer provides high-speed wired network connectivity for industrial automation, remote monitoring, IoT gateways, and edge-computing applications. It features 4 × RS485 ports, making it suitable for connecting multiple Modbus RTU devices, sensors, meters, PLCs, and other industrial equipment.
The platform supports 4G/5G communication, enabling wireless connectivity for remote installations where wired network access is unavailable or unreliable. Its industrial-oriented design makes it suitable for applications such as industrial control, data acquisition, energy monitoring, smart manufacturing, environmental monitoring, and remote device management.
User Manual / Datasheet / Example Codes Etc.
Specifications
- CM5 socket: Suitable for all variants of Compute Module 5
- Networking: 1000M Ethernet RJ45 port
- USB: USB 3.2 Gen1 port × 2
- USB: 2.0 port × 2
- Video: HDMI port × 1, supports 4K display output
- M.2
- M.2 M KEY (PCIe Gen2/3 × 1, 2230 / 2242 / 2260 / 2280)
- M.2 B KEY, supports connecting 4G / 5G communication module
- Storage: TF card socket for Compute Module 5 Lite (without eMMC) variants
- Serial Interface
- Options for 2 × RS485 + 2 × RS232 version or 4 × RS485 version
- 1 × CAN with up to 1Mbps communication rate
- Digital Input/Output: 2 × digital outputs + 2 × digital inputs
- Analog Input: 2 × ADC analog inputs (Supports 4 ~ 20mA current acquisition by desoldering components)
- Fan header: 5V, 2 × 4PIN JST-SH PWM fan headers (Select one)
- Buzzer: 1-ch controllable buzzer
- Other: Onboard EEPROM and encryption chip
- Power Input: 7V ~ 36V wide voltage range screw terminal, 5V 5A Type-C port
- Dimensions: 132.50 × 92.00 × 34.50 (mm)

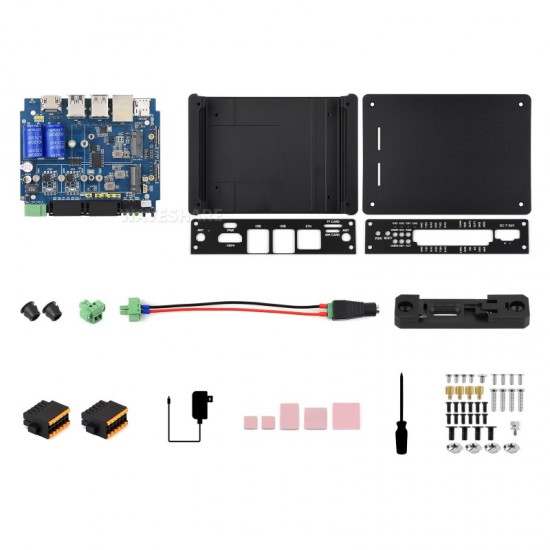

Package Includes

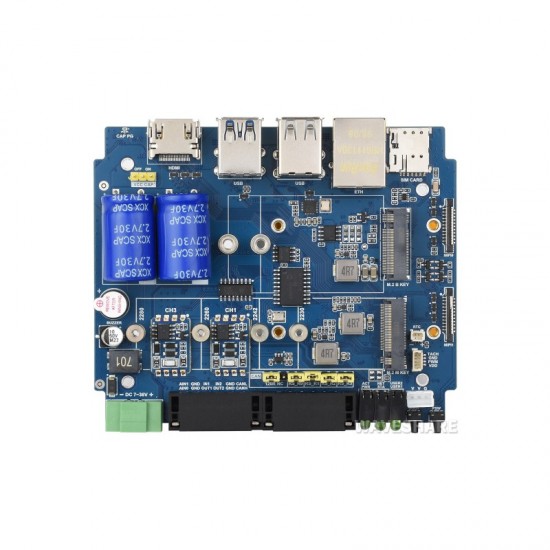

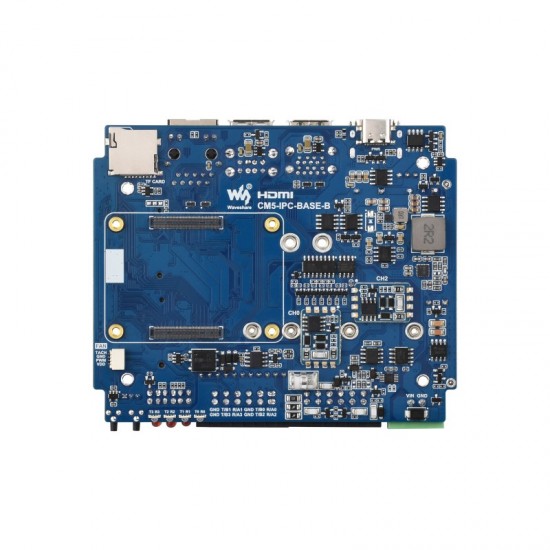

- CM5-IPC-BASE-B-4RS485 baseboard x1

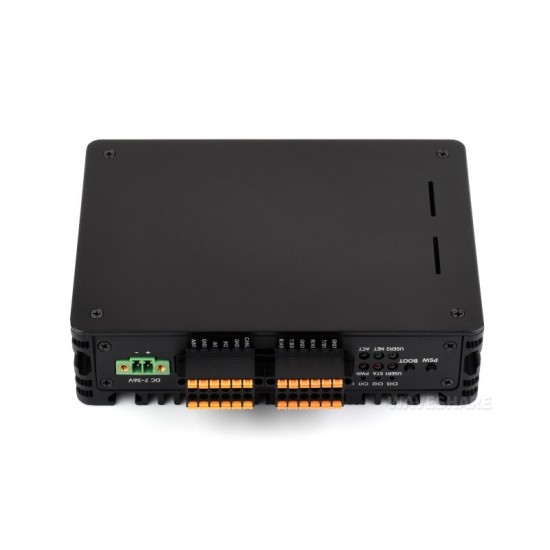

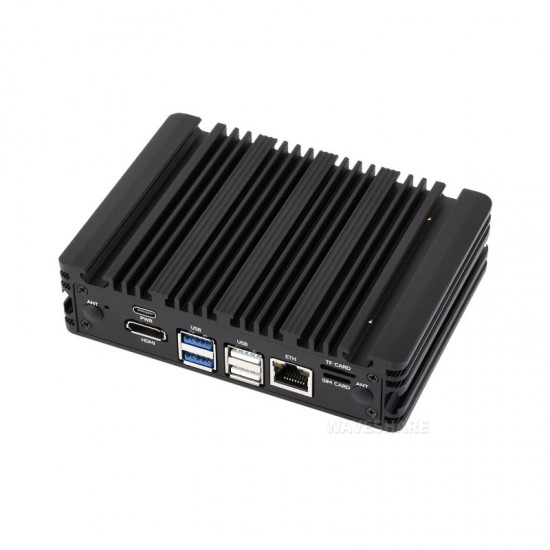

- CM5-HMI-BOX-B metal case x1
- Antenna rubber plug 6mm x2
- 2PIN 3.5mm pitch screw terminal x1
- Power adapter cable 15cm x1
- Rail-mount buckle x1
- 6PIN 3.5mm pitch double-layer terminal block (2PCS) x1
- Pink thermal tapes x1
- Screwdriver x1
- Screws pack x1
Dimensions
