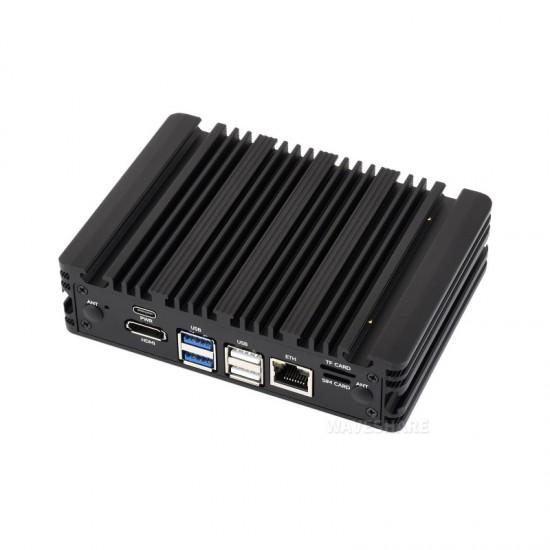

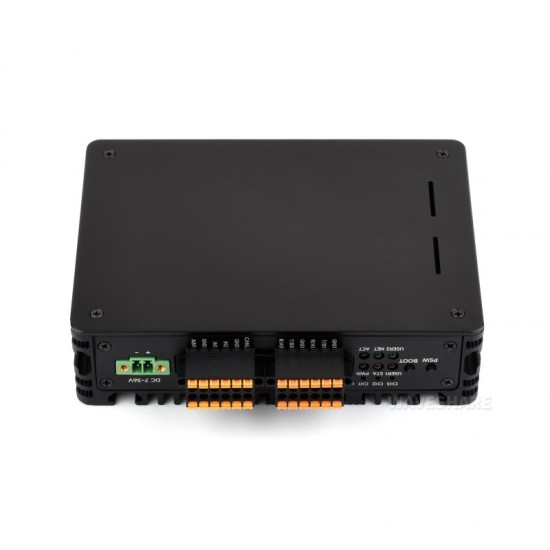

Waveshare Industrial Computer For Raspberry Pi Compute Module 5 (NOT included), 1000M Ethernet RJ45 port, Supports RS485 And 4G/5G Communication - 2 Ports RS485 + 2 Ports RS232
The Waveshare Industrial Computer for Raspberry Pi Compute Module 5 is a compact and versatile industrial computing platform designed for automation, industrial communication, IoT, and edge-computing applications. It is designed to work with the Raspberry Pi Compute Module 5 (CM5), which is NOT included with this product.
The industrial computer provides a 1000M Gigabit Ethernet RJ45 port for high-speed network communication and supports 4G/5G communication for cellular connectivity in remote or mobile applications. For industrial device integration, it features 2 × RS485 ports and 2 × RS232 ports, allowing multiple serial devices, sensors, meters, PLCs, and controllers to be connected simultaneously.
With its industrial-oriented interfaces and flexible communication options, this Waveshare platform is suitable for industrial automation, smart monitoring, data acquisition, IoT gateways, remote equipment management, and edge computing. Its combination of Ethernet, cellular, RS485, and RS232 interfaces makes it a practical solution for connecting Raspberry Pi-based systems to a wide range of industrial equipment.
User Manual / Datasheet / Example Codes Etc.
Specifications
- CM5 socket: Suitable for all variants of Compute Module 5
- Networking: 1000M Ethernet RJ45 port
- USB: USB 3.2 Gen1 port × 2
- USB: 2.0 port × 2
- Video: HDMI port × 1, supports 4K display output
- M.2
- M.2 M KEY (PCIe Gen2/3 × 1, 2230 / 2242 / 2260 / 2280)
- M.2 B KEY, supports connecting 4G / 5G communication module
- Storage: TF card socket for Compute Module 5 Lite (without eMMC) variants
- Serial Interface
- Options for 2 × RS485 + 2 × RS232 version or 4 × RS485 version
- 1 × CAN with up to 1Mbps communication rate
- Digital Input/Output: 2 × digital outputs + 2 × digital inputs
- Analog Input: 2 × ADC analog inputs (Supports 4 ~ 20mA current acquisition by desoldering components)
- Fan header: 5V, 2 × 4PIN JST-SH PWM fan headers (Select one)
- Buzzer: 1-ch controllable buzzer
- Other: Onboard EEPROM and encryption chip
- Power Input: 7V ~ 36V wide voltage range screw terminal, 5V 5A Type-C port
- Dimensions: 132.50 × 92.00 × 34.50 (mm)

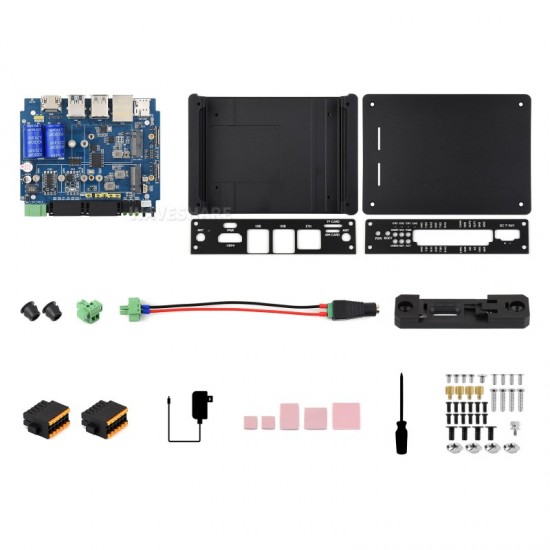

Package Includes

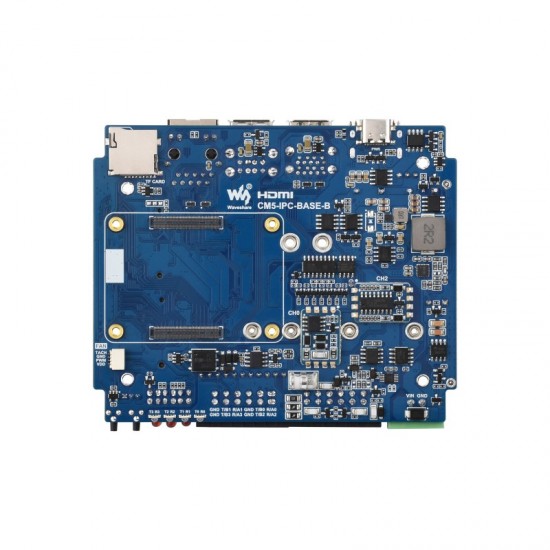

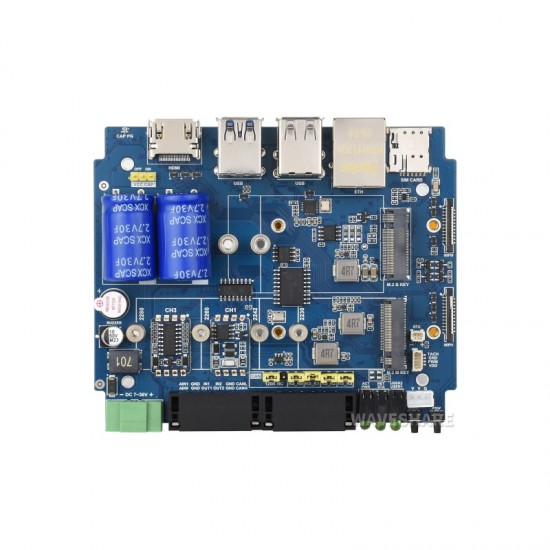

- CM5-IPC-BASE-B-2RS485 baseboard x1
- CM5-HMI-BOX-B metal case x1
- Antenna rubber plug 6mm x2
- 2PIN 3.5mm pitch screw terminal x1
- Power adapter cable 15cm x1
- Rail-mount buckle x1
- 6PIN 3.5mm pitch double-layer terminal block (2PCS) x1
- Pink thermal tapes x1
- Screwdriver x1
- Screws pack x1

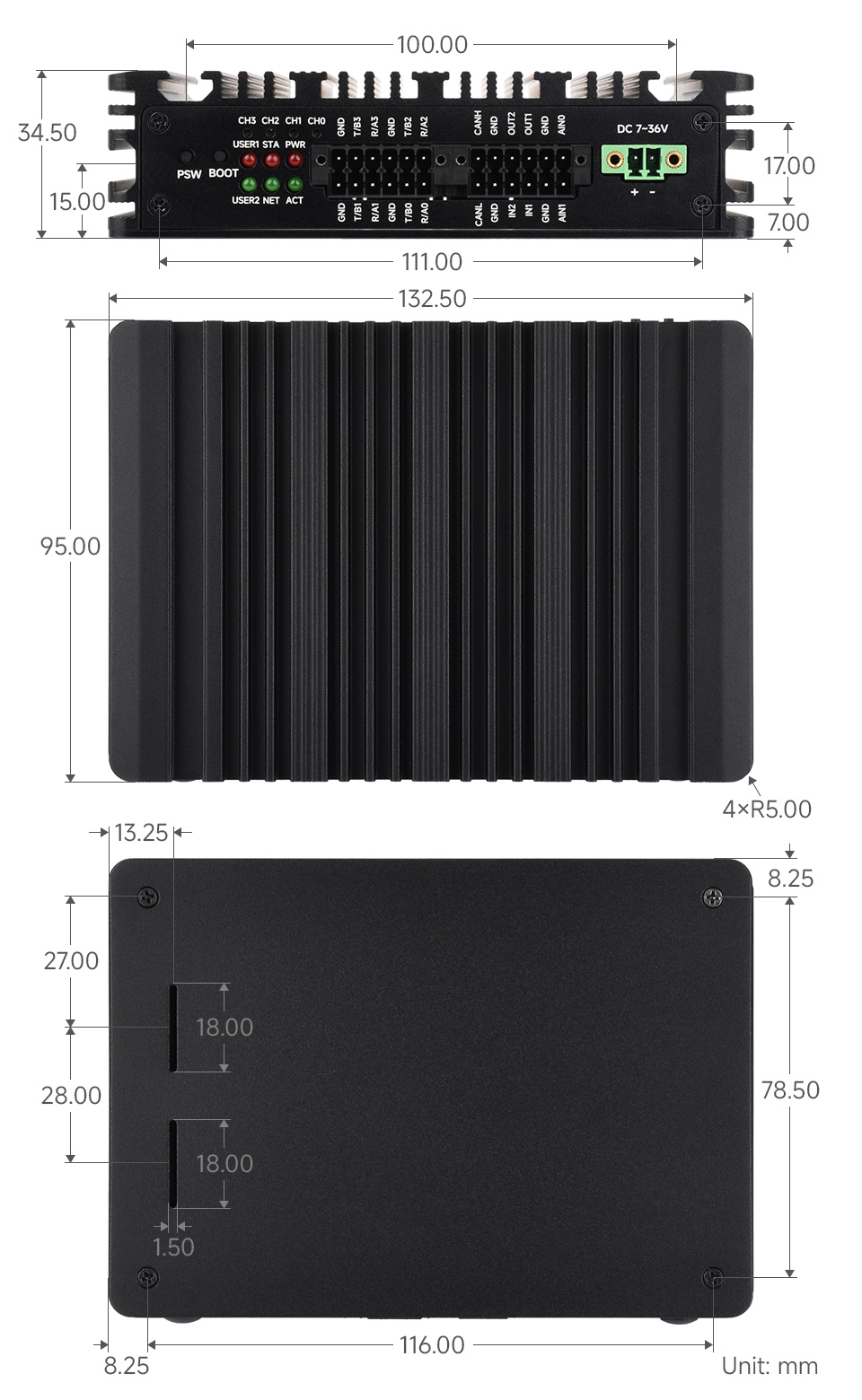

Dimensions
