ESP32-C6 1.64inch AMOLED Touch Display Development Board, 280 × 456 Resolution, 16.7M Color, QSPI Interface, Supports Wi-Fi 6 And BLE 5 (Unsolder Version)

The ESP32-C6-Touch-AMOLED-1.64 is a low-cost, high-performance microcontroller development board designed by Waveshare. Onboard 1.64inch AMOLED display, capable of smoothly running GUI programs such as LVGL. Onboard rich peripheral resources such as QMI8658 6-axis IMU, TF card slot, and Lithium Batt header, while also adapting USB, UART, I2C and multiple MUX_GPIO interfaces for strong expandability. It is ideal for the quick development of the HMI and other ESP32-C6 applications.

User Manual / Datasheet / Example Codes Etc.

Features

Equipped with a high-performance 32-bit RISC-V processor with clock speed up to 160 MHz, and a low-power 32-bit RISC-V processor with clock speed up to 20MHz
Integrated Wi-Fi 6, Bluetooth 5 and IEEE 802.15.4 (Zigbee 3.0 and Thread) wireless communication, with superior RF performance, onboard antenna, and supports switching to an external antenna by resoldering an onboard resistor
Built-in 320KB ROM, 512KB HP Static RAM, 16KB LP Static RAM, with external 16MB Flash
Onboard 1.64inch AMOLED capacitive touch display, 280 × 456 resolution, 16.7M color
Built-in CO5300 display driver and FT6146 capacitive touch chip, using QSPI and I2C communication respectively
Onboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope) for motion gesture detection, step counting, and more
Onboard PWR button, along with programmable BOOT button for customizable functionality and flexible development
Onboard 3.7V MX1.25 Lithium Batt recharge/discharge header
Onboard TF card slot, enabling external storage for pictures or files
Onboard USB Type-C port for power supply, program downloading, and debugging, making development more convenient
Adapting I2C, UART and USB pins for connecting peripherals and debugging, enabling flexible configuration of peripheral functions
Adopts CNC-machined case with precision-wrapped edges for better protection, nice looking and more durable

Specifications

Display Panel: AMOLED
Resolution: 280 × 456
Brightness: 350 cd/㎡
Communication Interface: QSPI
Touch: Supported
Display Size: 1.64 inch
Display Colors: 16.7M
Contrast Ratio: 60000:1
Driver IC: CO5300
Touch IC: FT6146

Package Includes

ESP32-C6-Touch-AMOLED-1.64 x1
Black pinheader x2

Pin Definition

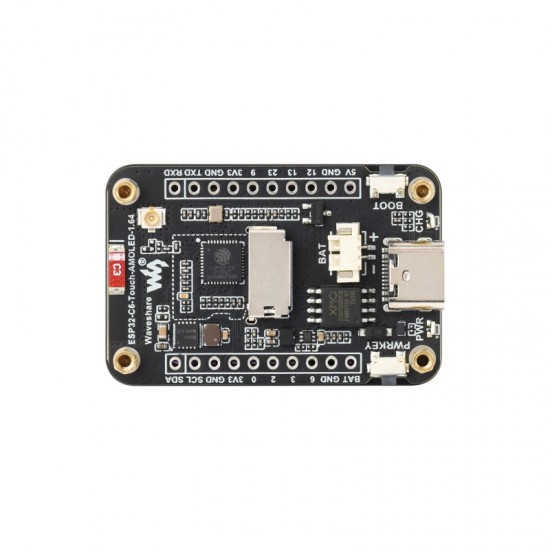

What's On Board

Dimensions
