Name: ESP32-C6 1.69inch Touch Display Development Board, 240×280 Pixels, Supports Wi-Fi 6 / BLE 5, 160MHz RISC-V Processor, AI Speech, ESP32 With Display
Brand: WaveShare Electronics
SKU: 31538
Price: 2190.00 INR
Availability: InStock

ESP32-C6 1.69inch Touch Display Development Board, 240×280 Pixels, Supports Wi-Fi 6 / BLE 5, 160MHz RISC-V Processor, AI Speech, ESP32 With Display

WaveShare Electronics

ESP32-C6 1.69inch Touch Display Development Board, 240×280 Pixels, Supports Wi-Fi 6 / BLE 5, 160MHz RISC-V Processor, AI Speech, ESP32 With Display

Based on 0 reviews. - Write a review

₹2,190.00

₹1,855.93 + 18% GST

All Inclusive, Shipping Calculated at Checkout

Assured Cashback of ₹ 19
B2B GST Credit Available

Price in reward points: 1856

Stock: 4 in Stock
SKU: 31538
Delivery Time
Bulk & B2B RFQ

Add to Cart

Buy Now

Plan to Buy Later ? Add to Wish List

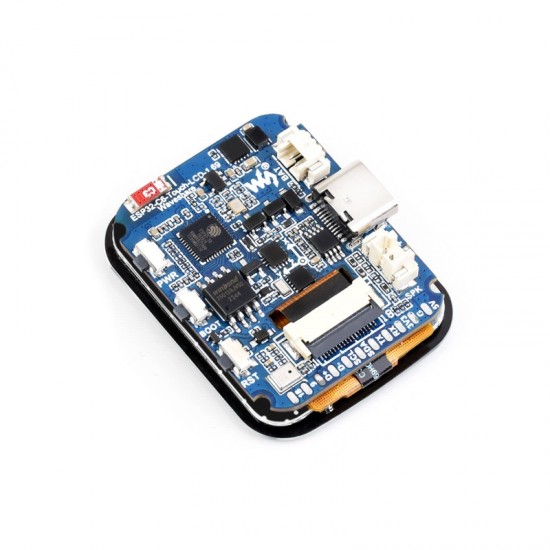

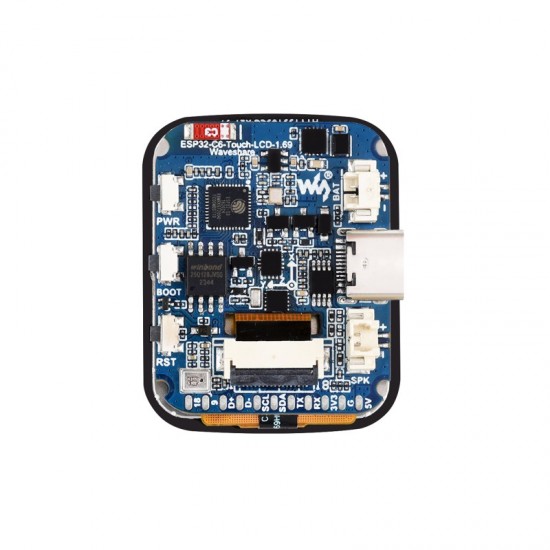

ESP32-C6-Touch-LCD-1.69 is a tiny size, low-cost, high-performance MCU board designed by Waveshare. Onboard 1.69inch capacitive touch LCD display, Lithium battery recharge manager, audio codec chip, 6-axis sensor (3-axis accelerometer and 3-axis gyroscope), RTC chip, and so on, which makes it easy for you to develop and integrate into products quickly.

Features

Equipped with a high-performance 32-bit RISC-V processor with clock speed up to 160 MHz, and a low-power 32-bit RISC-V processor with clock speed up to 20MHz
Integrated WiFi 6, Bluetooth 5 and IEEE 802.15.4 (Zigbee 3.0 and Thread) wireless communication, with superior RF performance
Built-in 320KB ROM, 512KB HP SRAM, 16KB LP SRAM and 16MB Flash memory
Type-C connector for easier use

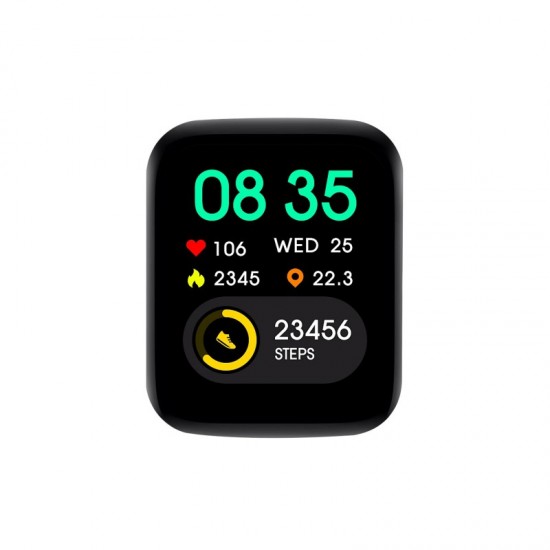

Onboard 1.69inch LCD display for clear color picture display, 240 × 280 resolution, 262K color
Built-in ST7789V2 driver chip, using SPI communication, effectively saving the IO resources
Onboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope) for detecting motion gestures, counting steps, etc.
Onboard PCF85063 RTC chip for RTC function requirement
Onboard RST, BOOT and a programmable side button for easy custom function development
Onboard 3.7V MX1.25 Lithium battery recharge/discharge header
Onboard ES8311 audio codec chip, microphone, and speaker for AI interaction
Reserved GPIO, I2C, USB, and UART pads for external device connection and debugging, enabling flexible peripheral configuration
Supports flexible clock, module power supply independent setting, and other controls to realize low power consumption in different scenarios

Resources

User Manual / Datasheet / Example Codes Etc.

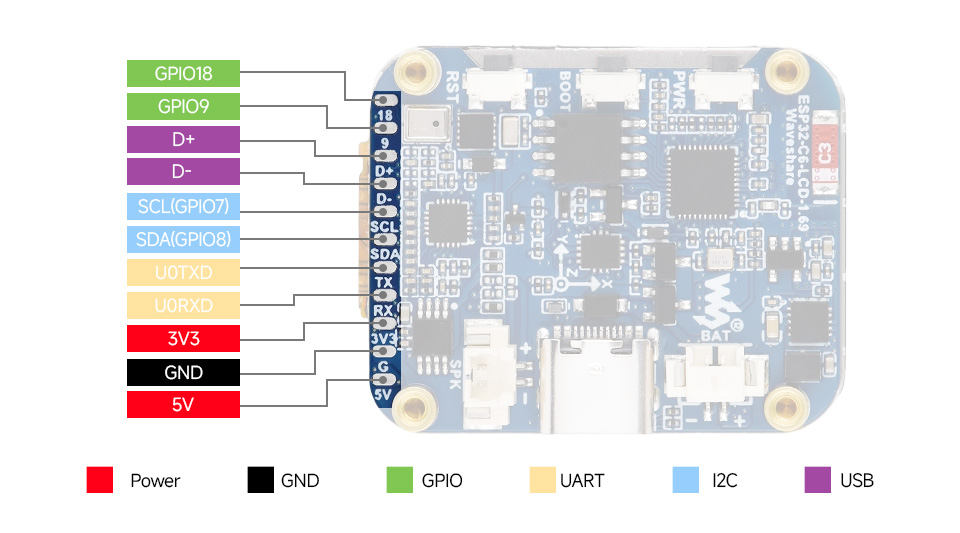

Pinouts

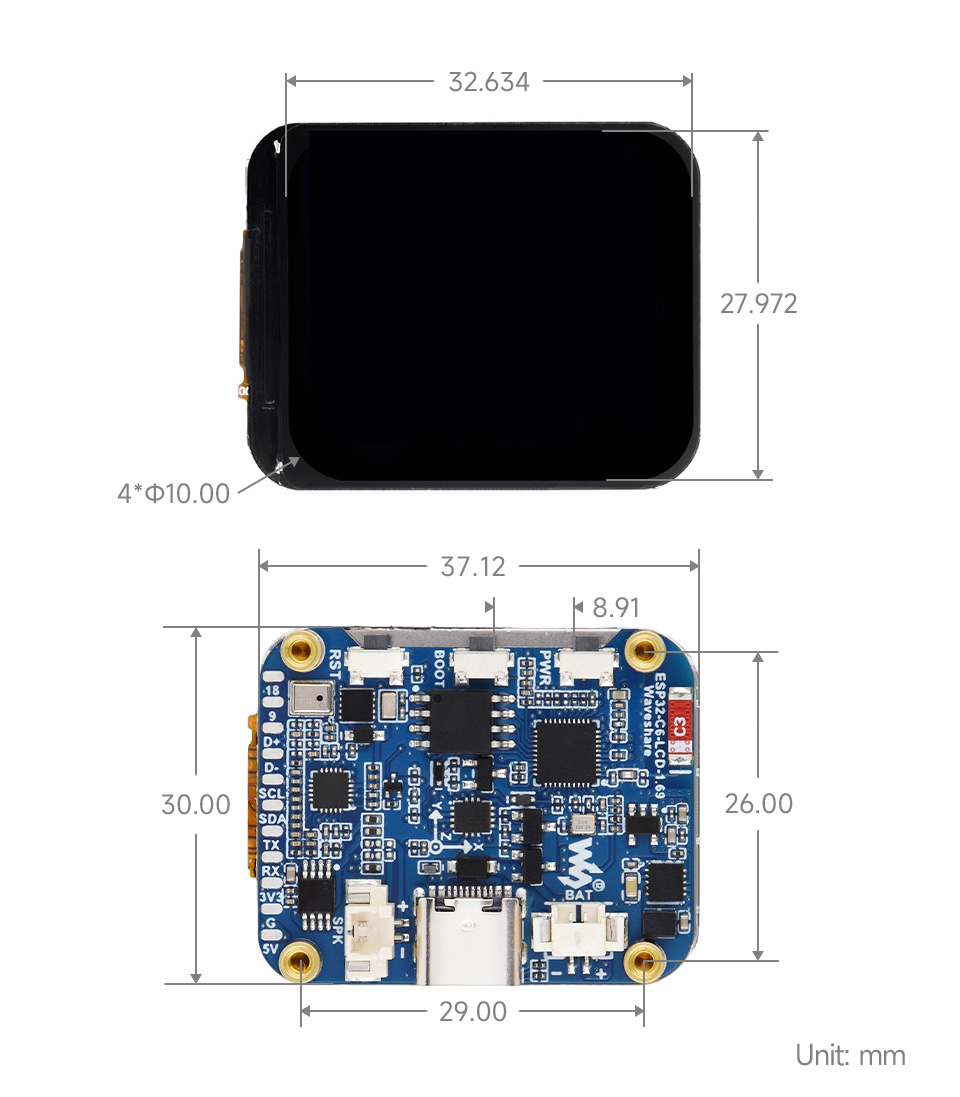

Dimensions
