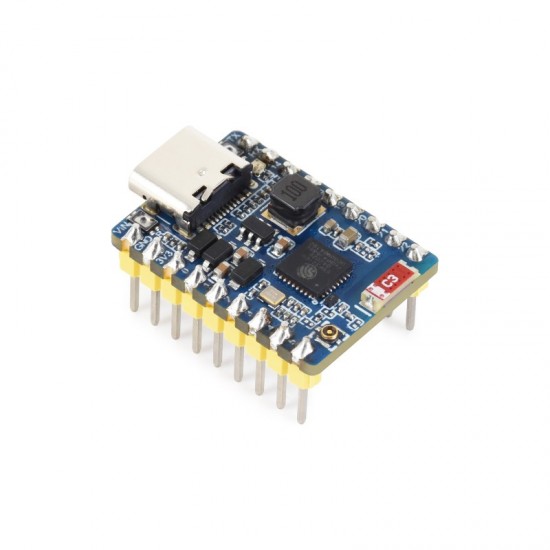

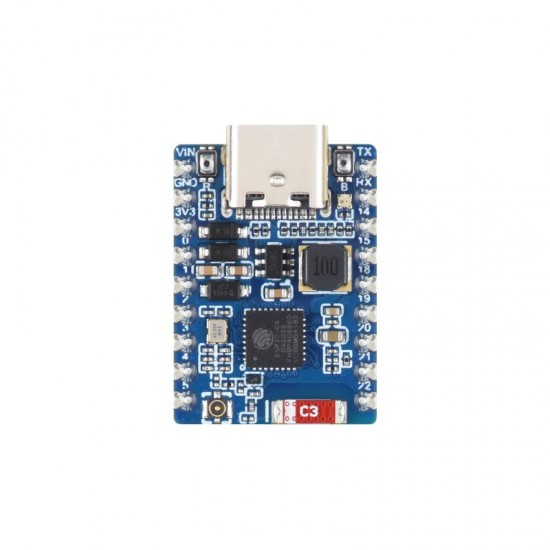

Waveshare ESP32-C6 Mini Wi-Fi 6 Development Board Type B, 5 ~ 36V Wide Voltage Power Supply, Supports Bluetooth 5, IEEE 802.15.4 (Zigbee 3.0 and Thread) - Solder Version
The Waveshare ESP32-C6 Mini Wi-Fi 6 Development Board Type B – Solder Version is a compact, high-performance IoT development board built around the ESP32-C6 wireless MCU, designed for modern smart devices, industrial control, sensor networks, and embedded automation projects. Featuring a wide 5V to 36V DC input range, this board enables flexible power integration across industrial and mobile applications while delivering advanced wireless connectivity.
Powered by a 32-bit RISC-V architecture, the ESP32-C6 supports 2.4GHz Wi-Fi 6, Bluetooth 5 (LE), and IEEE 802.15.4 communication protocols including Zigbee 3.0 and Thread, making it suitable for Matter-ready and multi-protocol IoT ecosystems. The soldered version provides improved assembly convenience and reliable integration into embedded systems and custom hardware designs.
With support for ESP-IDF, Arduino, and a rich GPIO interface, developers can rapidly build connected products ranging from smart home controllers and wireless gateways to low-power edge devices and industrial monitoring solutions.
User Manual / Datasheet / Example Codes Etc.
Features
- ESP32-C6 based wireless development board
- Supports Wi-Fi 6 (802.11ax) for efficient wireless networking
- Bluetooth 5 (LE) support with enhanced low-power connectivity
- Compatible with IEEE 802.15.4, Zigbee 3.0, and Thread protocols
- Wide 5V–36V DC power input for flexible deployment
- Compact solder-type design for embedded integration
- High-performance 32-bit RISC-V processor architecture
- USB interface for programming and debugging
- Supports ESP-IDF and Arduino development environments
- Suitable for smart home, industrial IoT, gateway, and automation applications
specifications
- Equipped with a high-performance 32-bit RISC-V processor with clock speed up to 160 MHz, and a low-power 32-bit RISC-V processor with clock speed up to 20MHz
- Built-in 320KB ROM, 512KB HP Static RAM, 16KB LP Static RAM and 8MB Flash memory
- Integrated Wi-Fi 6, Bluetooth 5 and IEEE 802.15.4 (Zigbee 3.0 and Thread) wireless communication, with superior RF performance
- Onboard ceramic antenna (default) and IPEX 4 antenna socket, allowing antenna selection via GPIO7
- Supports 5 ~ 36V wide voltage power supply for industrial applications
- Castellated module, allows soldering directly to carrier boards
- Supports flexible clock, module power supply independent setting, and other controls to realize low power consumption in different scenarios
- Onboard USB Type-C port, adapting 22 × GPIO pins for flexible peripheral function configuration
Package Includes

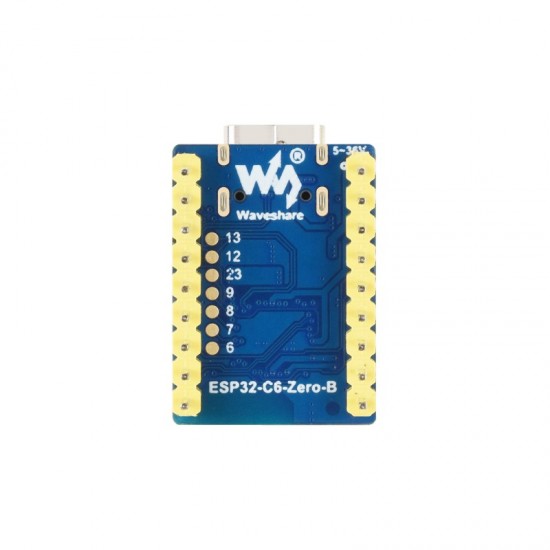

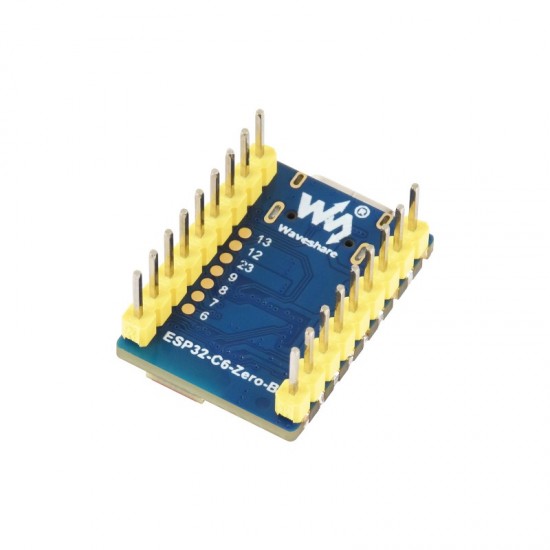

- 1x ESP32-C6-Zero-B with pre-soldered headers
What's On Board
Pin definition
Dimensions
