ESP32-P4-WIFI6 3.5inch Smart Vision Development Board, 320 × 480 Resolution, Equipped With OV5647 5MP Camera, Built-in Microphone And Speaker, Supports Wi-Fi 6 And BLE 5, [Battery Not Included]

The ESP32-P4-WIFI6-Touch-LCD-3.5 is a high-performance development board based on ESP32-P4 controller with RISC-V 32-bit dual-core and single-core processors. Equipped with 3.5inch IPS touch display, highly integrated power management chip, and low-power audio codec chip, features rich human-machine interfaces including MIPI-CSI (with integrated Image Signal Processor), it also supports USB OTG 2.0 HS for high-speed connectivity.

The ESP32-P4 chip integrates the Digital Signature Peripheral and a dedicated Key Management Unit, ensuring secure data and operations. Specifically designed for high-performance and high-security applications, to meet the higher requirements of embedded applications such as Human-Machine interaction, efficient edge computing, and IO expansion.

User Manual / Datasheet / Example Codes Etc.

Features

High-performance MCU with RISC-V 32-bit dual-core and single-core processors
Onboard ESP32-C6H8 module serving as a Wi-Fi 6 co-processor, extending Wi-Fi 6 and BLE 5 capabilities for ESP32-P4
128KB HP ROM, 16KB LP ROM, 768KB HP L2MEM, 32KB LP Static RAM, 8KB TCM
Powerful image and voice processing capability. Provides image and voice processing interfaces including JPEG Codec, Pixel Processing Accelerator, Image Signal Processor, H264 encoder
32MB PSRAM in the chip's package, with onboard 16MB Nor Flash
Onboard Type-C ports, more convenient, better device compatibility
Onboard 3.5inch capacitive touch IPS display for clear color picture display, 320 × 480 resolution, 262K color
Built-in ST7796 display driver and FT6336 capacitive touch chip, using SPI and I2C communication respectively, effectively saving the IO resources
Onboard programmable PWM and BOOT buttons for easy custom function development
Onboard 3.7V MX1.25 Lithium Batt recharge/discharge header
Adapting I2C, UART, USB and multiple GPIOs for external device connection and debugging, enabling flexible peripheral configuration
Onboard TF card slot for extended storage, high-speed data transfer, and enhanced flexibility, suitable for data logging and media playback, simplifying circuit design
Onboard camera interface, supporting OV5647 and other MIPI-CSI cameras
Adopts AXP2101 IC for efficient power management, supports multiple voltage outputs, Batt charging, Batt management, and Batt life optimization, etc.
Security features: Secure Boot, Flash Encryption, cryptographic accelerators, and TRNG. Additionally, hardware access protection mechanisms help to enable Access Permission Management and Privilege Separation

Specifications

DISPLAY PANEL: IPS
DISPLAY SIZE: 3.5inch
Display Resolution: 320 × 480 resolution
display color: 262K
Brightness: 220cd/㎡
Contrast Ratio: 1100:1
Communication Interface: SPI
Display Driver: ST7796
Touch Type: Capacitive touch
Touch IC: FT6336

Package Includes

ESP32-P4-WIFI6-Touch-LCD-3.5 host x1
Screwdriver x1

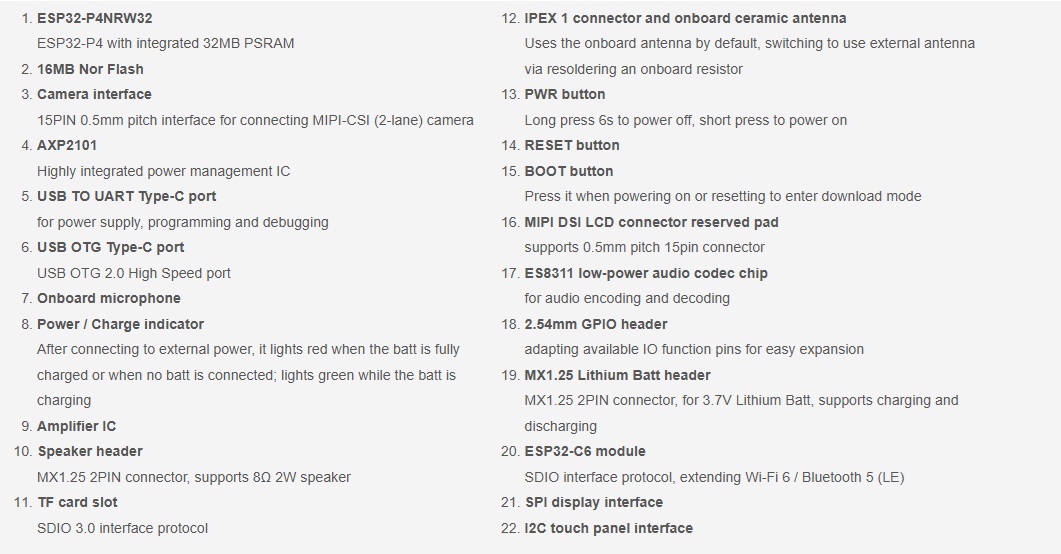

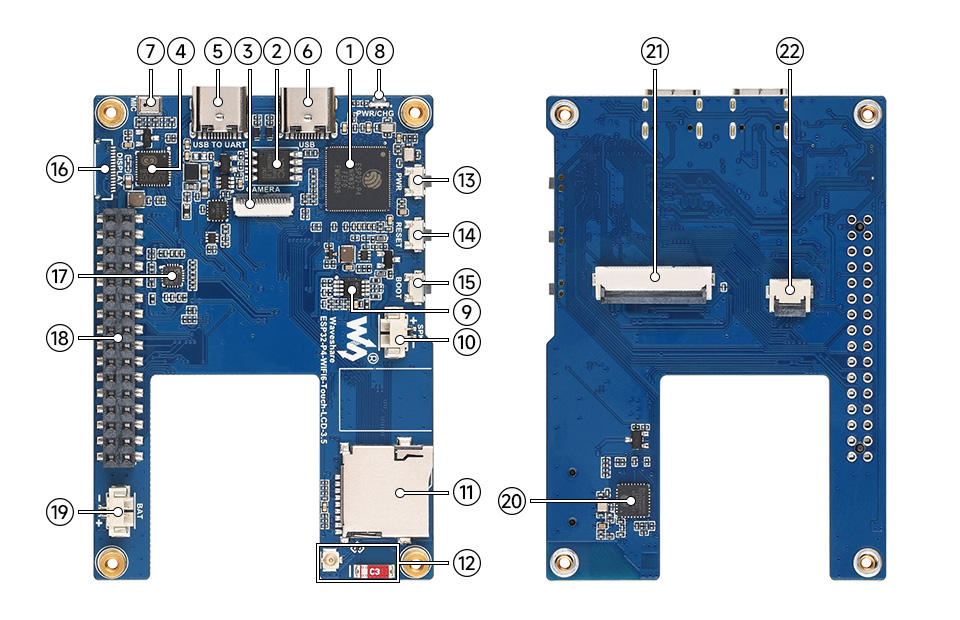

What's On Board

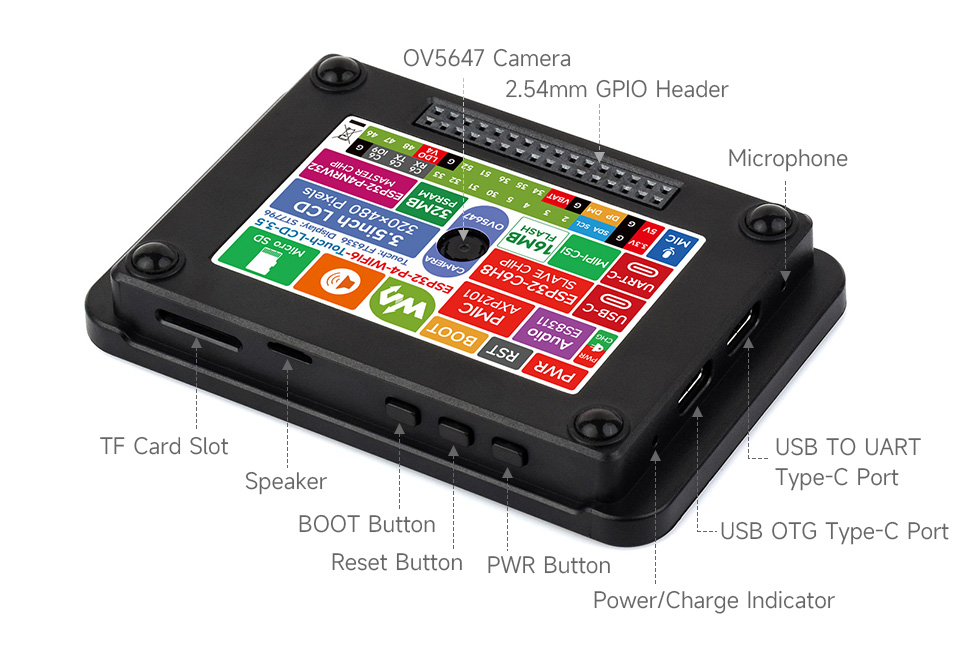

Feature Overview

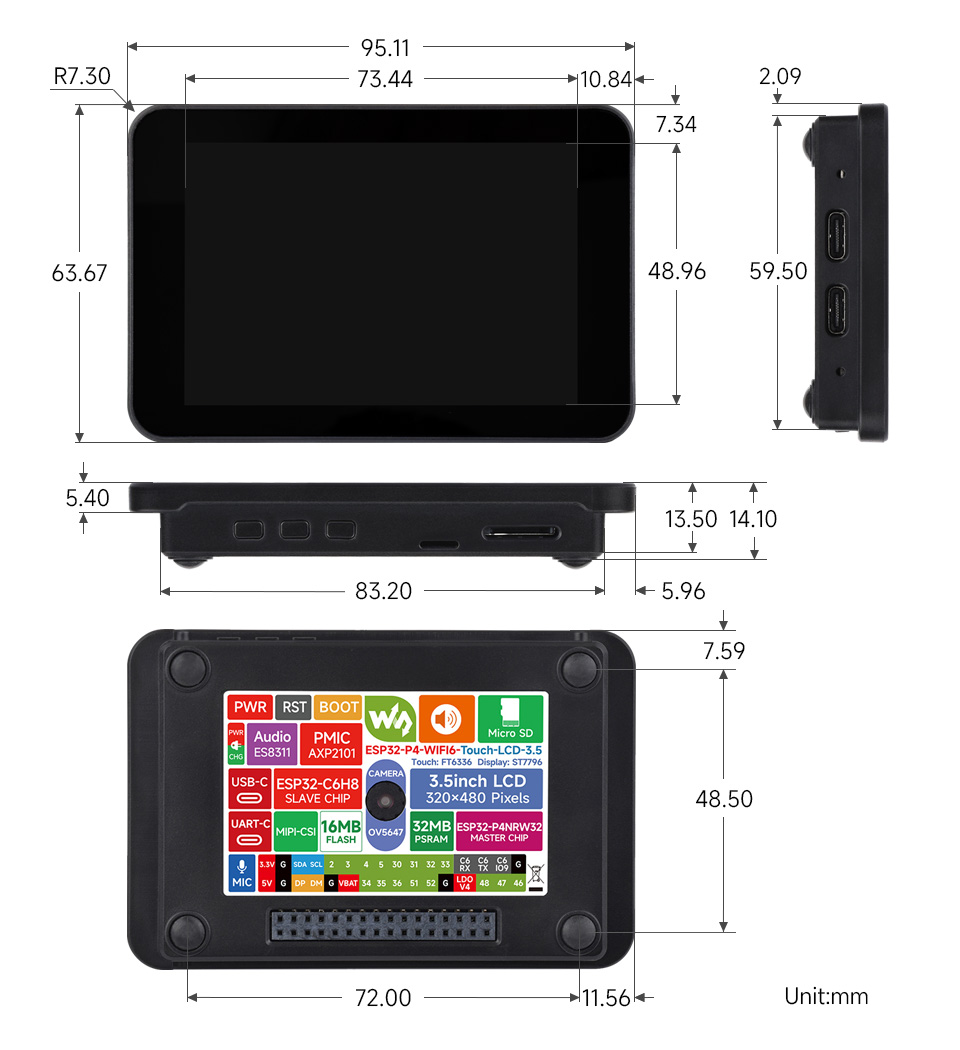

Dimensions
