ESP32-S3 1.28inch Double Eye Round Touch LCD AIoT Development Board, Onboard Dual 1.28inch IPS Displays, 240 × 240 Resolution, Dual-core 240MHz Processor, Supports Wi-Fi / Bluetooth 5

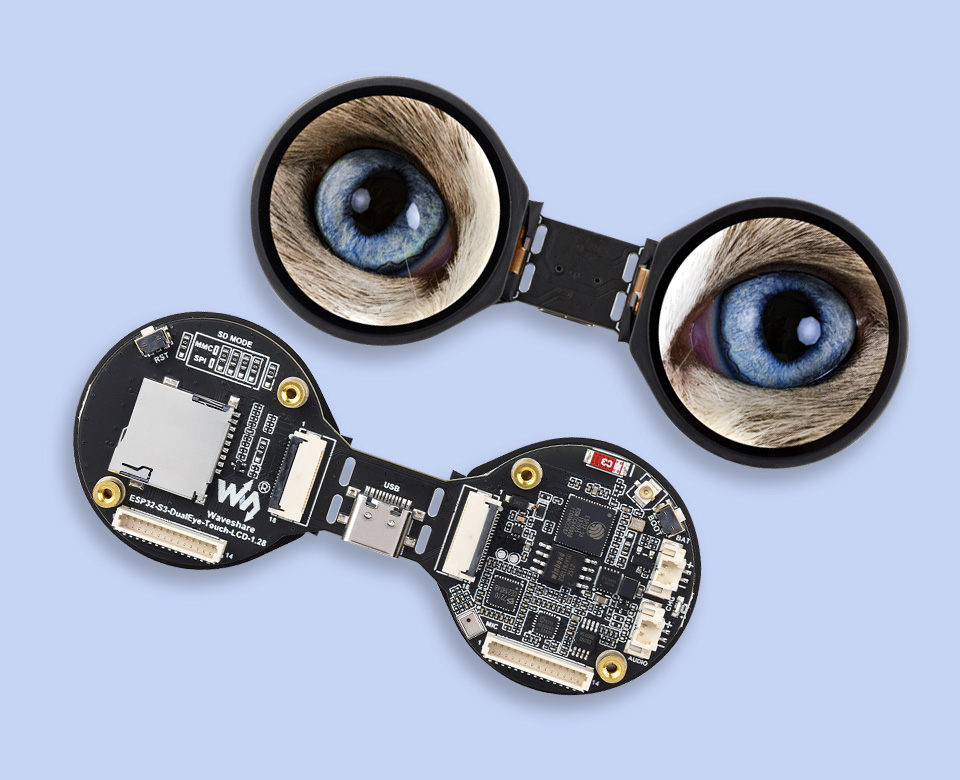

The ESP32-S3-DualEye-Touch-LCD-1.28 is an AIoT microcontroller development board based on ESP32-S3 with double eye LCD displays, designed for makers and electronics enthusiasts, supporting 2.4GHz Wi-Fi and Bluetooth BLE 5. It integrates high-capacity Flash and PSRAM, onboard dual 1.28inch LCD displays which can smoothly run GUI programs such as LVGL. Additionally, it also integrates a microphone, speaker header, Lithium battery recharge circuit, and reserves a TF card slot and DIY expansion connectors. It is suitable for the quick development based on ESP32-S3 such as HMI (Human-Machine Interface), double eye robotic agents, and AI voice-interactive toys. Whether you want to build a robot that can "wink", create an intelligent IoT Interface, design touch-controlled games, or develop futuristic wearable devices, this board is an ideal choice.

User Manual / Datasheet / Example Codes Etc.

Features

Equipped with high-performance Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency
Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE), with onboard antenna
Built-in 512KB SRAM and 384KB ROM, with onboard 8MB PSRAM and 16MB Flash
Onboard dual 1.28inch LCD displays, 240 × 240 resolution, 65K color, optional for touch function
Onboard ES8311 audio codec and ES7210 audio ADC chip, equipped with standard microphone and speaker header, supports AI speech interaction
Onboard TF card slot for convenient local storage expansion, and supports the storing and reading of data, images, audio files, and more
Onboard Lithium battery recharge management module, reserved 3.7V Lithium battery power supply header
Onboard SH1.0 14PIN connector, adapting UART, I2C and some IO interfaces, for easy DIY customization

Specifications

Display Features
Display Type: Dual IPS round LCD (“Double Eye”)
Display Size: 2 × 1.28 inch
Resolution: 240 × 240 pixels (each display)
Color Depth: 65K colors
Touch: Capacitive touch
Interface: SPI communication

Package Includes

ESP32-S3-DualEye-Touch-LCD-1.28 x1
SH1.0 14PIN cable ~100mm x1
FFC 18PIN cable ~200mm x1
8Ω 2W MX1.25 2PIN speaker x1

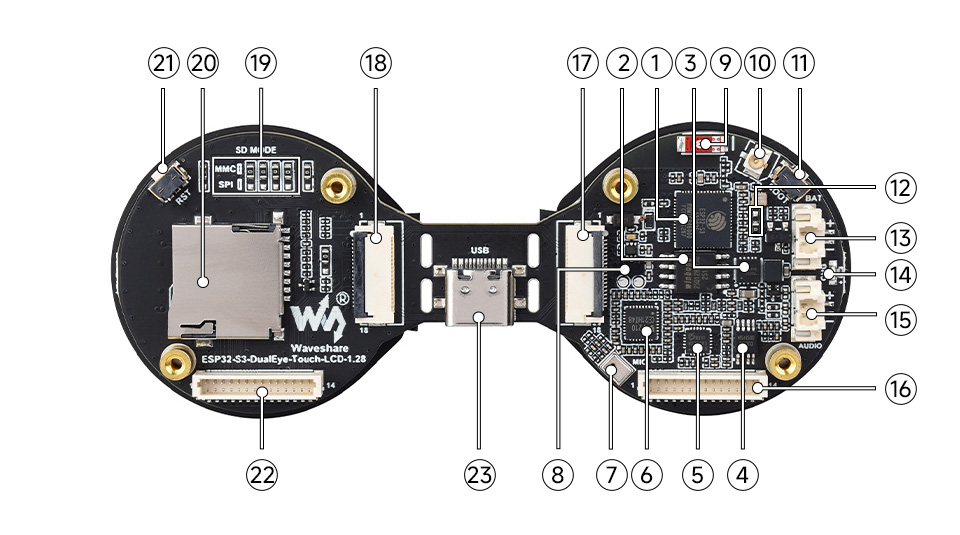

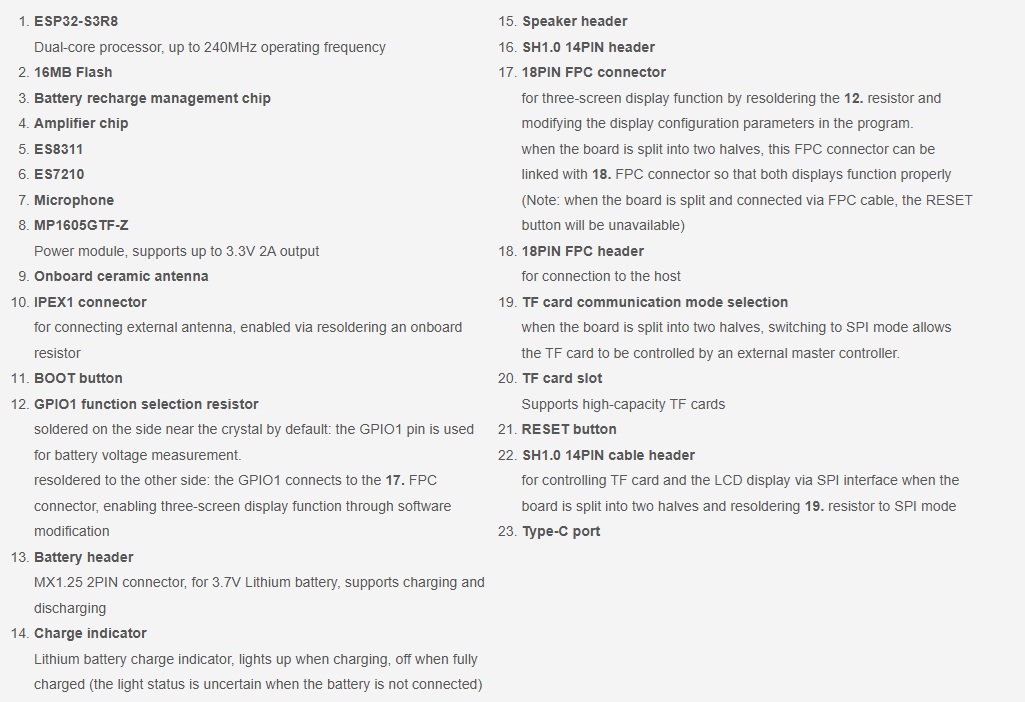

What's On Board

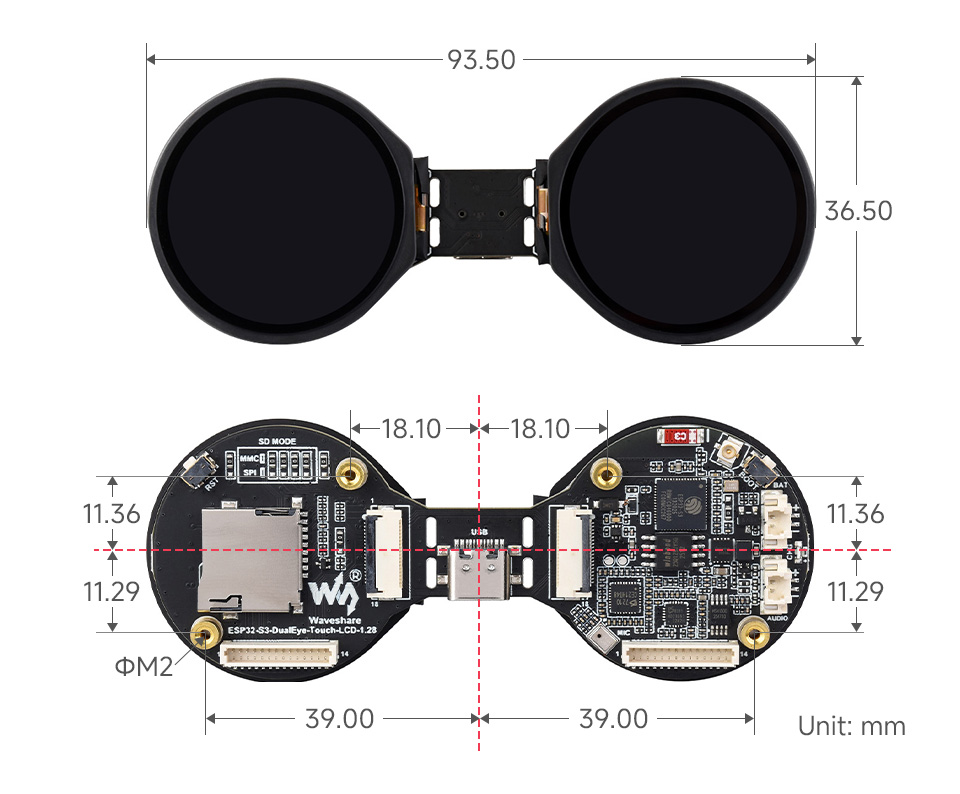

Dimensions
