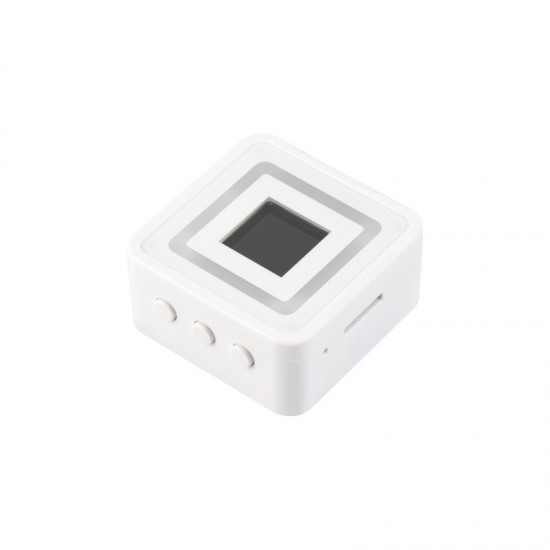

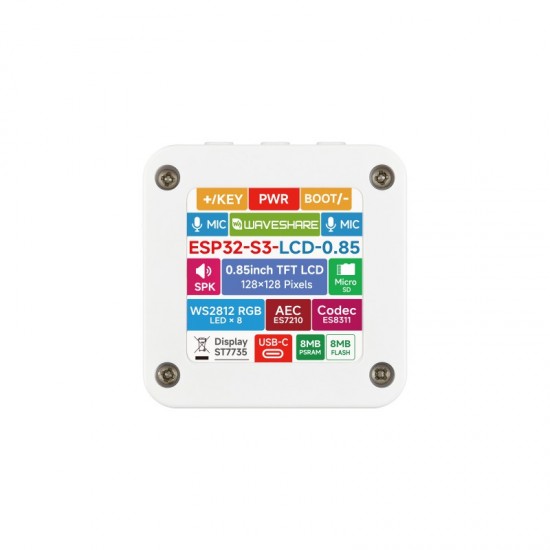

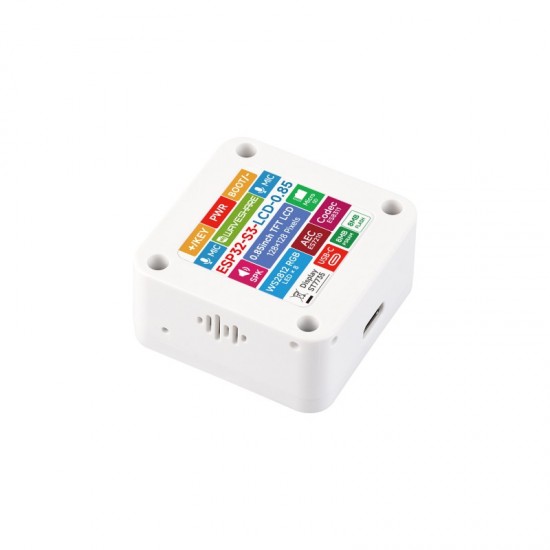

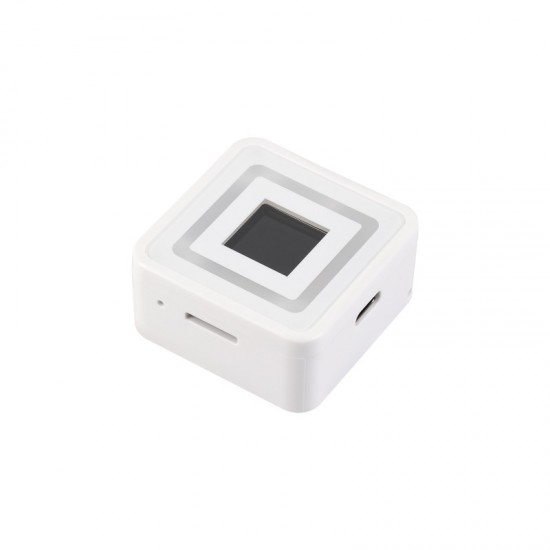

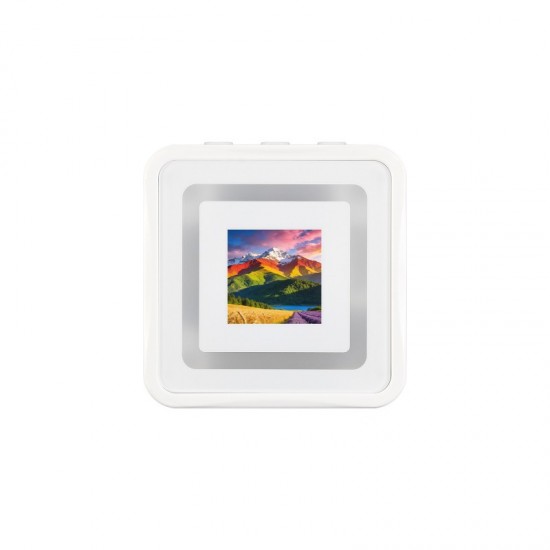

Name: Waveshare ESP32-S3 0.85inch LCD Display Development Board, 128 × 128 Resolution, Onboard Dual Microphones Array And Surround RGB LEDs, Supports 2.4GHz Wi-Fi And BLE [Battery Not Included]
Brand: WaveShare Electronics
SKU: 33877
Price: 1569.00 INR
Availability: OutOfStock

Waveshare ESP32-S3 0.85inch LCD Display Development Board, 128 × 128 Resolution, Onboard Dual Microphones Array And Surround RGB LEDs, Supports 2.4GHz Wi-Fi And BLE [Battery Not Included]

WaveShare Electronics

Waveshare ESP32-S3 0.85inch LCD Display Development Board, 128 × 128 Resolution, Onboard Dual Microphones Array And Surround RGB LEDs, Supports 2.4GHz Wi-Fi And BLE [Battery Not Included]

Based on 0 reviews. - Write a review

₹1,569.00

₹1,329.66 + 18% GST

All Inclusive, Shipping Calculated at Checkout

Assured Cashback of ₹ 13
B2B GST Credit Available

Price in reward points: 1329

Stock: 0 in Stock
SKU: 33877
Delivery Time
Bulk & B2B RFQ

Buy Now NOTIFY WHEN AVAILABLE

Plan to Buy Later ? Add to Wish List

ESP32-S3 0.85inch LCD Display Development Board, 128 × 128 Resolution, Onboard Dual Microphones Array And Surround RGB LEDs, Supports 2.4GHz Wi-Fi And BLE [Battery Not Included]

The ESP32-S3 0.85-inch LCD Display Development Board is a compact and feature-rich embedded development platform designed for IoT, AI, and smart device applications. Powered by the high-performance ESP32-S3 microcontroller, this board integrates a vibrant 0.85-inch LCD display with a resolution of 128 × 128 pixels, delivering clear and sharp visuals for user interfaces, data monitoring, and graphical outputs.

Equipped with an onboard dual microphone array, the board is ideal for voice recognition, audio processing, and AI-based voice interaction projects. The surrounding RGB LEDs enhance visual feedback, enabling dynamic lighting effects for notifications, status indication, or creative designs. With built-in support for 2.4GHz Wi-Fi and Bluetooth Low Energy (BLE), it ensures seamless wireless connectivity for IoT and smart control applications.

Its compact form factor makes it suitable for portable and space-constrained projects, while its compatibility with popular development frameworks such as ESP-IDF and Arduino simplifies development for beginners and professionals alike. This board is perfect for applications like smart home devices, wearable tech prototypes, voice-controlled systems, and interactive displays Battery not included.

User Manual / Datasheet / Example Codes Etc.

Features

Equipped with high-performance Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency
Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE), with onboard antenna
Built-in 512KB Static RAM, 384KB ROM, 8MB Flash memory, and 8MB PSRAM
Type-C port, improving device compatibility, easier to use
Onboard 0.85inch LCD display, 128 × 128 resolution, 65K color
Onboard 8 × surround RGB LEDs, programmable for multiple dynamic lighting effects
Onboard 3.7V MX1.25 Lithium Batt recharge/discharge header
Adapting I2C, UART, and other pin pads for external device connection and debugging, enabling flexible peripheral configuration
Onboard TF card slot for extended storage and fast data transfer, suitable for applications such as data recording and media playback, simplifying circuit design
Onboard ES8311 audio codec chip, dual microphones module, and other resources

Specifications

Operating voltage: 3.3V/5V
Resolution: 128 × 128 pixels
Display panel: IPS
communication interface: 4-wire SPI
Display Size: 15.21 × 15.21 (mm)
Display Color: 65K
Pixel pitch: 39.6 × 118.8 (um)
Driver IC: GC9107

Package Includes

ESP32-S3-LCD-0.85 host x1
PC insulating sheet x1

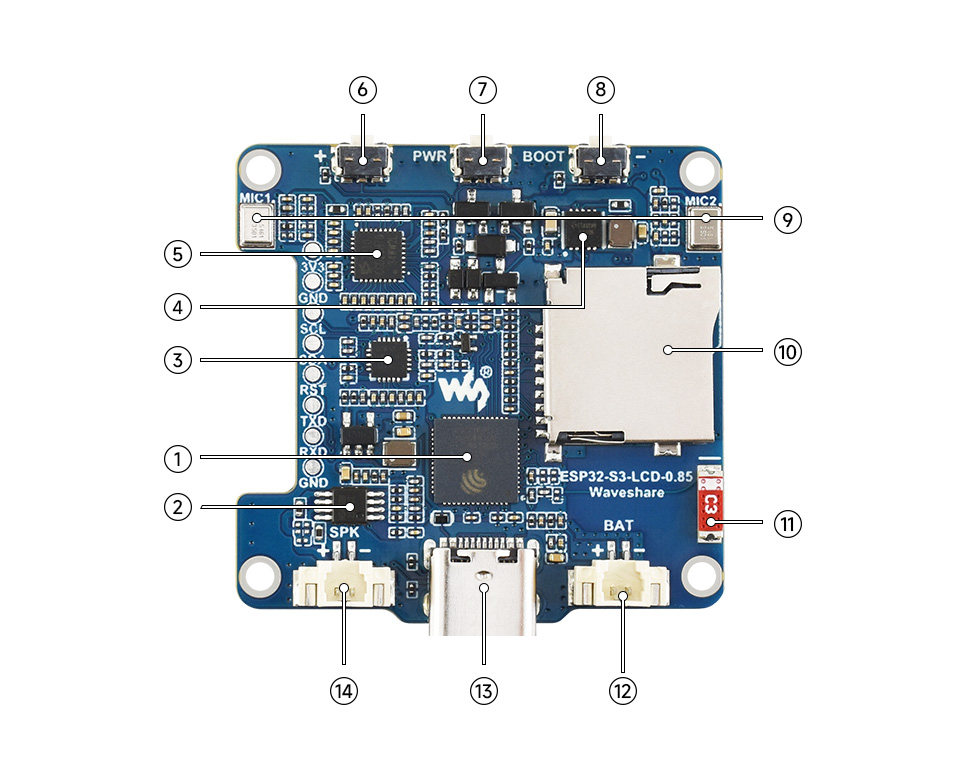

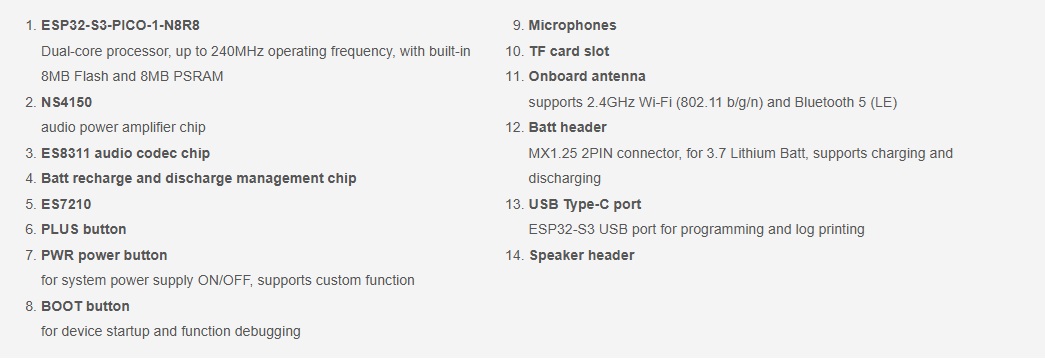

What's On Board

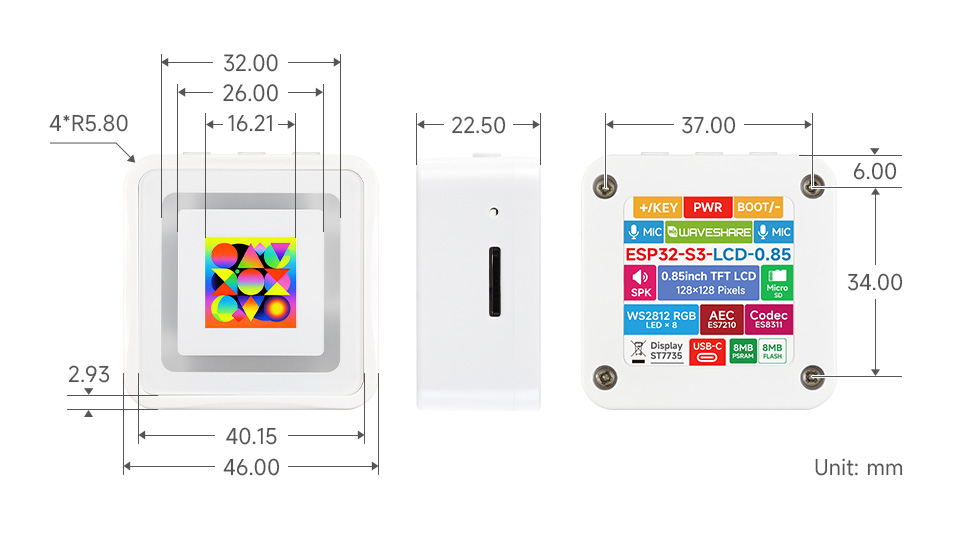

Dimensions
