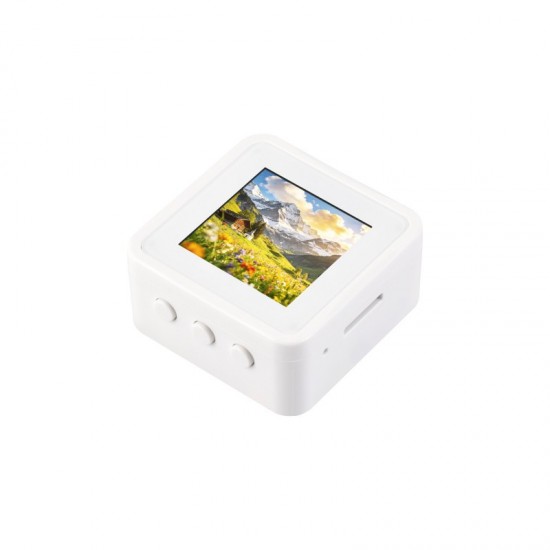

Name: Waveshare ESP32-S3 1.54inch LCD Display Development Board, 240 × 240 Resolution, 262K Color, Supports Dual Microphones, 2.4GHz Wi-Fi And BLE 5 [Battery Not Included]
Brand: WaveShare Electronics
SKU: 33866
Price: 1565.00 INR
Availability: OutOfStock

Waveshare ESP32-S3 1.54inch LCD Display Development Board, 240 × 240 Resolution, 262K Color, Supports Dual Microphones, 2.4GHz Wi-Fi And BLE 5 [Battery Not Included]

WaveShare Electronics

Waveshare ESP32-S3 1.54inch LCD Display Development Board, 240 × 240 Resolution, 262K Color, Supports Dual Microphones, 2.4GHz Wi-Fi And BLE 5 [Battery Not Included]

Based on 0 reviews. - Write a review

₹1,565.00

₹1,326.27 + 18% GST

All Inclusive, Shipping Calculated at Checkout

Assured Cashback of ₹ 13
B2B GST Credit Available

Price in reward points: 1326

Stock: 0 in Stock
SKU: 33866
Delivery Time
Bulk & B2B RFQ

Buy Now NOTIFY WHEN AVAILABLE

Plan to Buy Later ? Add to Wish List

ESP32-S3 1.54inch LCD Display Development Board, 240 × 240 Resolution, 262K Color, Supports Dual Microphones, 2.4GHz Wi-Fi And BLE 5 [Battery Not Included]

This product is designed by Waveshare, featuring a custom-molded square plastic case, offering a compact and premium appearance. Onboard 1.54inch LCD display, 6-axis sensor, dual microphones array, and TF card slot, providing the hardware foundation for display, sensing, voice, and multimedia storage. With these hardware resources, it supports fun interactive mini-games, voice wake-up, conversation interruption, noise reduction, and echo cancellation. It allows access to online AI large model platforms, enabling intelligent voice interaction and continuous upgrades. The factory firmware includes built-in functions such as AI conversation, audio and video playback, photo album, text reading, and a gravity ball game. It can be used directly as an AI chatting toy, while also supporting customization and secondary development.

User Manual / Datasheet / Example Codes Etc.

Features

Equipped with high-performance ESP32-S3R8 Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency
Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE), with onboard antenna
Built-in 512KB Static RAM, 384KB ROM, with onboard 8MB PSRAM and external 16MB flash
Type-C port, improving device compatibility, easier to use
Onboard 1.54inch LCD display for clear color picture display, 240 × 240 resolution, 262K color
Onboard ES7210 audio encoding chip for dual microphones audio capture and echo cancellation
Onboard ES8311 audio codec chip, NS4150B amplifier chip, microphones, and speaker
Onboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope) for detecting motion gesture to expand applications
Adapting I2C, UART, and other pin pads for external device connection and debugging, enabling flexible peripheral configuration
Onboard three customizable function buttons for operations such as single-click, double-click, and long press
Onboard 3.7V MX1.25 Lithium Batt recharge/discharge header
Onboard TF card slot for extended storage and fast data transfer, suitable for applications such as data recording and media playback, simplifying circuit design

Specifications

Display panel: IPS
Display Resolution: 240 × 240 resolution
communication interface: 4-wire SPI
Active Display Area: 27.72 × 27.72 (mm)
Display Size: 1.54inch
Display Color: 262K
Driver IC: ST7789

Package Includes

ESP32-S3-LCD-1.54 host
PC insulating sheet

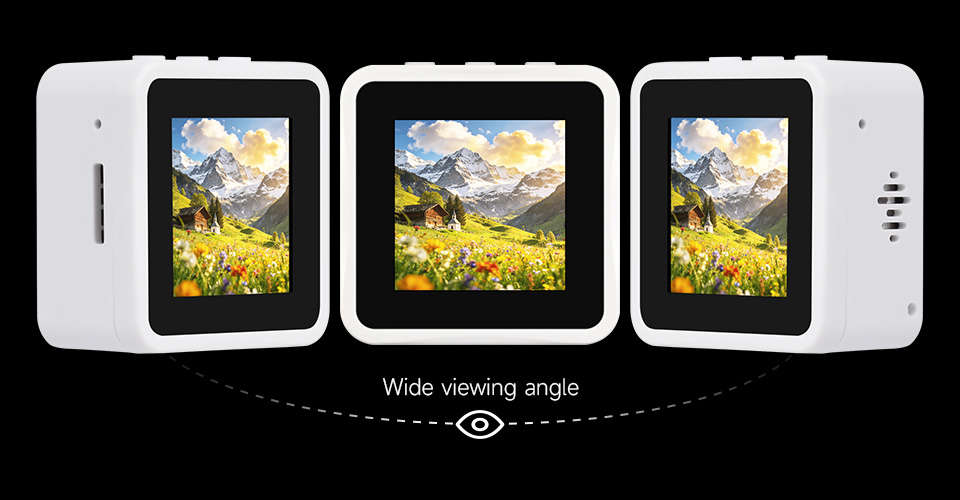

IPS Display Panel

Excellent display performance, 262K color, 240 × 240 resolution, with wide viewing angle

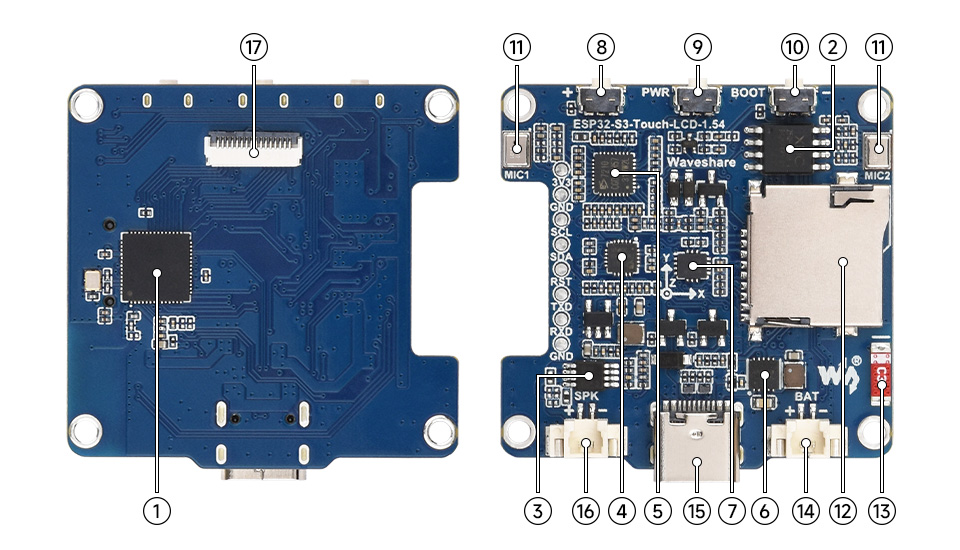

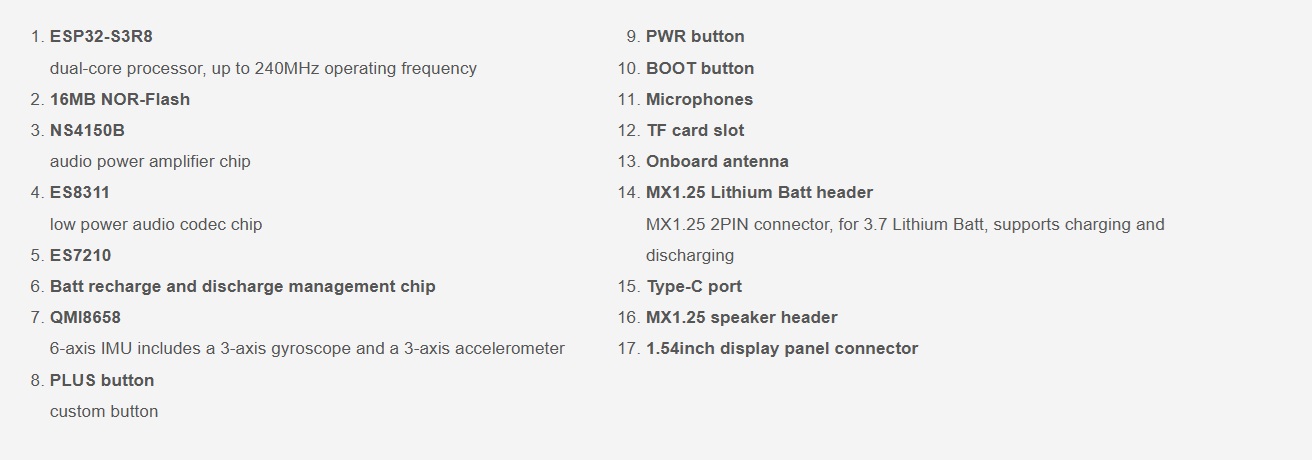

What's On Board

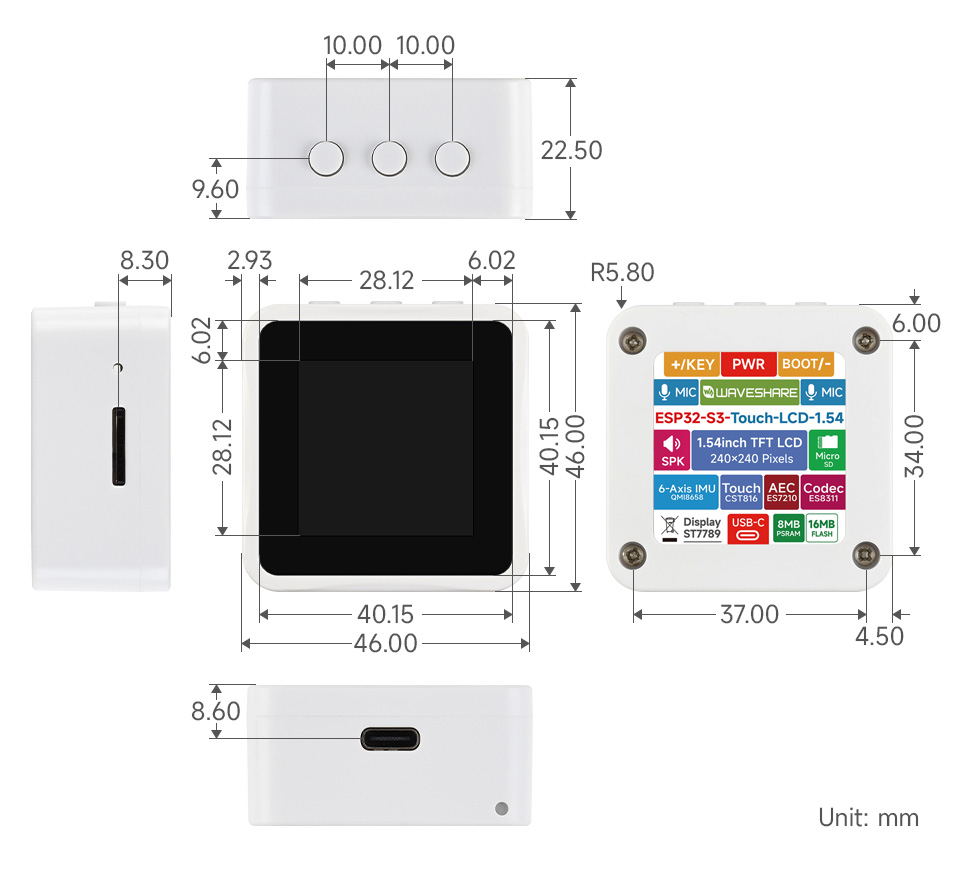

Dimensions
