ESP32-S3 2.16inch AMOLED Display Development Board, 480 × 480 Resolution, 16.7M Color, Supports Dual Microphones, 2.4GHz Wi-Fi And BLE 5 [Battery Not Included]

The ESP32-S3-Touch-AMOLED-2.16 is a high-performance, highly integrated microcontroller development board designed by Waveshare. Tiny size with onboard 2.16inch capacitive AMOLED display, highly integrated power management chip, 6-axis IMU (3-axis accelerometer and 3-axis gyroscope), RTC chip, low power audio codec, echo cancellation circuit, and so on, which makes it easy for you to develop and integrate into the products quickly.


User Manual / Datasheet / Example Codes Etc.


Features

  • Equipped with high-performance ESP32-S3R8 Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency
  • Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE), with onboard antenna
  • Built-in 512KB Static RAM, 384KB ROM, with onboard 8MB PSRAM and external 16MB flash
  • Type-C port, improving device compatibility, easier to use
  • Onboard 2.16inch AMOLED capacitive touch display for clear color picture display, 480 × 480 resolution, 16.7M color
  • Adopts AMOLED screen, featuring advantages of high contrast, wide viewing angle, rich colors, fast response, thinner design, and low power consumption, etc.
  • Built-in CO5300 display driver and CST9220 capacitive touch chip, using QSPI and I2C communication respectively, effectively saving the IO resources
  • Equipped with dual microphones array with noise reduction and echo cancellation circuit, suitable for accurate speech recognition and near/far-field wake-up
  • Onboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope) for detecting motion gesture, counting steps, etc.
  • Onboard PWR and BOOT programmable buttons for easy custom function development
  • Onboard 3.7V MX1.25 Lithium Batt recharge/discharge header
  • Adopts AXP2101 IC for efficient power management, supports multiple voltage outputs, Batt charging, Batt management, and Batt life optimization, etc.

Specifications

  • Display panel: AMOLED
  • Display Resolution: 480 × 480 pixels
  • Brightness: 600 cd/㎡
  • communication interface: QSPI
  • Touch Type: Capacitive touch
  • Display Size: 2.16inch
  • Display Color: 16.7M
  • Contrast Ratio: 100000:1
  • Driver IC: CO5300
  • Touch IC: CST9220


Package Includes

  • ESP32-S3-Touch-AMOLED-2.16 host x1
  • PC insulating sheet x1

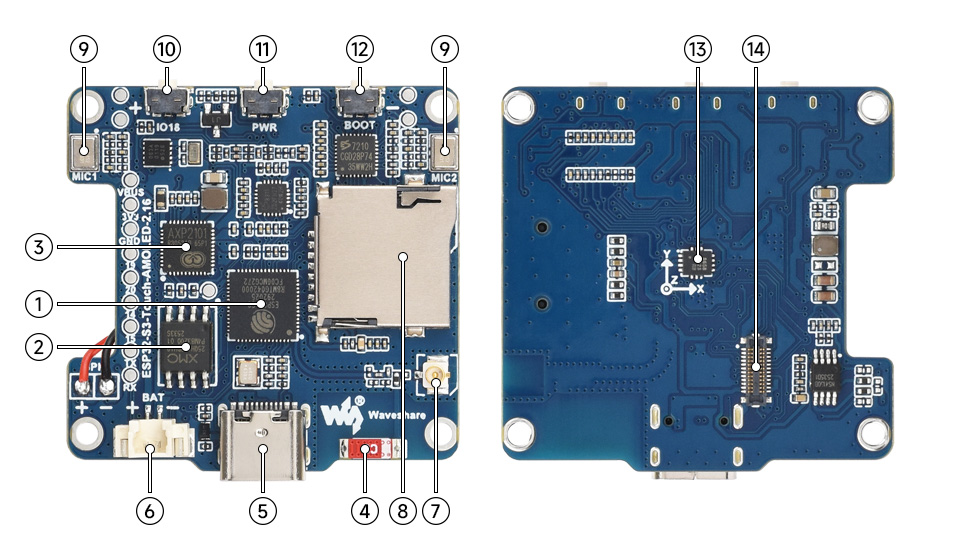

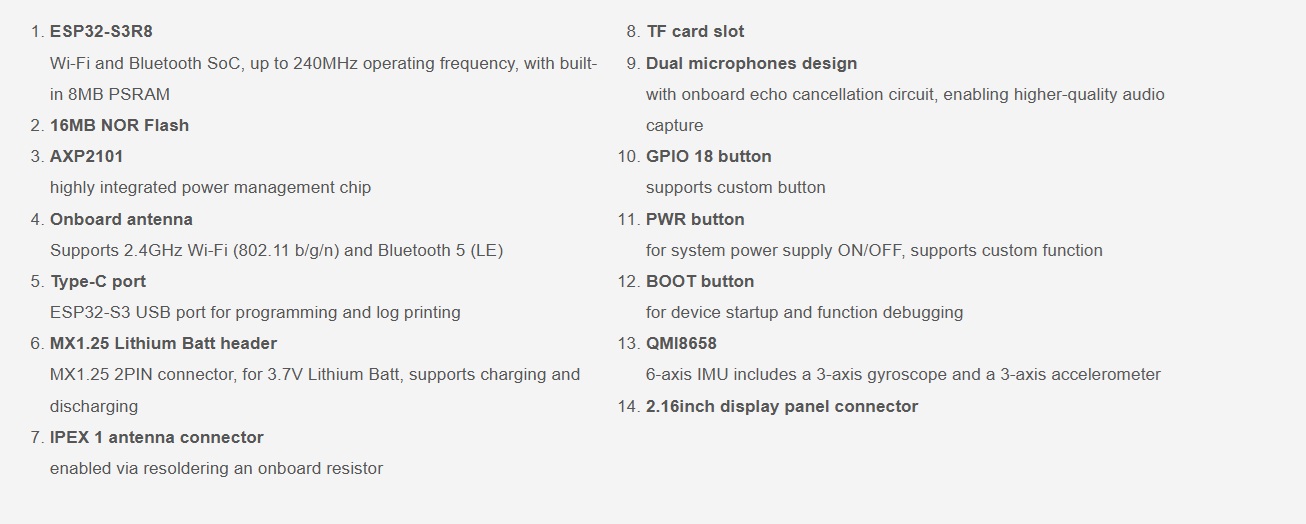

What's On Board

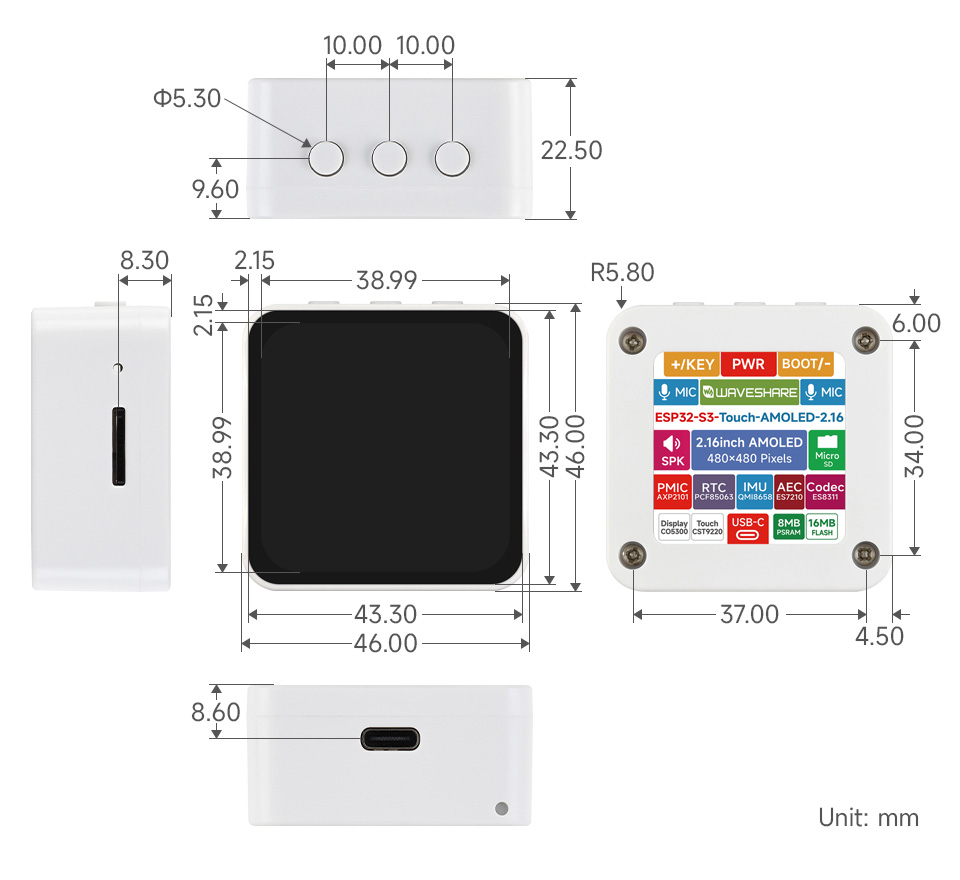

Dimensions
