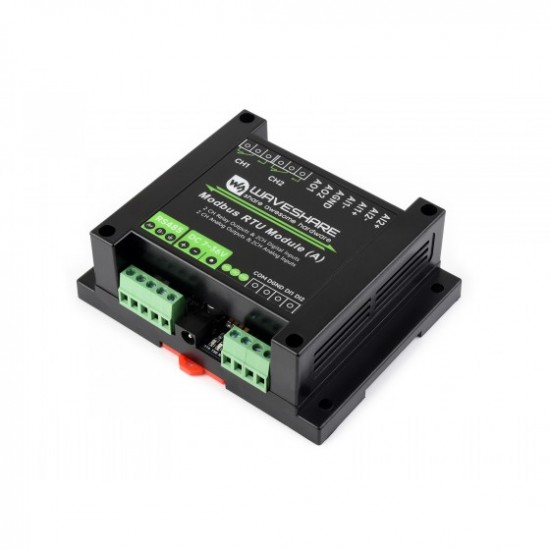

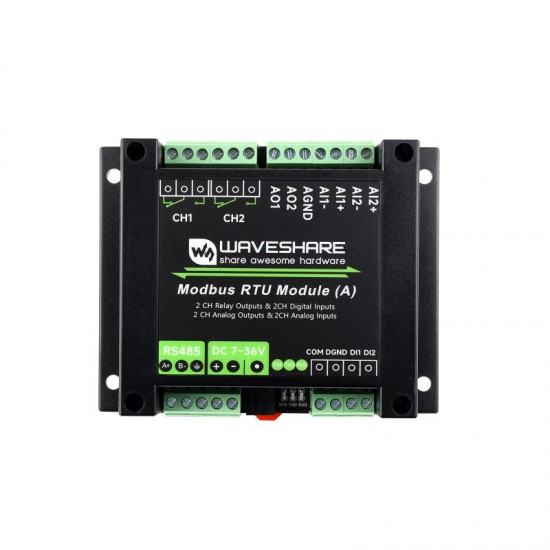

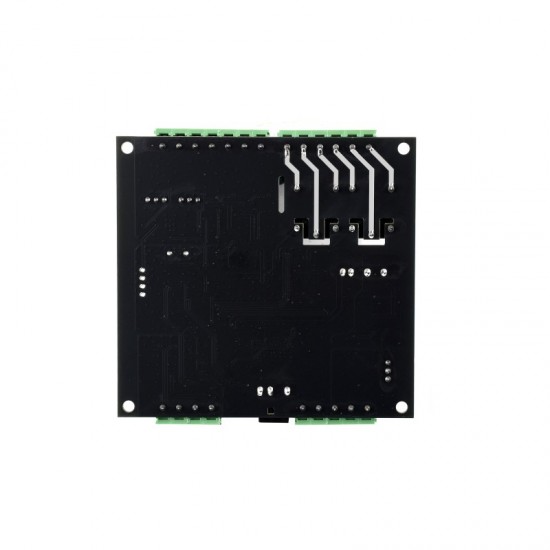

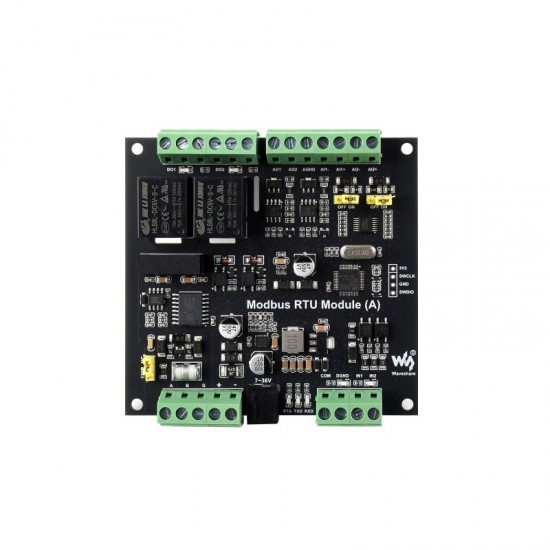

The Modbus RTU Module (A) is an industrial standard mixed input and output module, supports 2-ch relay outputs, 2-ch digital inputs, 2-ch analog current outputs, and 2-ch analog current/voltage inputs. Adopts Modbus RTU protocol with built-in protection circuits such as power isolation, magnetical isolation, resettable fuse, and TVS.

User Manual / Datasheet / Example Codes Etc.

Features

Supports 7V ~ 36V wide voltage power supply, configurable device address (1 ~ 255), multi devices can be cascaded on RS485 bus
Supports power isolation and magnetical isolation, enabling power and signal dual isolation for communication, with high reliability and strong anti-interference capability
Onboard resettable fuse and TVS (Transient Voltage Suppressor), effectively suppresses surge voltage and transient spike voltage in the circuit, provides over-current/over-voltage proof, lightningproof & ESD protection
Supports passive and active digital input, with bi-directional optocoupler isolation, built-in debouncing algorithm. The relays support digital input linkage control or toggle control
Supports 12-bit high-precision acquisition with multiple range input modes, supports single-ended/differential input, supports voltage and current simultaneous acquisition
Adopts high-precision resistors and zero-drift high-precision operational amplifier for more accurate data output or acquisition
High quality relay, contact rating: ≤10A 250V AC or ≤10A 30V DC

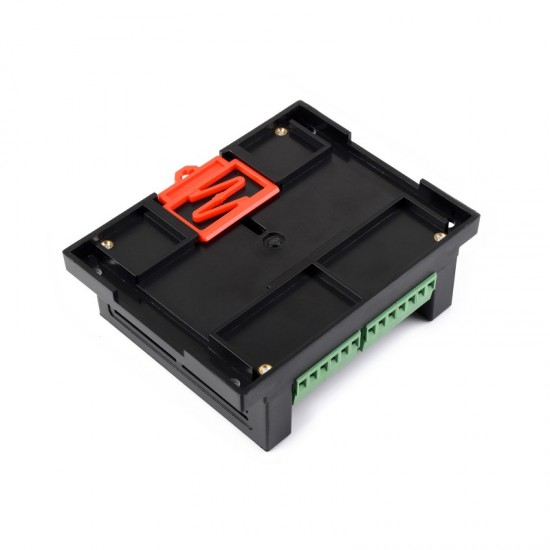

Rail-mount PC flame-retardant case design, easy to install and safer to use
3 × LEDs for indicating the MCU status and signal transceiving status

Specifications

Power Supply: 7V ~ 36V
Communication Interface: RS485
Baud Rate: 4800, 9600, 19200, 38400, 57600, 115200, 128000, 256000
Default Communication Format: 9600, N, 8, 1
Modbus Protocol: Standard Modbus RTU protocol
RS485 Address: 1 ~ 255
Relay Output

Relay Channels: 2-ch
Contact Form: 1 NO, 1 NC
Contact Rating: ≤10A 250V AC or ≤10A 30V DC

Analog Output

Output Mode: 2-ch current output
Resolution: 12-bit, 1μA
Range: 0 ~ 20mA
Output Accuracy: ±0.03mA

Digital Input

Digital Input: Channels: 2-ch
Active Input: 5V ~ 36V DC
Input Type: Passive input / Active input (NPN or PNP Type)
Isolation Type: Bi-directional optocoupler

Analog Input

Analog Input Channels: 2-ch
Range

0 ~ 10V/2 ~ 10V
0 ~ 20mA/4 ~ 20mA

Sampling Accuracy: 12-bit resolution, accuracy ≤3‰
Data Update Rate: 31Hz
Current Sampling Resistor: 249Ω

LED Indicators: STA: MCU indicator, keeps flashing when the MCU normally working

TXD: TX indicator, lights up when sending data
RXD: RX indicator, lights up when receiving data

Package Includes

Modbus RTU Module (A) x1
Screwdriver x1

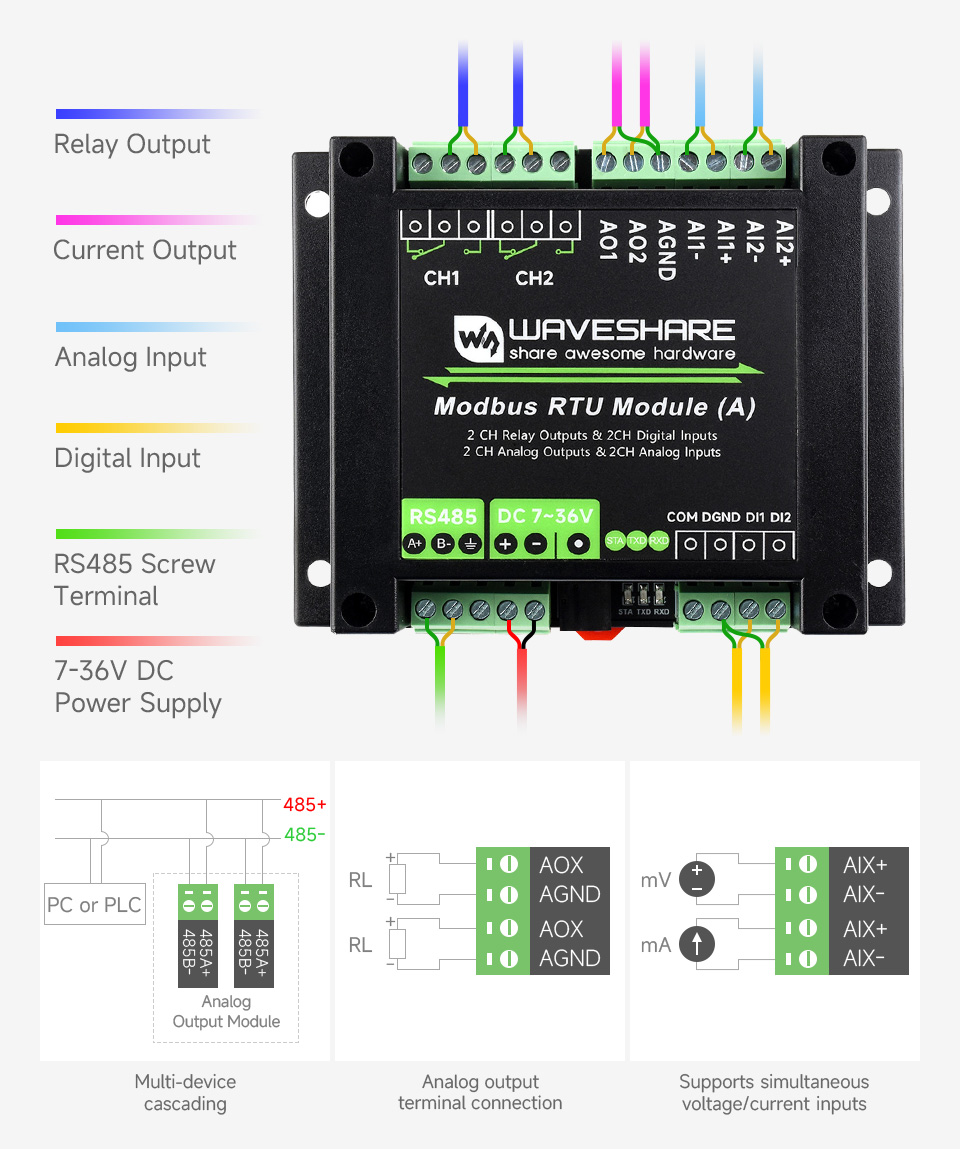

Interface Introduction

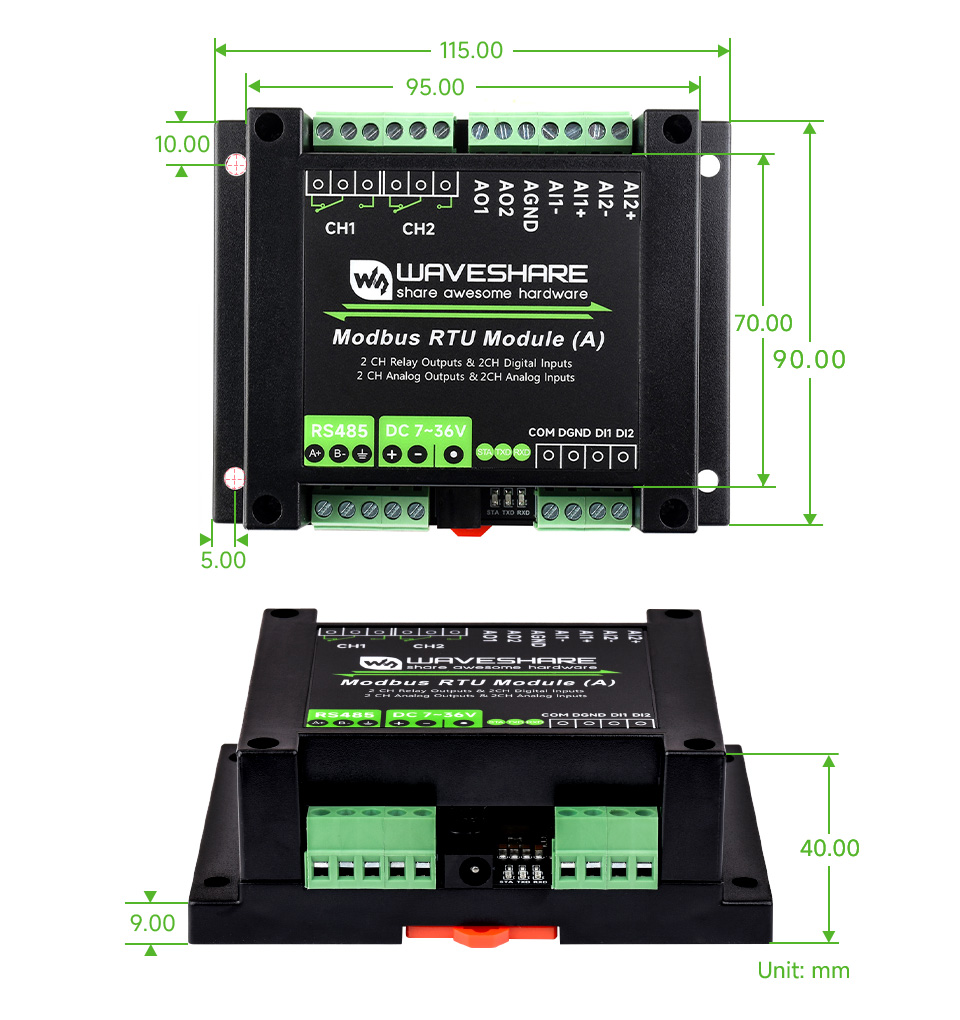

Dimensions
