Waveshare OS08A10 8MP M12 USB Camera Module, OS08A10 Sensor Chip, USB2.0 Port, Better Sensitivity In Low-Light Condition, Easy To Use

The Waveshare OS08A10 8MP M12 USB Camera Module is a high-performance imaging solution designed for applications requiring excellent image quality and reliable low-light performance. Powered by the advanced OS08A10 sensor chip, this camera delivers sharp 8MP resolution with enhanced sensitivity, making it ideal for surveillance, industrial vision, and embedded development projects.

Featuring an M12 lens interface, the module supports interchangeable lenses, allowing flexible field-of-view adjustments to suit different use cases. Its USB 2.0 connectivity ensures quick and easy integration with a wide range of systems, including PCs, single-board computers, and embedded platforms, without the need for complex setup.

User Manual / Datasheet / Example Codes Etc.

Features

8MP High Resolution Imaging – Captures ultra-clear images up to 3840×2160 for detailed output.
OS08A10 Sensor Chip – Delivers enhanced image quality with improved dynamic range and sensitivity.
Excellent Low-Light Performance – Optimized sensor ensures clear visuals even in dim environments with reduced noise.
M12 Lens Interface – Supports interchangeable lenses for flexible field-of-view customization.
Plug & Play USB Connectivity – USB 2.0 interface enables driver-free, easy connection to PCs and embedded systems.
Wide Compatibility – Works with Windows, Linux, and macOS platforms.
Compact Design – Small form factor suitable for embedded and industrial applications.
Auto Image Processing – Supports auto exposure, white balance, and gain adjustment for stable image quality.

Specifications

Pixels: 8MP
sensor chip: OS08A10
Interface: USB 2.0
Camera

Sensor size: 1/1.8inch
Aperture (F): 1.6
Focal length (EFL): 4.2mm
Field of View (FOV): 68° (D) / 60° (H) / 35° (V)
Focusing: Fixed-focus
Distortion: <-2.4%
IR Filter: 650nm filter
Shutter: Rolling shutter


Format support: MJPG, YUY2
Static image resolution: 3840 × 2160

Video recording

MJPG:
25FPS 3840 × 2160
25FPS 2560 × 1440
25FPS 1920 × 1080
60FPS 1280 × 960
60FPS 1280 × 720
60FPS 640 × 480
YUY2:
1FPS 3840 × 2160
1FPS 2592 × 1440
1FPS 1920 × 1080
15FPS 1280 × 720
30FPS 640 × 480

communication: SH1.0 5PIN USB
Operating Voltage: 5V ± 5%
Operating current: 220mA
Dimensions: 38.00 × 38.00 × 24.38 (mm)

Package Includes

OS08A10 8MP USB Camera (A)
Type-A to SH1.0 5PIN ~1m

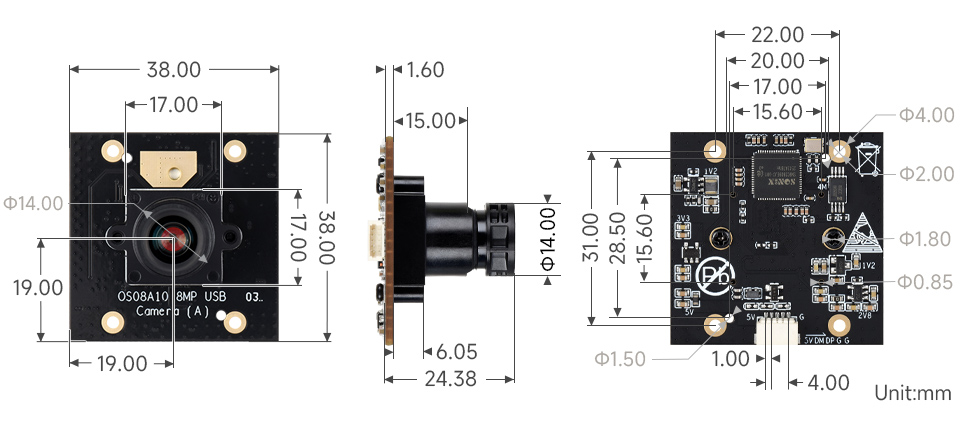

Dimensions
