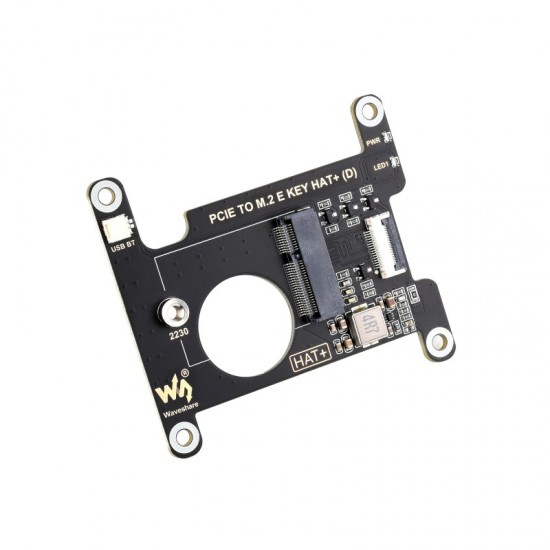

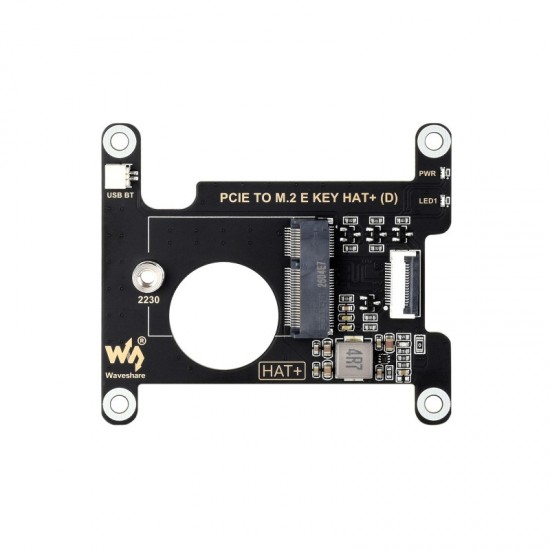

PCIe To M.2 E KEY HAT (D) For Raspberry Pi 5, Compatible With Various NGFF (M.2 E KEY) Wireless NIC, Supports USB Bluetooth Connection

The PCIe to M.2 E-Key HAT (D) for Raspberry Pi 5 is a high-performance expansion board designed to extend the wireless capabilities of your Raspberry Pi 5. It enables seamless integration of a wide range of NGFF (M.2 E-Key) wireless network interface cards, making it ideal for Wi-Fi and Bluetooth upgrades.

Built to leverage the PCIe interface of the Raspberry Pi 5, this HAT provides stable, high-speed data transfer for supported wireless modules. It also includes USB connectivity support for Bluetooth functionality, ensuring full dual wireless capability when paired with compatible NICs.

User Manual / Datasheet / Example Codes Etc.

Features

Designed specifically for Raspberry Pi 5 PCIe interface
Compatible with multiple NGFF (M.2 E-Key) wireless NIC modules
Supports high-speed PCIe data transmission
Integrated USB connection support for Bluetooth functionality
Stable and reliable wireless expansion solution
Easy plug-and-play installation with Raspberry Pi 5 GPIO alignment
Ideal for IoT, networking, and embedded wireless projects

Specifications

Product Type: PCIe to M.2 E-Key HAT (D)
Compatible Board: Raspberry Pi 5
Interface: 16-pin PCIe FPC connector
Supported Slot Type: M.2 (NGFF) E-Key / A+E Key NICs
PCIe Mode: PCIe x1 (Gen2 / Gen3 depending on module)
Supported Wireless Standards: Wi-Fi 5 / Wi-Fi 6 / Wi-Fi 6E / Wi-Fi 7
Bluetooth Support: Yes (via USB connection from NIC)
Antenna Interface: IPEX (on supported modules)
Operating Systems: Linux, Windows 10 / 11 (driver dependent)
Typical NIC Size Support: 2230 M.2 modules
Dimensions: Approx. 22 × 30 × 2.4 mm
Power Supply: From Raspberry Pi 5 PCIe/HAT interface

Package Includes

1x PCIE TO M.2 E KEY HAT+ (D)
1x USB Type-A male port to SH1.0 2PIN cable
1x 16P-Cable-40mm
1x Screws pack

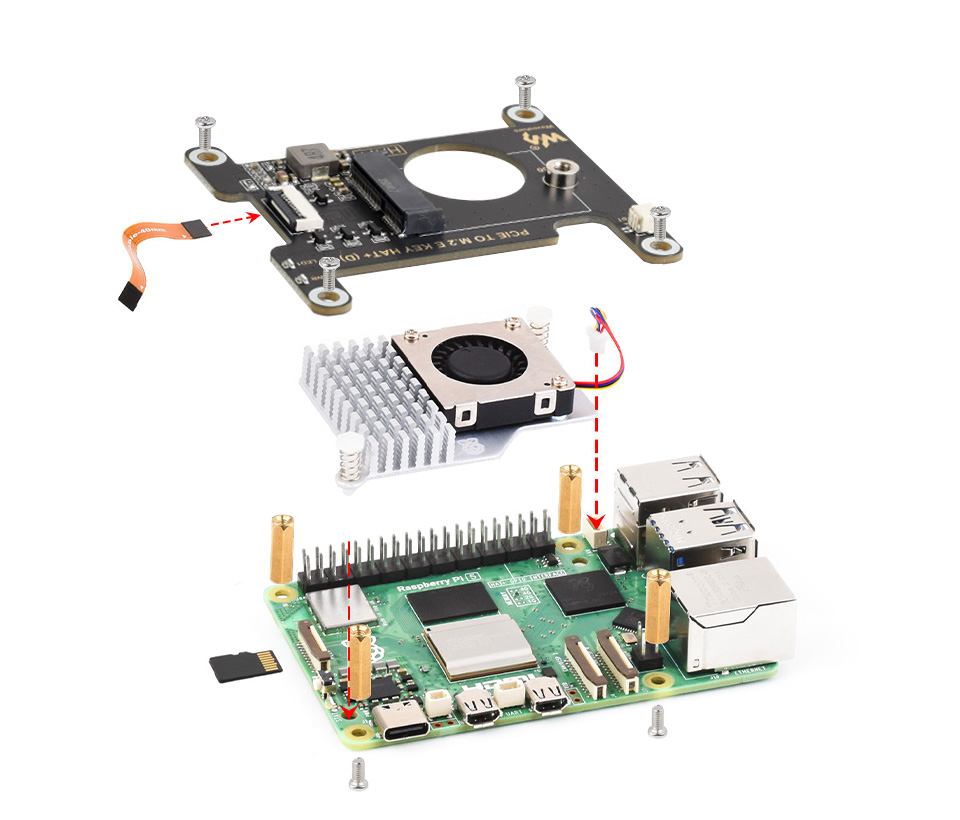

How To Install

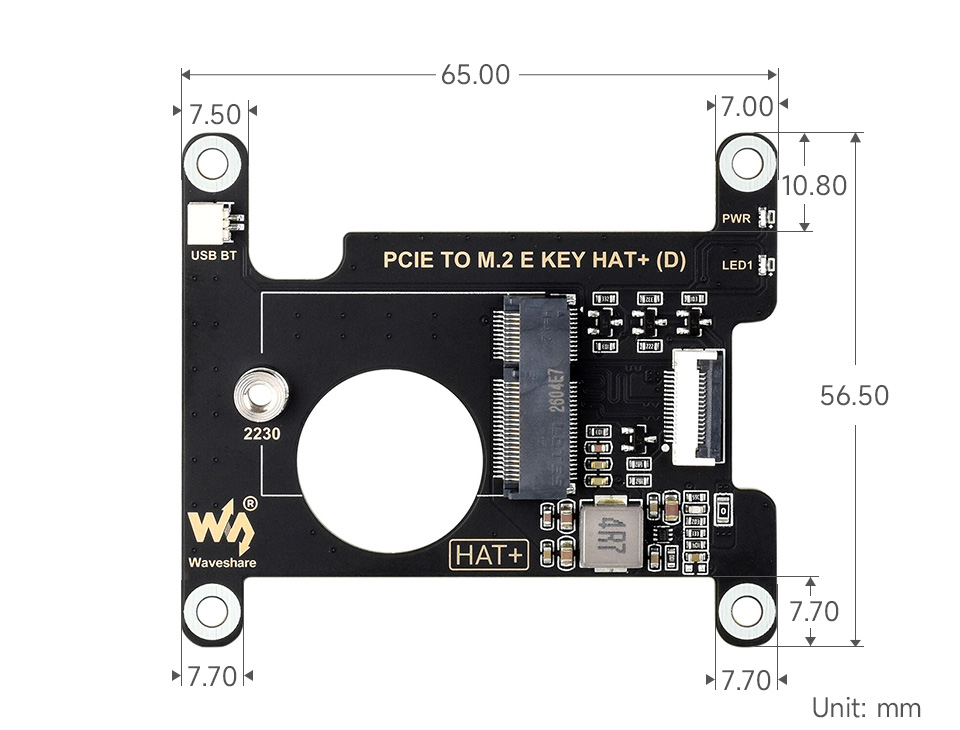

Dimensions
