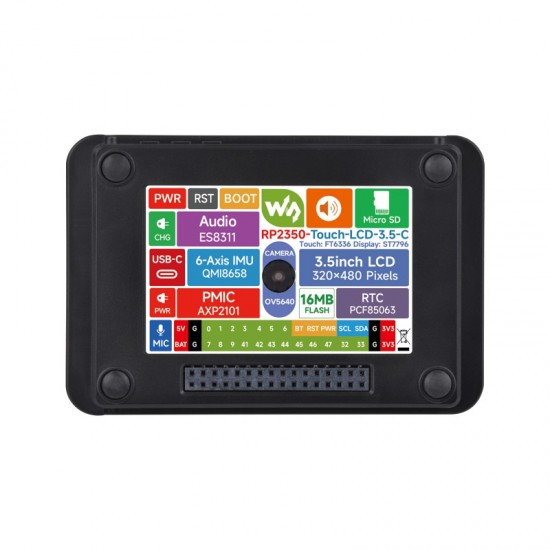

RP2350 3.5inch LCD Display Development Board, 320 × 480 Resolution, 65K Color, Dual-core And Dual-architecture, Onboard Camera Interface, With OV5640 Camera

The RP2350-Touch-LCD-3.5 is a high-performance, highly integrated microcontroller development board designed by Waveshare. Tiny size with onboard 3.5inch capacitive touch IPS display, highly integrated power management chip, low-power audio codec chip, camera interface, 6-axis sensor (3-axis accelerometer and 3-axis gyroscope), RTC chip, TF card slot, and so on, which makes it easy for you to develop and integrate into the products quickly.

User Manual / Datasheet / Example Codes Etc.

Feature

RP2350B microcontroller chip designed by Raspberry Pi in the United Kingdom
Adopts unique dual-core and dual-architecture design: dual ARM Cortex-M33 or dual Hazard3 RISC-V processors support, flexible clock running up to 150 MHz
Built-in 520KB Static RAM, with onboard 16MB Flash
Onboard Type-C port, easy to use
Onboard 3.5inch capacitive touch IPS display for clear color picture display, 320 × 480 resolution, 65K color
Built-in ST7796 display driver and FT6336 capacitive touch chip, using SPI and I2C communication respectively, effectively saving the IO resources
Onboard camera interface, compatible with mainstream cameras such as OV2640 and OV5640, suitable for image and video capture
Onboard 3.7V MX1.25 Lithium Batt recharge/discharge header
USB 1.1 with device and host support
Low-power sleep and dormant modes
Drag-and-drop programming using mass storage over USB
Adapting 22 × multi-functional GPIO pins
2 × SPI, 2 × I2C, 2 × UART, 7 × 12-bit ADC, 18 × controllable PWM channels
Accurate clock and timer on-chip
Built-in temperature sensor for real-time monitoring of chip temperature
12 × programmable I/O (PIO) state machines for custom peripheral support

Specifications

DISPLAY PANEL: IPS
Display Resolution: 320 × 480 resolution
Brightness: 220cd/㎡
Communication Interface: SPI
Touch Type: Capacitive touch
DISPLAY SIZE: 3.5inch
Display color: 65K
Contrast Ratio: 1100:1
Display Driver: ST7796
Touch IC: FT6336

Package Includes

RP2350-Touch-LCD-3.5-C (with case and OV5640 camera) x1

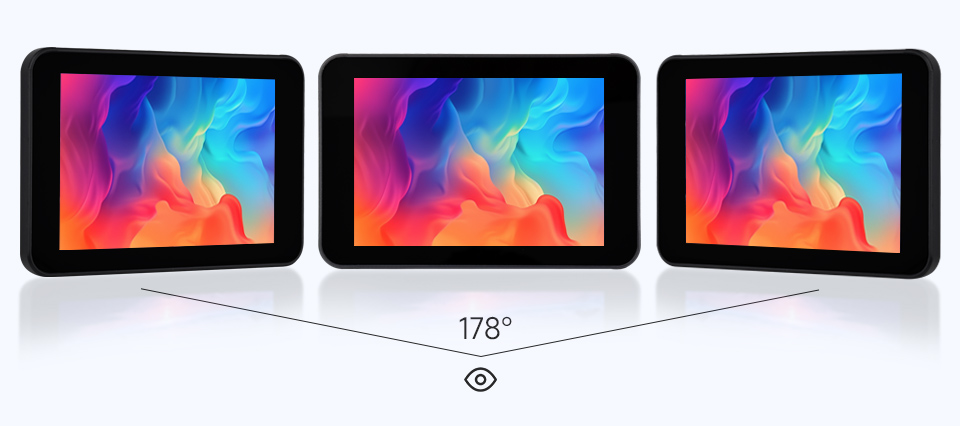

IPS Display Panel

Excellent display performance, 65K color, wide viewing angle

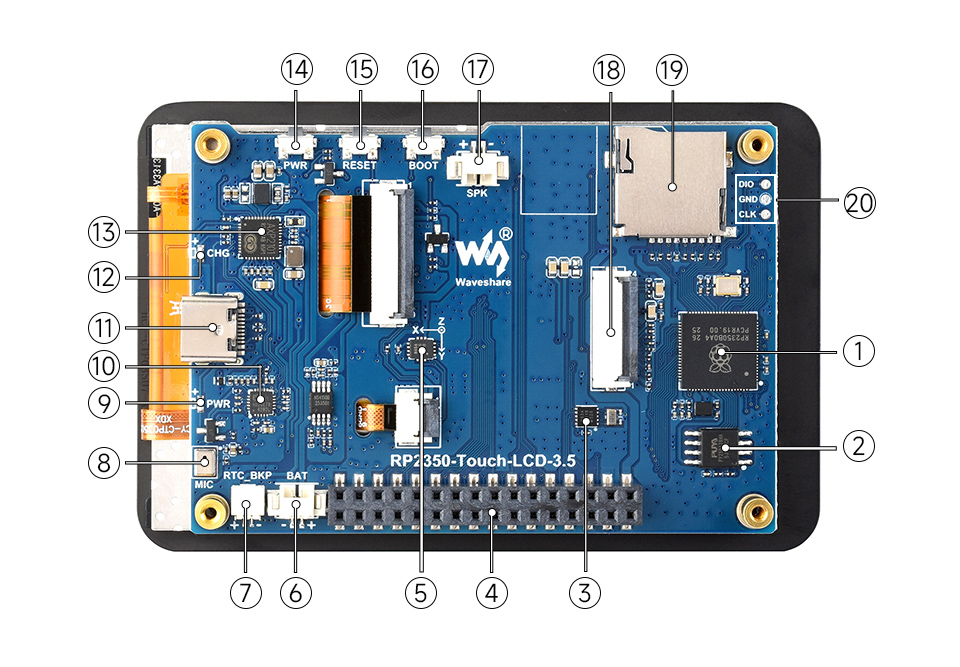

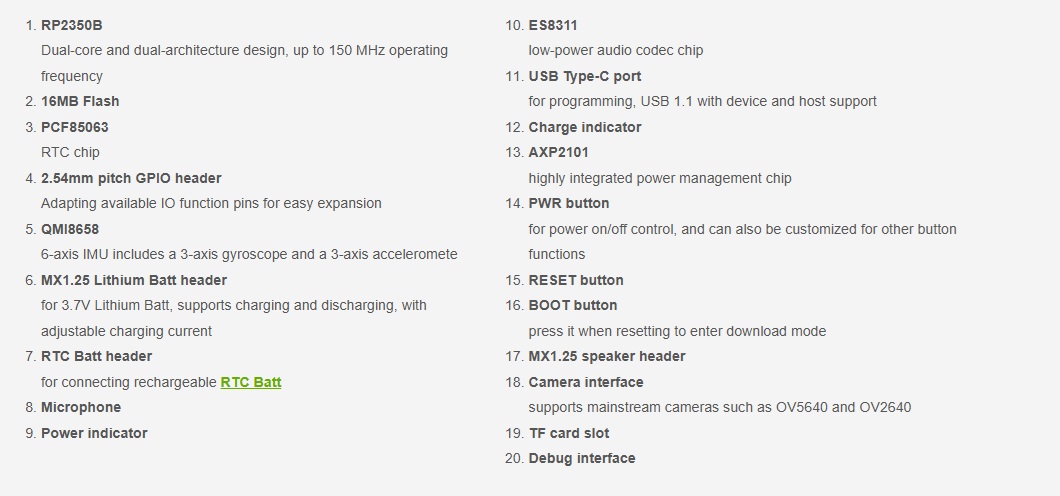

What's On Board

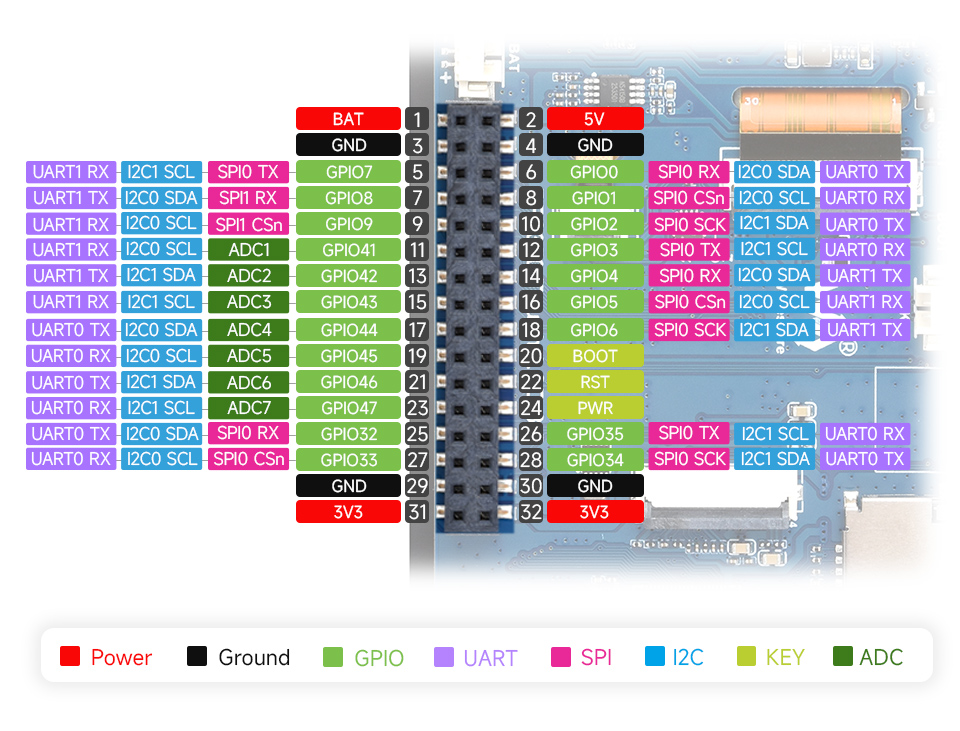

Pin Definition

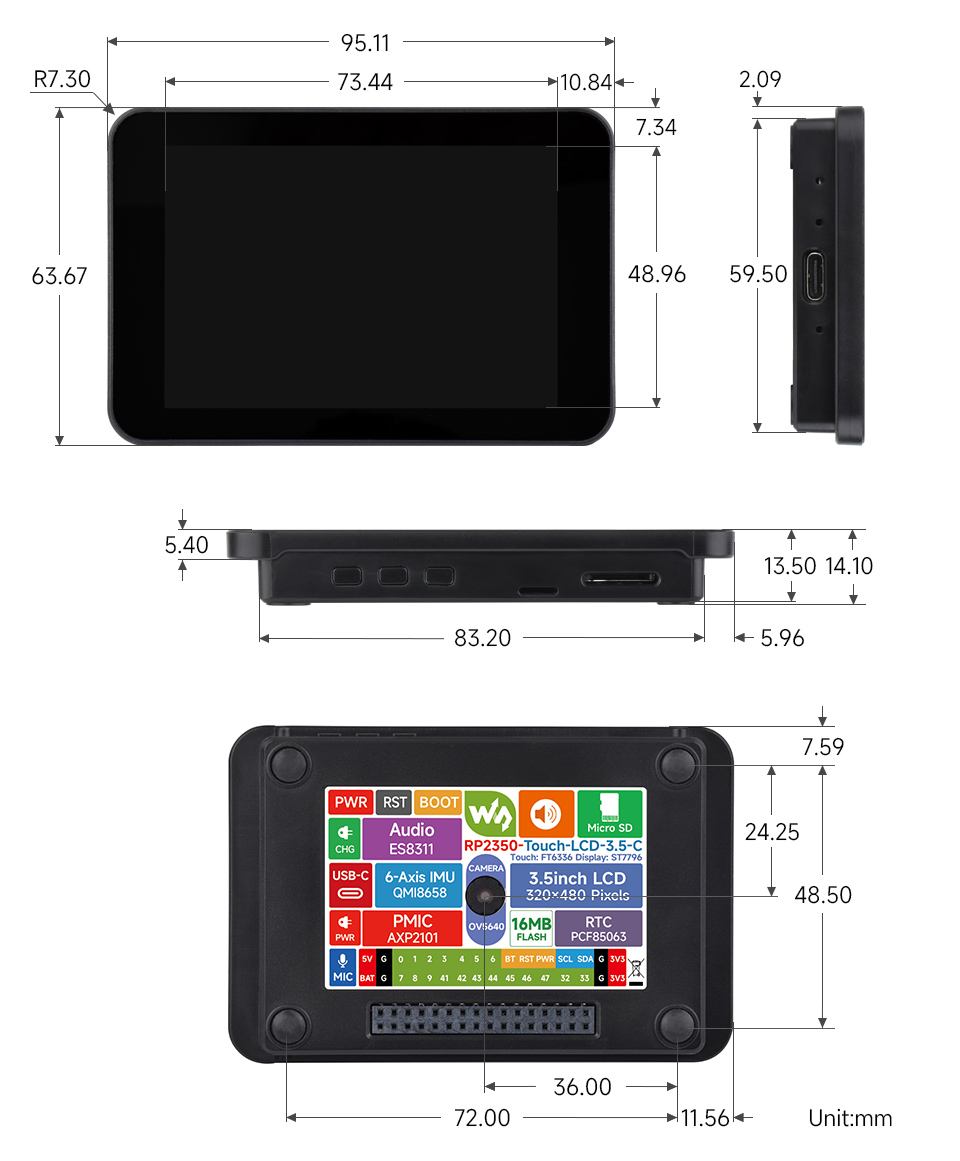

Dimensions
