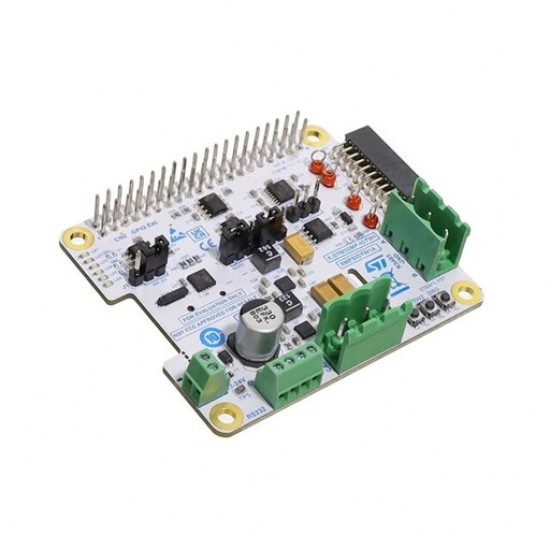

STMicroelectronics X-STM32MP-IGTW1 STM32MP Industrial IoT Gateway Expansion Board

The X-STM32MP-IGTW1 is an MPU expansion board designed for industrial IoT gateway applications, featuring a range of wired communication interfaces.

The X-STM32MP-IGTW1 operates with a power supply between 12 to 24 V and interfaces with the STM32MP microprocessor via a 40-pin GPIO connector using I2C, UART, FDCAN, and GPIO connections. The board is compatible with the STM32MP257F-DK connector layout.

The ST4E1240 is a high-speed RS-485 transceiver supporting data rates up to 20 Mbps, operating from 3.0 to 5.5 V. It features low-power consumption (1.5 mA active, <1 µA shutdown), integrated ESD protection, and fail-safe mechanisms for reliable communication in industrial applications.

The ST3232C is a dual RS-232 transceiver operating from 3.0 to 5.5 V, supporting data rates up to 400 kbps. It features integrated charge pump capacitors and has low-power consumption (1 µA in shutdown).

A further serial communication capability is given by a high-speed CAN transceiver designed for reliable communication in automotive and industrial applications, providing robust data transmission with data rate up to 1 Mbps and reception with low-power consumption, ±36 VBUS fault tolerance, excellent noise immunity and includes autobaud loopback.

The M41T83 is a real-time clock (RTC) with a built-in battery backup, providing accurate timekeeping for embedded systems. It operates from 1.8 to 5.5 V, features a low-power consumption of 1 µA in battery mode, and includes programmable alarms, a watchdog timer, and a 32.768 kHz output for precise timing applications.

The STSAFE-A110 is a secure element on the board that provides hardware-based authentication and cryptographic services, ensuring data integrity and confidentiality for IoT devices and peripherals.

The M24C32-R is a 32-kbit EEPROM with I²C interface, providing nonvolatile memory for data storage, ideal for industrial applications requiring reliable data retention and easy integration.


Datasheet


Features

  • ST4E1240 high-speed RS-485 transceiver IC
  • ST3232 RS-232 transceiver IC
  • M41T83 on board real-time clock (RTC) with built-in battery backup
  • STSAFE-A110 for authentication, state-of-the-art security for peripherals and IoT devices
  • High-speed CAN transceiver
  • M24C32-R, EEPROM for automatic GPIO setup and driver setup
  • L6983: DC-DC converter used to step down an input voltage (Vin) from 12-24 to 5 V
  • L6983: DC-DC converter used to further step down the 5V output from the L6983N50QTR to 3.3 V
  • Signalizing LEDs and switches for user interface
  • Compatible with STM32MP257F-DK’s GPIO connector

Package Includes

  • 1x STMicroelectronics X-STM32MP-IGTW1 STM32MP Industrial IoT Gateway Expansion Board
