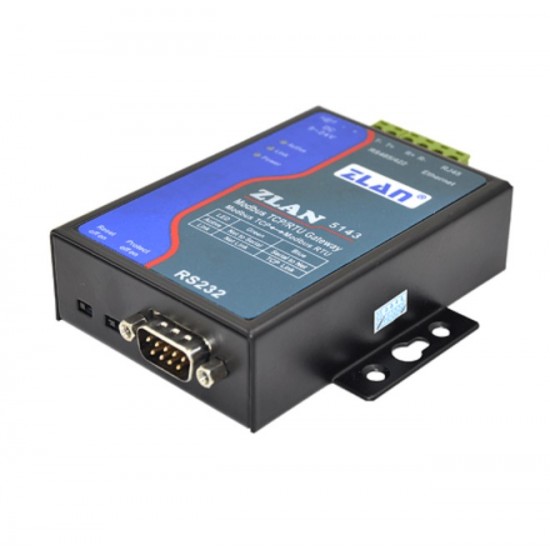

ZLAN5143 can realize transparent data forwarding between RS232/485/422 and TCP/IP. The serial device is easily connected to Ethernet and Internet to realize network upgrade of serial device. Support RS232/422 interface support full duplex, uninterrupted communication; RS485/422 embedded 485/422 lightning protection; RS485/422 and RS232 can be used simultaneously without switching. DHCP and DNS are supported. Virtual serial ports are supported, and the original serial port PC software does not need to be modified.
ZLAN5143 has the function of transferring from Modbus TCP to Modbus RTU. For details, refer to the Modbus Gateway User Guide
ZLAN5143 is a new generation of high-performance serial port server developed by Shanghai ZLAN1003. It has the peculiarity of strong function and high cost performance.
Features
- Supports full-duplex, high-rate data forwarding without packet loss.
- Economic price
- Support TCP Server, TCP Client, UDP mode, UDP multicast.
- Baud rate supports 1200 to 115200bps, data bits support 5 to 9 bits, check bits can be None, odd check, even check, Mark, Space five modes, support CTS/RTS hardware flow control.
- Built-in 485/422 lightning protection function, suitable for outdoor 485/422 communication.
- Free equipped with Windows virtual serial port & device management tool ZLVircom, support virtual serial port, and can one-click search ZLAN5143, modify parameters.
- provides device management function library (Windows DLL dynamic link library), which is convenient for users to develop applications with VC, VB, Delphi, C++Builder. Users only need to use interface functions such as read and write to communicate with ZLAN5143.
- Innovative network disconnection detection mechanism, whether ZLAN5143 works in TCP Server mode or TCP Client mode, it can automatically re-establish the connection after disconnection, ensuring real-time data accessibility.
- Built-in Web server, module parameters can be modified through the browser.
- Support DHCP to solve IP management and IP conflict problems.
- Supports DNS, which meets the requirements for communication through domain names.
- Supports up to 100 TCP connections to communicate with networking modules simultaneously.
- As a TCP client, eight destination IP addresses can be connected.
- Flexible serial data framing Settings to meet various subcontracting needs of users.
- UDP mode supports the dynamic destination address mode, which facilitates multiple users to manage the same networking module at the same time.
- Real COM Driver supports multi-machine communication via bit 9 (address frame 1, data frame 0).
- Supports remote search for ZLAN5143 and configuration of ZLAN5143 parameters over the Internet.
- Supports parameter write protection to prevent incorrect modification. Supports the start function with default parameters.
- 2KV network port surge protection.
- High strength anti-electromagnetic interference, the shell adopts anti-radiation SECC board.
