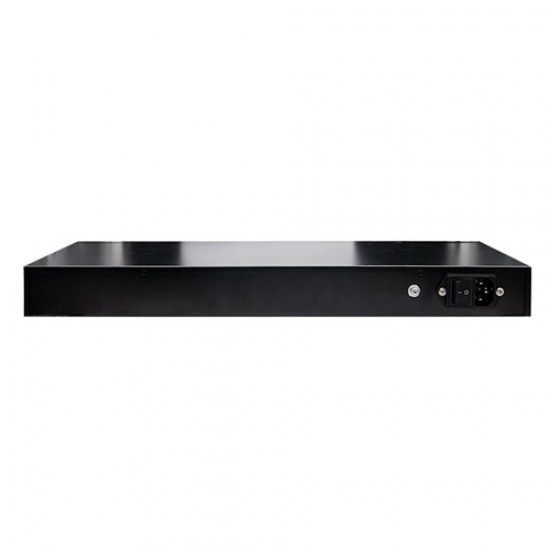

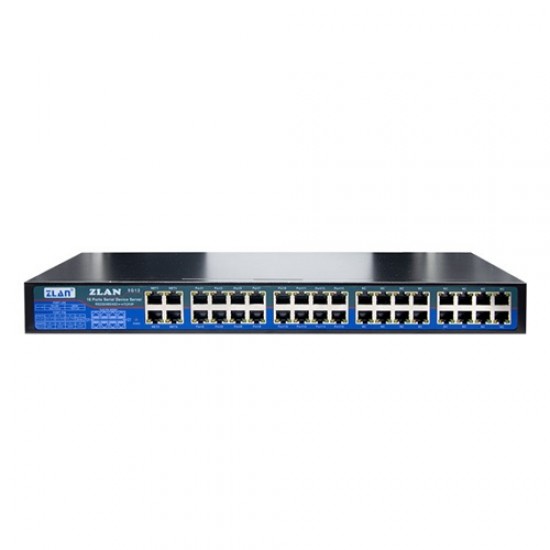

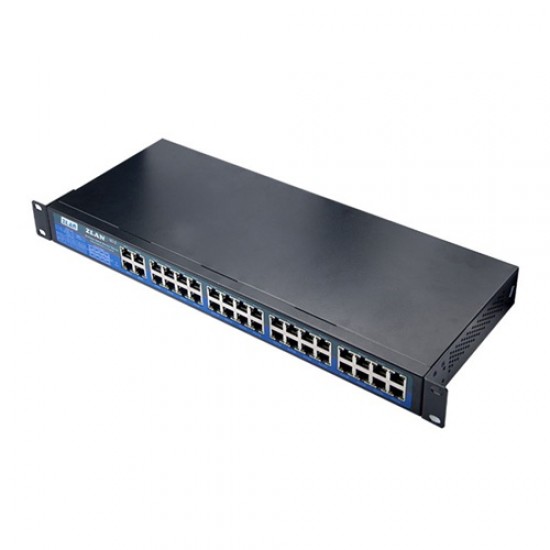

ZLAN5G12 16-Port RS232/RS485/RS422 to TCP/IP Industrial Serial Server
The ZLAN5G12 serial server is a standard 1U rack-mount protocol converter developed by Shanghai ZLAN Information Technology Co., Ltd., designed to bridge 16 serial ports (RS232/485/422) with TCP/IP networks. It supports 16 RS232 ports or 16 RS485/RS422 ports (the RS422 version requires ordering the 5G12-422 model), with RS232 ports supporting flow control. A single network cable connection enables simultaneous full-duplex operation across all 16 serial ports. Each serial port can operate in TCP Server, TCP Client, UDP, or UDP Multicast modes. The device also features four network ports with built-in switching functionality.
The ZLAN5G12 can be configured so that every 8 serial ports share a single IP address (distinguished by port number) or use 8 separate IP addresses (distinguished by IP address while sharing the same port number); the 16 ports require a total of 2 IP addresses. It supports functions such as Modbus TCP to Modbus RTU conversion and Serial-to-Telnet protocol conversion.
Powered by an ARM9 processor, the ZLAN5G12 supports high-speed data transmission of up to 921.6 Kbps without packet loss.
Features
- All 16 serial ports support RS232, RS485, and RS422 standards (model 5G12-422 is required for RS422 support).
- The 16 serial ports operate independently in full-duplex mode without mutual interference and can be configured with different baud rates.
- Supports network switch functionality across its 4 Ethernet ports, allowing it to serve as a network switch.
- Comprehensive LED indicators; each serial port features dedicated indicators for TCP connection status and data activity.
- Powered by 220V AC.
- Standard 19-inch 1U rack-mount design for easy installation; rack-mounting accessories included.
- Complies with Level 4 EMC standards and supports an industrial-grade operating temperature range.
- Supports IP "virtualization" (IP splitting/merging) technology: Different serial ports can be distinguished by port number or IP address. Port-based distinction: Merges up to 8 IPs into a single IP using different ports (suitable for networks with limited IP addresses). IP-based distinction: Expands one IP into 2–8 IPs using different ports (suitable for applications requiring fixed port numbers, such as Modbus TCP's fixed port 520).
- Supports TCP Server, TCP Client, UDP, and UDP Multicast modes.
- Supports baud rates from 300 to 923,200 bps and data bits from 5 to 9; offers five parity modes (None, Odd, Even, Mark, Space); supports CTS/RTS hardware flow control and XON/XOFF software flow control.
- Supports MQTT gateway functionality.
- Supports conversion between JSON and Modbus RTU, Modbus TCP, or DL/T 645 meter protocols; supports data upload via HTTP POST and HTTP GET formats.
- Supports transmitting the MAC address upon connection, facilitating cloud-based device management.
- Provides a DLL development kit for secondary development of PC-side device discovery and configuration software.
- Supports dynamic IP acquisition via DHCP and domain name resolution via DNS.
- Supports remote device discovery and parameter configuration via the cloud.
- Supports remote monitoring of TCP connection status via software; virtual serial ports include data monitoring capabilities.
- The 5G12 supports Modbus gateway functionality, including Modbus RTU to Modbus TCP conversion.
- The 5G12 supports Telnet-to-Serial conversion and includes embedded Telnet protocol support.
- The 5G12 supports multi-host functionality: In a request-response polling scenario, it allows multiple computers to simultaneously access the same serial device via the network port.
Specifications
- Interfaces: 36 RJ45 ports (4 Ethernet ports, 16 serial ports; ports 17–32 are unpopulated)
- Power Supply: AC 220V input; Power consumption: 10W
- Dimensions: Standard 19-inch 1U (L x W x H = 48cm x 18cm x 4.4cm)
- Ethernet: 4 x 10M/100M ports (switch architecture; connection to any one is sufficient)
- Serial Ports: 16 ports; each supports RS232/RS485/RS422 (RS422 requires jumper configuration)
- Baud Rate: 300–921600 bps
- Parity: None, Odd, Even, Mark, Space
- Data Bits: 5–9
- Flow Control: RTS/CTS, DTR/DSR, None
- Protocols: ETHERNET, IP, TCP, UDP, HTTP, ARP, ICMP, DHCP, DNS
- Configuration Methods: ZLVirCOM utility, device management library
- Communication Methods: Socket, Virtual COM, device management library
- Operating Modes: TCP Server, TCP Client, UDP, Real COM Driver, Modbus TCP, Telnet
- Operating Temperature: -40 to 85°C
- Storage Temperature: -65 to 110°C
- Humidity Range: 5–95% relative humidity
Package Includes
- 1x ZLAN5G12 16-Port RS232/RS485/RS422 to TCP/IP Industrial Serial Server
