0.71inch Double Eye Round LCD Display Module, 160×160 Resolution, SPI Interface, 65K Colors

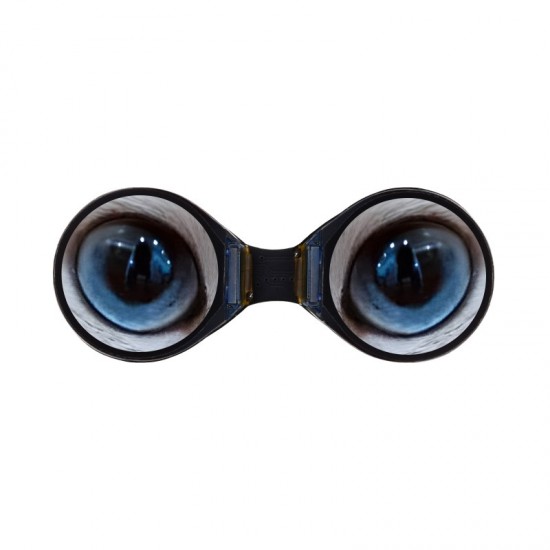

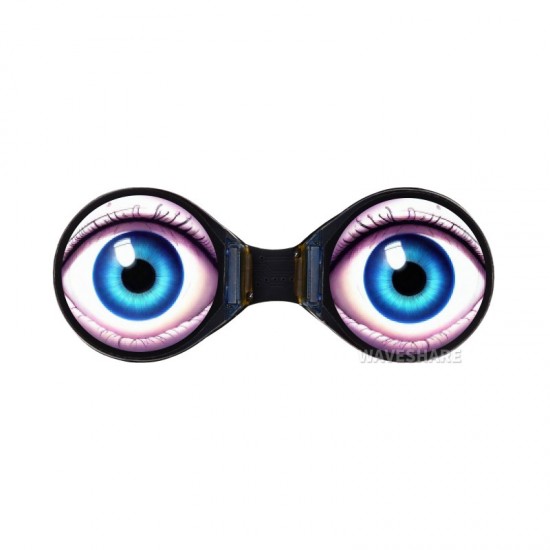

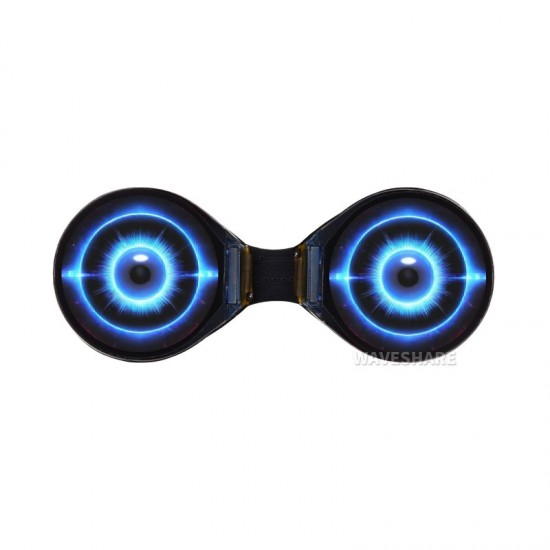

The 0.71-inch Double Eye Round LCD Display Module is a compact and visually striking display solution designed for embedded and IoT applications. Featuring a unique dual round “double-eye” design, this module delivers a 160×160 resolution on each display, offering crisp visuals and smooth color rendering with support for up to 65K colors.

Utilizing a high-speed SPI interface, the module ensures efficient communication with a wide range of microcontrollers such as Arduino, ESP32, and Raspberry Pi, making it ideal for space-constrained projects. Its small form factor and low power consumption make it perfect for wearable devices, smart gadgets, mini dashboards, and creative UI designs.

User Manual / Datasheet / Example Codes Etc.

Features

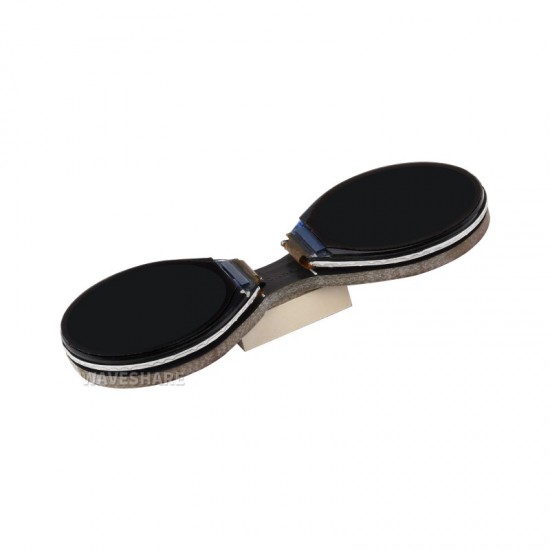

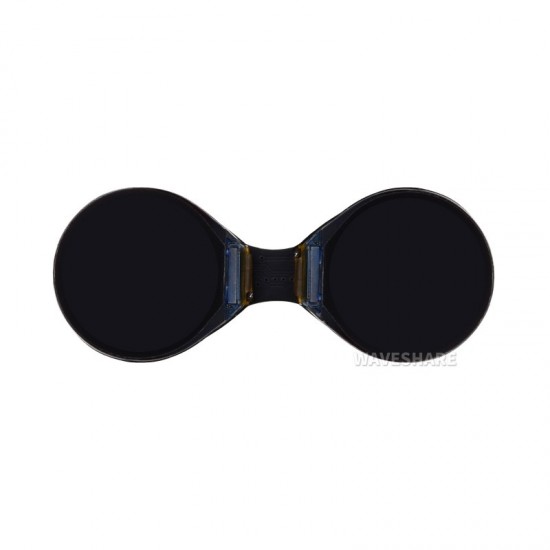

The double eye LCD module consists of two 0.71inch round LCD displays, IPS panel, wide viewing angle
160×160 resolution, 65K colors, clear and colorful displaying effect
SPI interface, minimizes required IO pins, supports controller boards like ESP32 / Arduino

Specifications

Operating voltage: 3.3V / 5V
Communication Interface: SPI
Display Panel: IPS

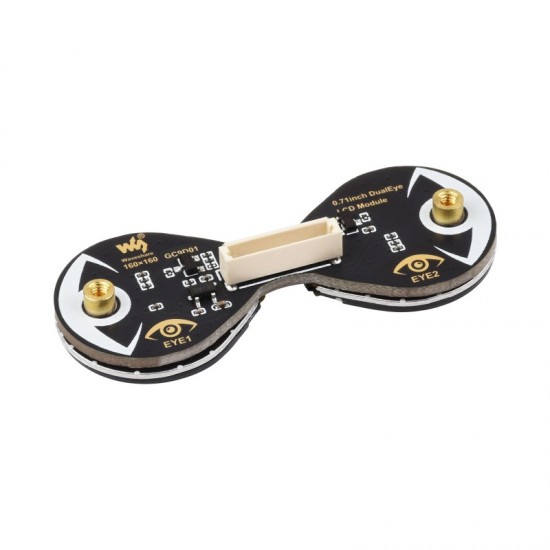

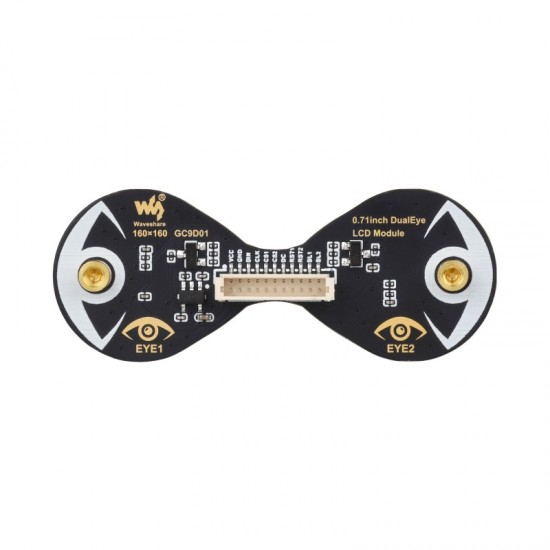

Driver: GC9D01
Resolution: 160 × 160 pixels
Display size: 18 × 18 (mm)
Pixel pitch: 37.5 × 112.5 (μm)
Dimensions: 20.00×51.00 (mm)

Package includes

0.71inch DualEye LCD Module x1
SH1.0 11PIN cable x1
Convex lens (2pcs) x1

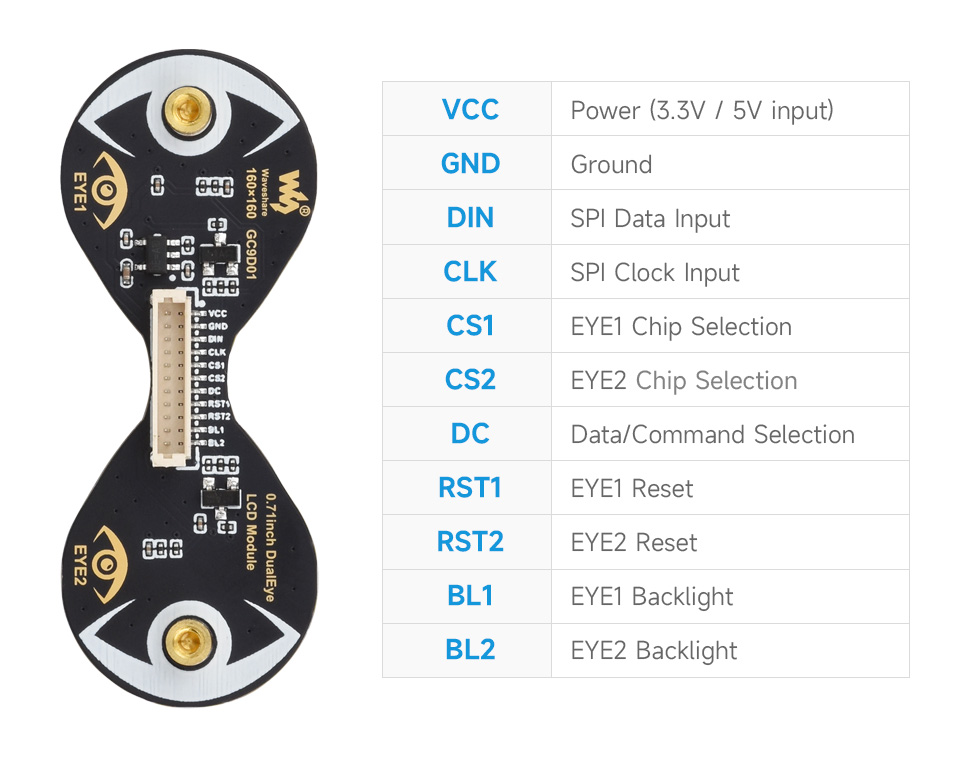

Controlled via SPI Bus

supports controller boards like ESP32 / Arduino

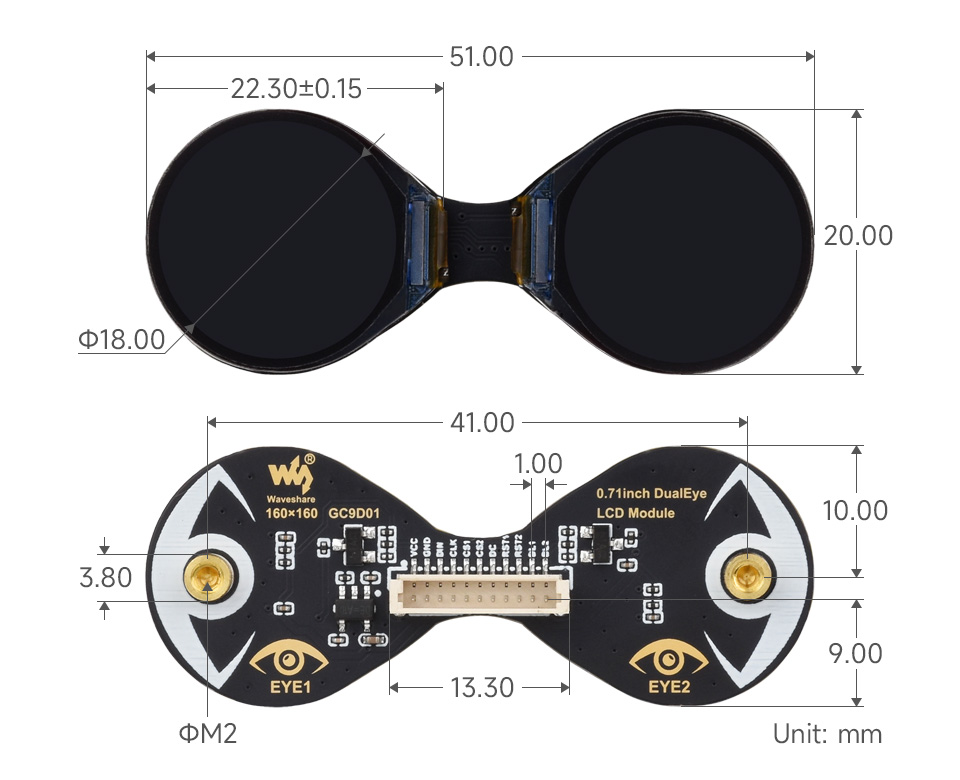

Dimensions
