Waveshare ESP32-C6 GEEK Development Board, With 1.14inch 65K Color LCD, 240 × 135 Resolution, Supports 2.4GHz Wi-Fi 6 & BLE 5, USB-A Port
₹​1,149.00
₹​973.73 + 18% GST
All Inclusive, Shipping Calculated at Checkout
Assured Cashback of ₹ 10
B2B GST Credit Available
Price in reward points: 975

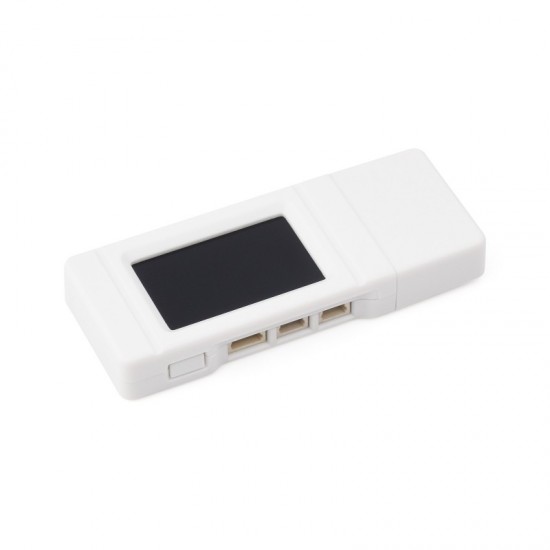

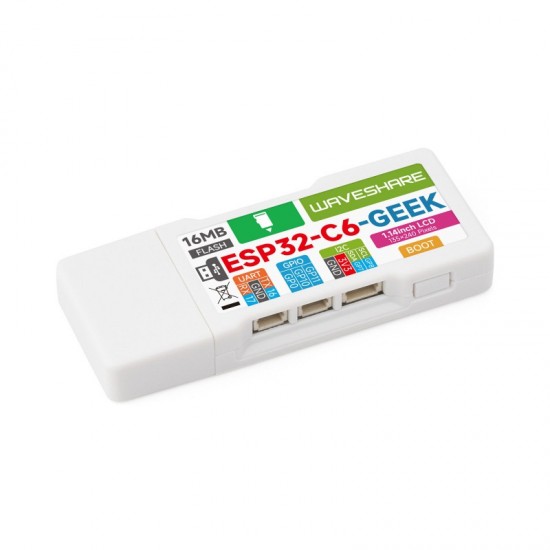

Waveshare ESP32-C6 GEEK Development Board, With 1.14inch 65K Color LCD, 240 × 135 Resolution, Supports 2.4GHz Wi-Fi 6 & BLE 5, USB-A Port

The ESP32-C6-GEEK is a geek development board designed by Waveshare, onboard USB-A male port, 1.14inch LCD display, TF card slot, and other peripherals. Supports 2.4GHz Wi-Fi 6 and BLE 5, with integrated 16MB Flash, provides I2C header, UART header, and GPIO header, bringing more possibilities for your project.




Features

    • Adopts high-performance 32-bit RISC-V processor, up to 160MHz main frequency
    • Built-in 512KB Static RAM, 320KB ROM, with onboard 16MB Flash memory
    • Onboard 1.14inch 65K color IPS LCD display with 240 × 135 resolution
    • Integrated 2.4GHz Wi-Fi 6 and Bluetooth 5 (LE) dual-mode wireless communication
    • Onboard TF card slot for an external TF card to store images and files
    • Onboard 3PIN UART header, 3PIN GPIO header and 4PIN I2C header
    • Equipped with plastic case and cables
    • Provides online open-source demo and resources, more convenient for learning and development


    Specifications

    • Operating voltage: 3.3V / 5V
    • Resolution: 240 × 135 pixels
    • Communication interface: 4-wire SPI
    • Display Size: 24.91 × 14.86 (mm)
    • Display Panel: IPS
    • Pixel size: 0.1101 × 0.1035 (mm)
    • Driver IC: ST7789
    • Outline dimensions: 61.00 × 24.50 (mm)


    Package Includes

    • ESP32-C6-GEEK x1
    • SH1.0 3PIN cable ~100mm x2
    • SH1.0 4PIN cable ~100mm x1

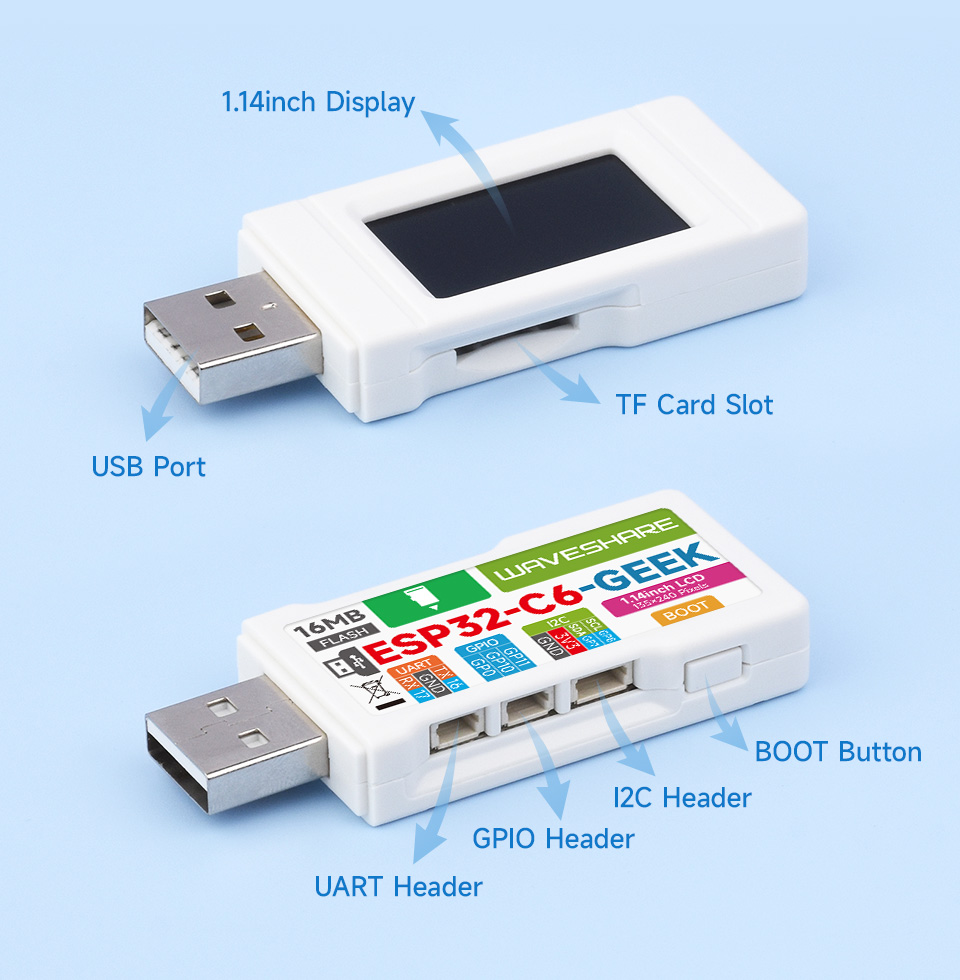

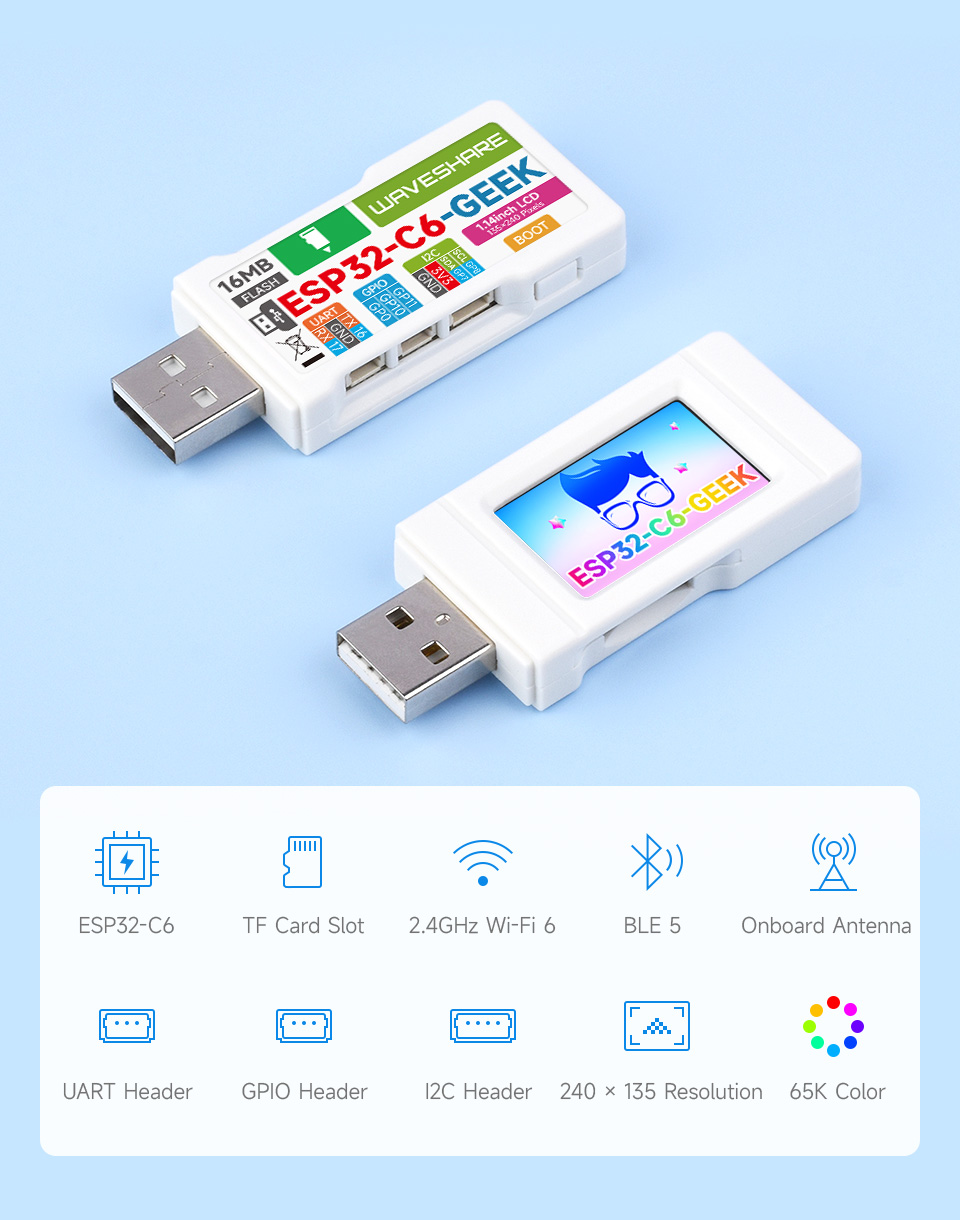

    Combines multiple functions in one

    Onboard multiple interfaces and 1.14inch 65K color LCD display, Combined with

    Wi-Fi 6 & Bluetooth for more possibilities

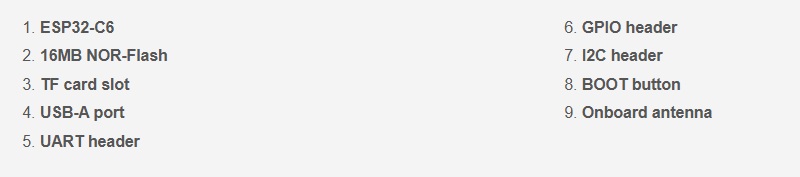

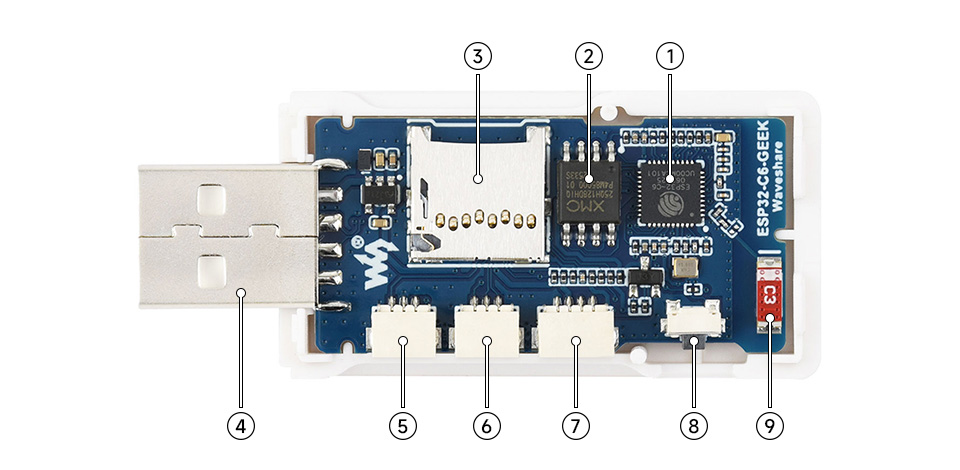

    What's On Board

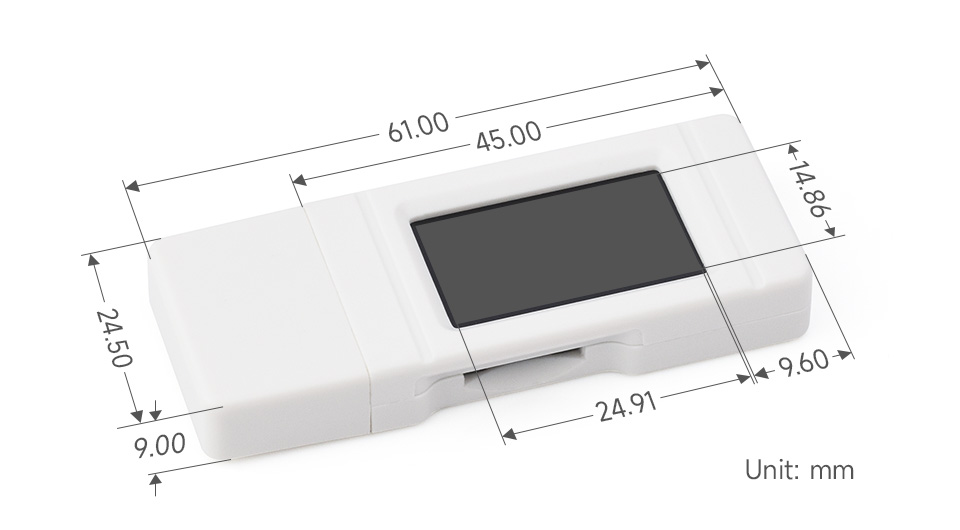

    Dimensions
