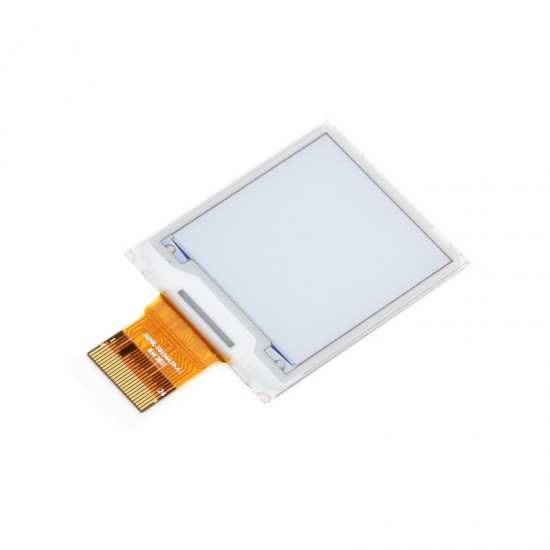

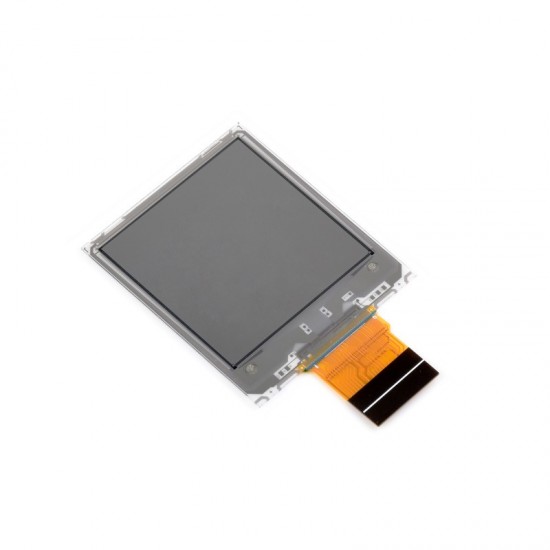

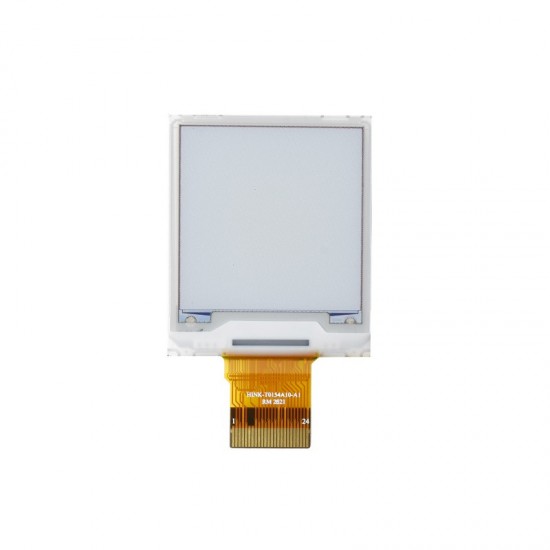

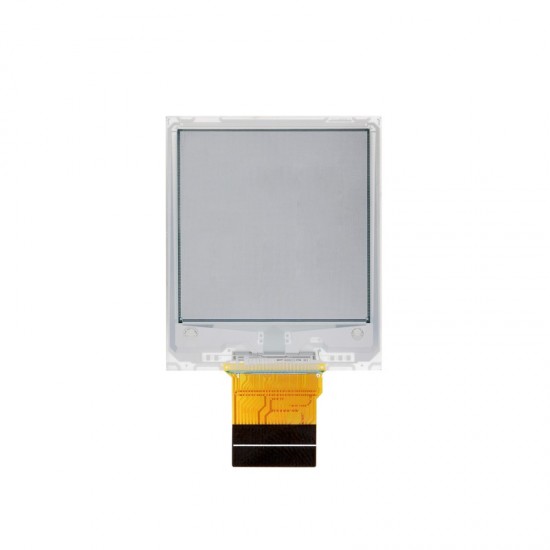

Name: Waveshare 1.54inch e-Paper Raw display (E), E Ink Spectra 6 (E6) full-color, 240×240 pixels, SPI Interface
Brand: WaveShare Electronics
SKU: 35201
Price: 825.00 INR
Availability: OutOfStock

Waveshare 1.54inch e-Paper Raw display (E), E Ink Spectra 6 (E6) full-color, 240×240 pixels, SPI Interface

New

WaveShare Electronics

Waveshare 1.54inch e-Paper Raw display (E), E Ink Spectra 6 (E6) full-color, 240×240 pixels, SPI Interface

Based on 0 reviews. - Write a review

₹825.00

₹699.15 + 18% GST

All Inclusive, Shipping Calculated at Checkout

Assured Cashback of ₹ 7
B2B GST Credit Available

Price in reward points: 699

Stock: 0 in Stock
SKU: 35201
Delivery Time
Bulk & B2B RFQ

Buy Now NOTIFY WHEN AVAILABLE

Plan to Buy Later ? Add to Wish List

Waveshare 1.54inch e-Paper Raw display (E), E Ink Spectra 6 (E6) full-color, 240×240 pixels, SPI Interface

The Waveshare 1.54inch e-Paper Raw Display (E) is a compact full-color electronic paper display featuring E Ink Spectra 6 (E6) technology and a 240 × 240 pixel resolution. Designed for low-power applications, it provides a paper-like viewing experience with excellent readability and wide viewing angles, even under direct ambient light.

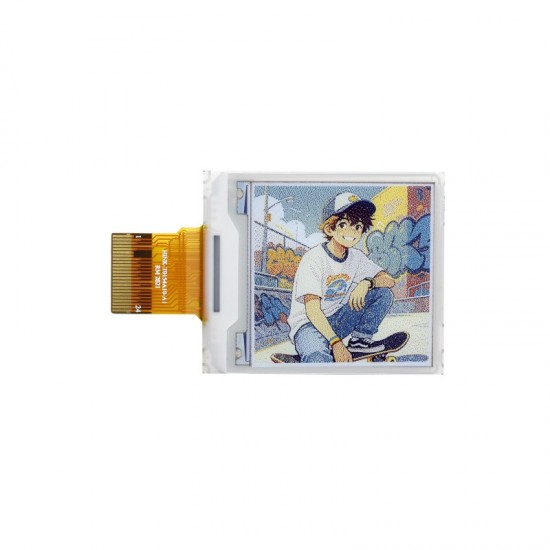

The display supports six-color rendering, enabling vibrant and detailed images, graphics, labels, and information without the need for continuous power to maintain the displayed image. Its SPI interface provides a simple and efficient connection to compatible microcontrollers, development boards, and embedded systems.

With its compact 1.54-inch form factor and low power consumption, this e-Paper display is well suited for portable devices, smart tags, IoT projects, electronic shelf labels, information displays, and other battery-powered applications. The raw display design also provides flexibility for developers who want to integrate the panel into their own hardware solutions.

User Manual / Datasheet / Example Codes Etc.

Features

No backlight required; keeps the last displayed content visible for a long time even after power-off
Ultra low power consumption; basically power is only required for refreshing
Comes with online development resources and manual (driver board circuit diagram, examples for Raspberry Pi/Jetson Nano/Arduino/STM32/ESP32)
Optional for e-Paper driver board:

Adapting SPI interface for connecting with controller boards like Raspberry Pi/Jetson Nano/Arduino/STM32/ESP32, etc.
Onboard voltage translator, compatible with 3.3V / 5V MCUs

Specifications

operating voltage: Raw display: 3.3V
interface: 3-wire SPI, 4-wire SPI
outline dimensions: Raw display: 37.32 × 31.8 × 0.85 (mm)
display size: 27.0 × 27.0 (mm)
DOT PITCH: 0.1125 × 0.1125 (mm)
RESOLUTION: 240 × 240 pixels
display color: E6 Full Color (E Ink Spectra 6)
grey scale: 2
full refresh time: 27s
refresh power: <40mW
standby current: <0.01uA (almost none)
viewing angle: >170°

Package Includes

1x 1.54inch e-Paper (E)

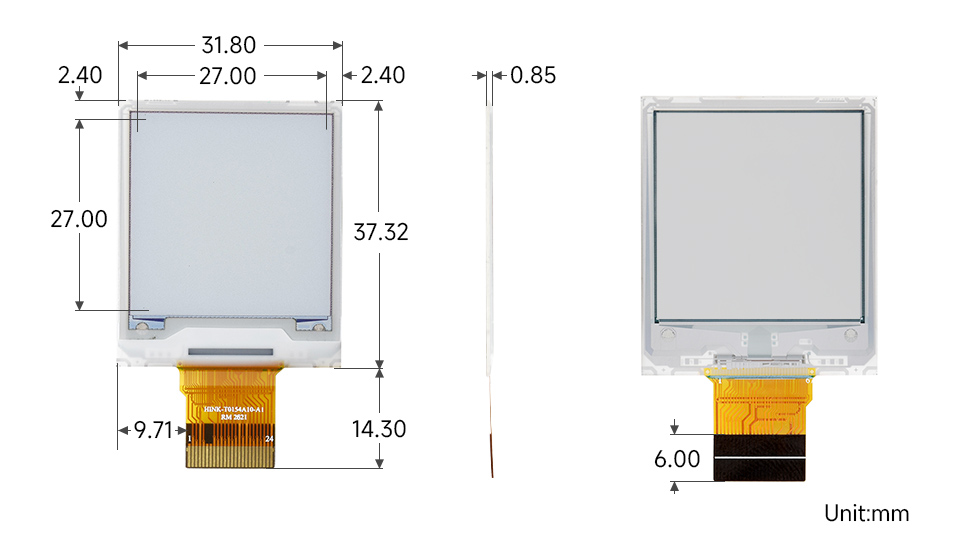

Dimensions
