Waveshare 1.54inch e-Paper Display Module (E), E Ink Spectra 6 (E6) full-color, 240×240 pixels, SPI Interface - With Driver Board

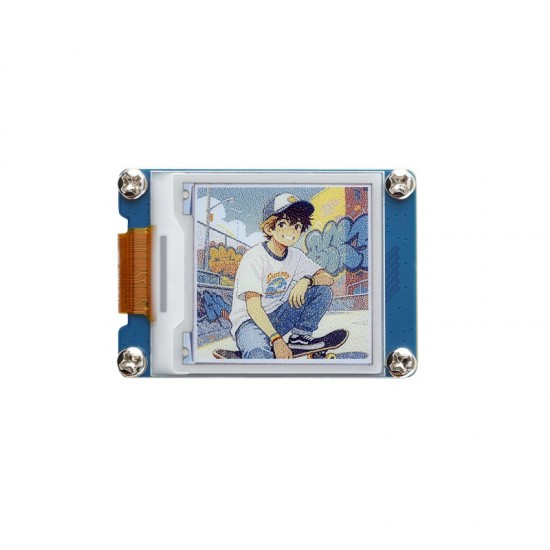

The Waveshare 1.54inch e-Paper Display Module (E) features E Ink Spectra 6 (E6) full-color technology with a 240×240 pixel resolution, delivering vibrant, paper-like visuals with excellent readability. Its reflective display provides a comfortable viewing experience under ambient light while consuming very little power when the image remains unchanged.

Designed with an SPI interface and included driver board, this compact e-Paper module is easy to integrate with microcontrollers and embedded development platforms. The Spectra 6 technology supports rich, multi-color images, making it suitable for product labels, information displays, smart home devices, IoT projects, electronic signage, and other low-power applications.

User Manual / Datasheet / Example Codes Etc.

Features

No backlight required; keeps the last displayed content visible for a long time even after power-off
Ultra low power consumption; basically power is only required for refreshing
Comes with online development resources and manual (driver board circuit diagram, examples for Raspberry Pi/Jetson Nano/Arduino/STM32/ESP32)

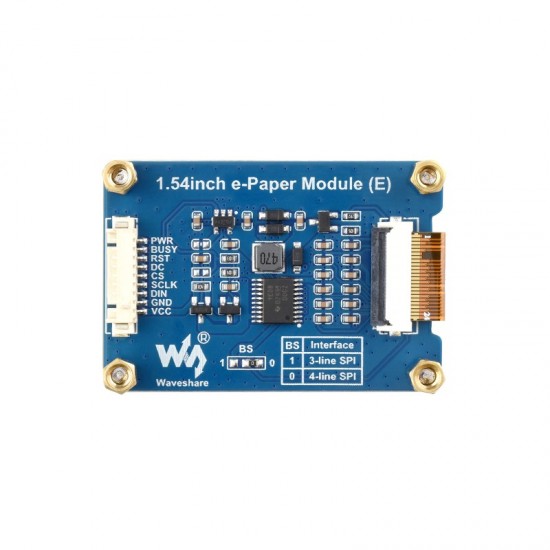

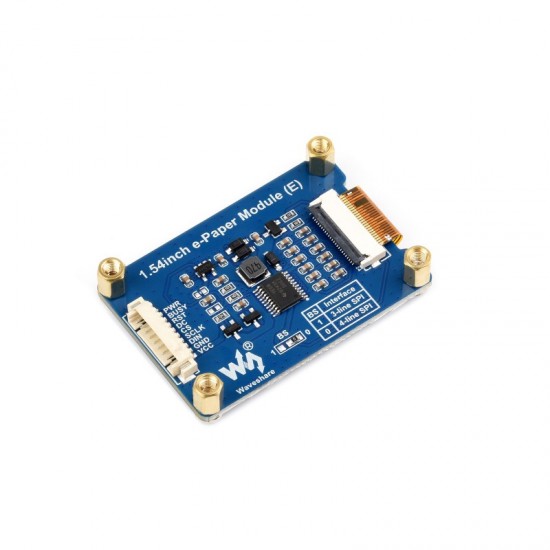

Optional for e-Paper driver board:

Adapting SPI interface for connecting with controller boards like Raspberry Pi/Jetson Nano/Arduino/STM32/ESP32, etc.
Onboard voltage translator, compatible with 3.3V / 5V MCUs

Specifications

operating voltage: Raw display: 3.3V
interface: 3-wire SPI, 4-wire SPI
outline dimensions: Raw display: 37.32 × 31.8 × 0.85 (mm)
display size: 27.0 × 27.0 (mm)
DOT PITCH: 0.1125 × 0.1125 (mm)
RESOLUTION: 240 × 240 pixels
display color: E6 Full Color (E Ink Spectra 6)
grey scale: 2
full refresh time: 27s
refresh power: <40mW
standby current: <0.01uA (almost none)
viewing angle: >170°

Package Includes

1.54inch e-Paper Module (E) × 1
MX1.25 9PIN cable ~20cm × 1

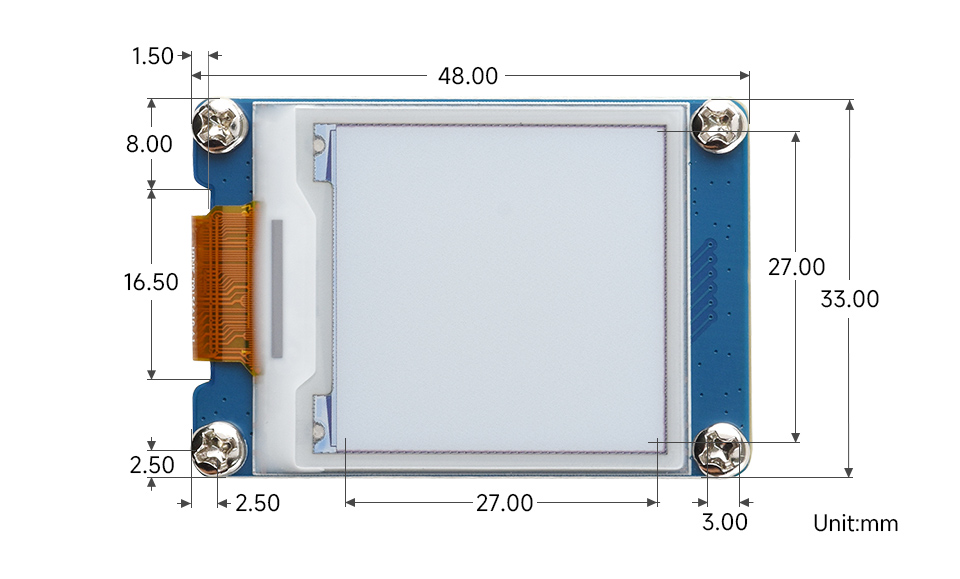

Dimensions
