Elecrow 2.8inch 240x320 ESP32 LCD Touch Display | With WiFi and BT/BLE

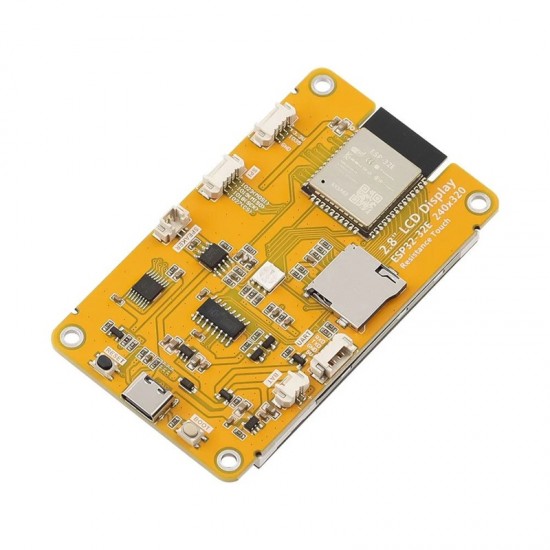

This 2.8” display is a high-performance development module that integrates the ESP32-WROOM-32E module, has powerful development capabilities and rich resources. It provides great convenience for developers. Its resolution is 240x320 and supports a rich color display of up to 262K colors (RGB666), ensuring clear images and bright colors. The module provides various interfaces, including SPI, UART, etc., so it is very convenient for connecting various peripherals to meet diverse development needs.

In addition, it supports external speakers to play audio, has its own RGB three-color indicator for rich status indication, and is also equipped with a resistive touch screen for convenient human-computer interaction. It uses a standard TYPE-C interface to facilitate program download and power supply, and comes with a micro TF card slot for easy expansion of storage space. It supports external lithium batteries, is lightweight and portable, and has a built-in battery charging management circuit to ensure safe battery charging and discharging. We also provide a wealth of sample programs and technical support to help developers get started quickly, suitable for smart home, industrial control and maker projects.

User Manual / Datasheet / Example Codes Etc.

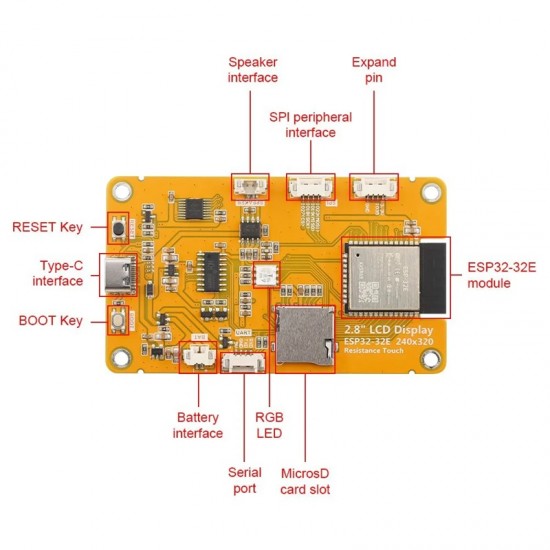

Features

Built-in ESP32-WROOM-32E module, main frequency up to 240MHz, excellent performance

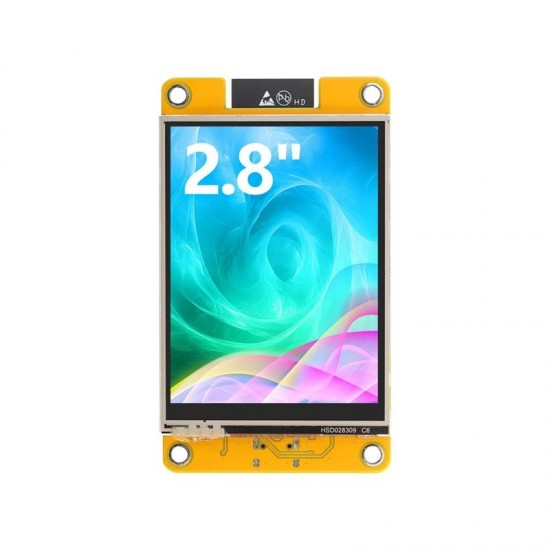

2.8-inch color screen, 240x320 resolution, support 262K colors (RGB666), rich display colors
Rich interfaces for connecting various peripherals (SPI, UART and other peripherals)
Support external speakers, play audio
Built-in RGB three-color indicator lights, rich indication status
Resistive touch screen comes with a pen
TYPE-C interface, convenient for program download and power supply
On board micro TF card slot, convenient for expanding storage
Support external lithium battery, lightweight and portable
Built-in battery charging management circuit to ensure safe charging and discharging of batteries

Specifications

Chip: ESP32-WROOM-32E
CPU: ESP32-D0WD-V3,Xtensa dual-core 32-bit LX6 microprocessor
Frequency: 240MHz(Max)
Memory: 48KB ROM+520KB SRAM+16KB RTC SRAM+4MB external QSPI Flash
WIFI: 2.4GHz and 802.11b/g/n modes
Bluetooth: Bluetooth V4.2BR /EDR and Bluetooth LE standards
Screen

Panel Size: 2.8 inch
Panel Type: TN TFT

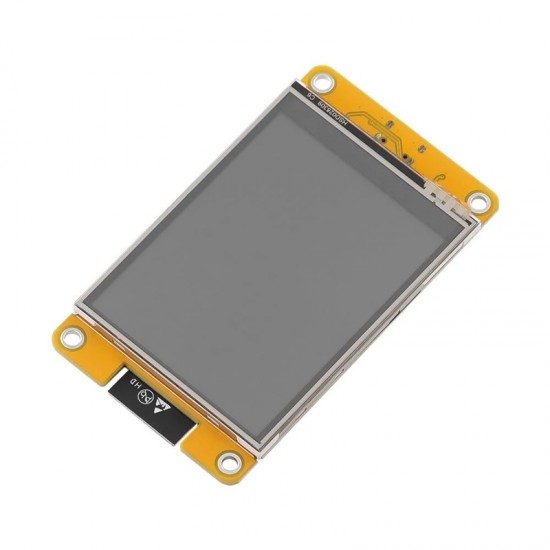

Touch Screen Type: Resistive touch screen
Resolution: 240xRGBx320(pixels)
Active Area: 43.20(W)x57.60(H)
Number of Colors
Max: 262K(RGB666)
Common: 65K(RGB565)
Display Driver IC: ILI9341V
Touch Driver IC: XPT2046
Communication Interface: SPI
Pixel Size: 0.153(H)x0.153(mm)
Brightness(TYP): 260 cd/m2
Backlight Type: White LED*4

Other

Charging Voltage
Range: 4.2 to 6.5V
Typical value: 5V
Working Voltage: 5.0V
Charging Current
Max: 500mA
Module Actual value: 290mA
Backlight Current: 75mA
Charging Saturation Voltage: 4.24V
Rechargeable Battery Spec: 3.7V polymer lithium battery(It doesn’t include the battery)
Power: 0.65W(Display only works)

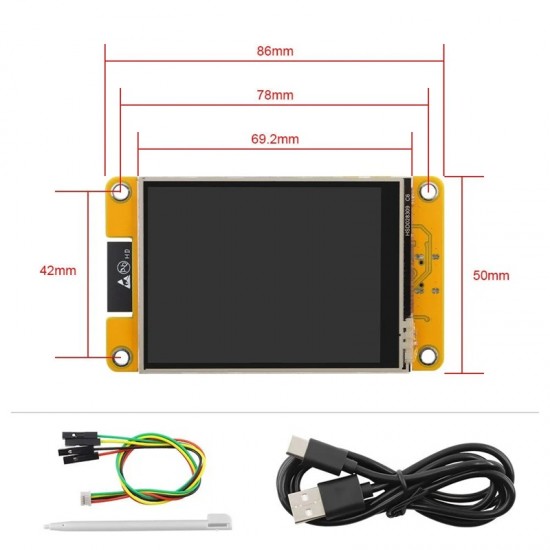

Module Size: 50.00(W)x86.00(H)x5.60(D)(mm)
Operating Temperature: -10~60℃
Storage Temperature: -20~70℃

Package Includes

1x 2.8 inch ESP32 LCD Module
1x Type-C Cable
1x 4Pin Cable
