ESP32-S3 2.8inch Capacitive Touch Display Development Board - 240x320 Pixles - IPS TFT Panel - 65K RGB Color - Wi-Fi and Bluetooth 5 - ST7789 Driver - JC2432W328C

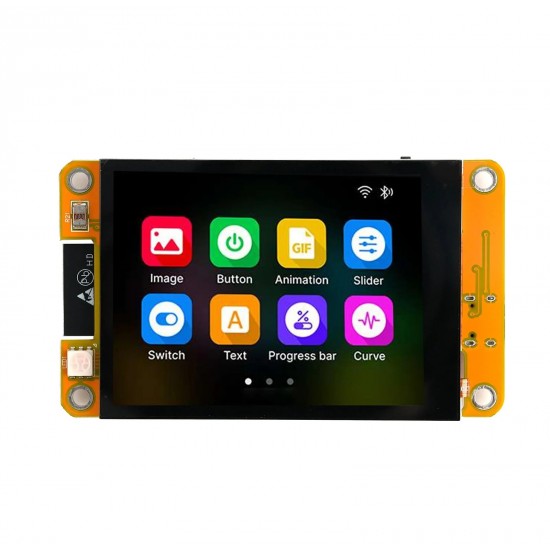

The ESP32-S3 2.8-inch Capacitive Touch Display Development Board is a compact and powerful solution designed for interactive HMI, IoT, and embedded display applications. It features a 2.8-inch IPS TFT panel with a 240 × 320 pixel resolution, delivering sharp visuals, wide viewing angles, and 65K RGB color support for vibrant user interfaces.

Powered by the ESP32-S3 microcontroller, this development board offers integrated 2.4GHz Wi-Fi and Bluetooth 5, enabling seamless wireless connectivity for modern IoT applications. The responsive capacitive touch panel ensures smooth and accurate touch input, making it ideal for control panels, smart devices, and portable interfaces.

The display is driven by the reliable ST7789 LCD controller, ensuring fast refresh rates and compatibility with popular development frameworks such as Arduino, ESP-IDF, and MicroPython. With its compact form factor and rich feature set, the ESP32-S3 2.8-inch display board is well-suited for both rapid prototyping and production-ready embedded projects.

Features

Powered by ESP32-S3 dual-core microcontroller for high-performance processing
2.8-inch IPS TFT display with wide viewing angles
Capacitive touch panel for smooth and responsive touch interaction
240 × 320 pixel resolution with 65K RGB color depth
Supports Wi-Fi (2.4GHz) and Bluetooth 5 (BLE) connectivity
ST7789 display driver for fast refresh and stable graphics
Compact and lightweight design ideal for portable applications
Supports development using Arduino, ESP-IDF, and MicroPython
Integrated display and touch controller simplifies system design
Suitable for HMI panels, smart home devices, IoT dashboards, and embedded control systems

Specifications

Model: JC2432W328C
MCU: ESP32-S3 (Dual-core Xtensa® LX7)
Wireless Connectivity:
Wi-Fi 802.11 b/g/n (2.4GHz)
Bluetooth 5 (BLE)
Display Size: 2.8 inch
Display Type: IPS TFT LCD
Resolution: 240 × 320 pixels
Color Depth: 65K RGB colors
Display Driver: ST7789
Touch Type: Capacitive touch panel
Interface: SPI
Operating Voltage: 3.3V logic
Power Supply: 5V via USB / external input
Operating Temperature: –20°C to +70°C (typical)
Applications: HMI interfaces, IoT devices, smart controllers, embedded UI systems

Package Includes

1x ESP32 2.8" TFT HMI LCD Display Module
1x Cable
